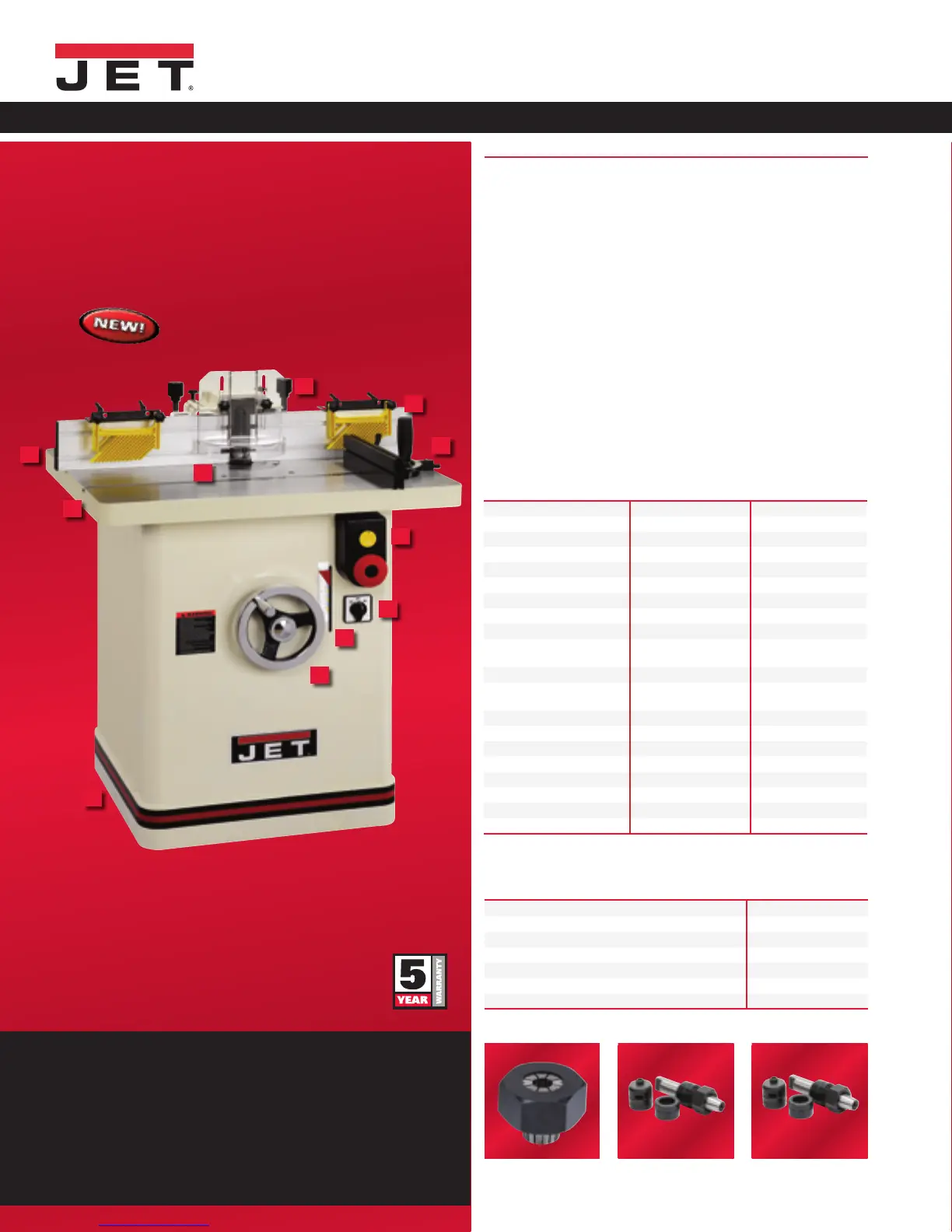

Features
Four speeds 4000, 6000, 8000, 1000 RPM let you select the best
•
speed and torque for different cutter diameters
Independently adjustable left and right fences, standard with a micro
•
adjust control for precise positioning
Large 26-3/4” X 32-1/4” precision ground cast iron table provides a
•
durable work area, predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle
•
Extruded aluminum fence comes with T-Slots and 2 feather board
•
hold-downs
Reversible spindle speeds for diverse shaping jobs
•
Powerful 3HP, 1Ph, 5HP, 1Ph or 5HP, 3Ph motor with magnetic controls
•
Starting pins for irregular shaping
•
Extra large chrome handwheel is conveniently located for fast, easy
•
and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust
•
collection system
Spindle lock for safe and easy cutter set up
•
Spindle height scale
•
speCiFiCatiOns
Stock Number
708323 708326
Model Number
JWS-35X3-1 JWS-35X5-1
Spindle Speed (RPM)
4000, 6000, 8000, 10,000 4000, 6000, 8000, 10,000
Spindle Diameter (in.)
1-1/4 1-1/4
Spindle Size Under Nut (in.)
4 4
Spindle Travel (in.)
4 4
Table Size (in.)
26-3/4 x 32-1/4 26-3/4 x 32-1/4
Table T-Slot (in.)
Yes Yes
Table Opening Diameter (in.)
7-1/4 7-1/4
Table Insert Opening
Diameter (in.)
2-5/8, 4-7/8 2-5/8, 4-7/8
Fence Size (2) (L x H/in.)
4-3/4 x 16 4-3/4 x 16
Router Bit Collet Diameter
(in.)
1/4, 1/2 (optional) 1/4, 1/2 (optional)
Table Height From Floor (in.)
33-1/4 33-1/4
Dust Port Diameter (OD/in.)
4 4
Amps
14 17
Motor HP
3HP 5HP
Motor Phase
1Ph 1Ph
Motor Voltage
220V 230V
Prewired
220V 230V
Net Weight (lbs.)
473 473
OptiOnal aCCessOries
30mm Spindle for JET 35X Shaper
708372
1/2" Spindle for JET 35X Shaper
708381
3/4" Spindle for JET 35X Shaper
708317
1" Spindle for JET 35X Shaper
708314
1-1/4" Spindle for JET 35X Shaper
708328
1/4" Collet for JET 35X Shaper
708373
1/2" Collet for JET 35X Shaper
708374
708382 708328 708317
A
B
C
D
E
F
G
H
I
J
L
K
Features
Two speeds let you select the best speed and torque for different
•
cutter diameters
Independently adjustable left and right fences, standard with a micro
•
adjust control for precise positioning
Large 25” X 25-1/2” precision ground cast iron table provides a
•
durable work area, predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle
•
Extruded aluminum fence comes with T-Slots and 2 feather board
•
hold-downs
Reversible spindle speeds for diverse shaping jobs
•
Powerful 3HP, 1Ph motor with magnetic controls
•
Starting pins for irregular shaping
•
Extra large chrome handwheel is conveniently located for fast, easy
•
and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust
•
collection system
Spindle lock for safe and easy cutter set up
•
Spindle height scale
•
OptiOnal aCCessOries
1" Spindle for JET 25X Shaper
708318
30mm Spindle for JET 25X Shaper
708382
1/4" Collet for JET JWS-25X Shaper
708383
1/2" Collet for JET JWS-25X Shaper
708384
speCiFiCatiOns
Stock Number
708309
Model Number
JWS-25X
Spindle Speed (RPM)
7500 and 10,000
Spindle Diameter (in.) (Standard)
1/2 and 3/4
Spindle Size Under Nut (in.)
1/2 (2-13/64) and
3/4 (3-3/16)
Spindle Travel (in.)
3
Table Size (in.)
25 x 25-1/2
Table T-Slot (in.)
3/4 x 3/8
Table Opening Diameter (in.)
6-9/32
Table Insert Opening Diameter (in.)
2-9/16 and 4-21/64
Fence Size (2) (L x H/in.)
14-1/2 x 4-3/4
Router Bit Collet Diameter (in.)
1/4 and 1/2 (optional)
Table Height From Floor (in.)
33
Dust Port Diameter (OD/in.)
4
Amps
16
Motor HP
3HP
Motor Phase
1
Motor Voltage
230V
Prewired
230V
Net Weight (lbs.)
331
708318 708382 708384
Independently Adjustable Left a.
and Right Extruded Aluminum
Fence with T-Slots
Featherboard Hold-Downsb.
Miter Gaugec.
Magnetic Controls With d.
Mushroom Step Button
Reversible Stop Button Switche.
Spindle Height Scalef.
Large Chrome Wheelg.
Heavy-Duty One Piece Steel h.
Stand
Large 26-3/4" X 32-1/4 Precision i.
Ground Cast Iron Table
Predrilled for Powerfeederj.
Polycarbonate Guardk.
Polycarbonate Guarda.
Fence Lock Knobsb.
Adjustable Featherboard c.
Hold-Downs
Starter Pind.
Arbor Locke.
Spindle Height Lock Handlef.
Spindle Height Scaleg.
Spindle Speed Viewing Windowh.
Spindle Height Adjustment Wheeli.
Forward/Reverse Switchj.
Magnetic Controlsk.
Independently Adjustable Left and l.
Right Extruded Aluminum Fence
with T-Slots
