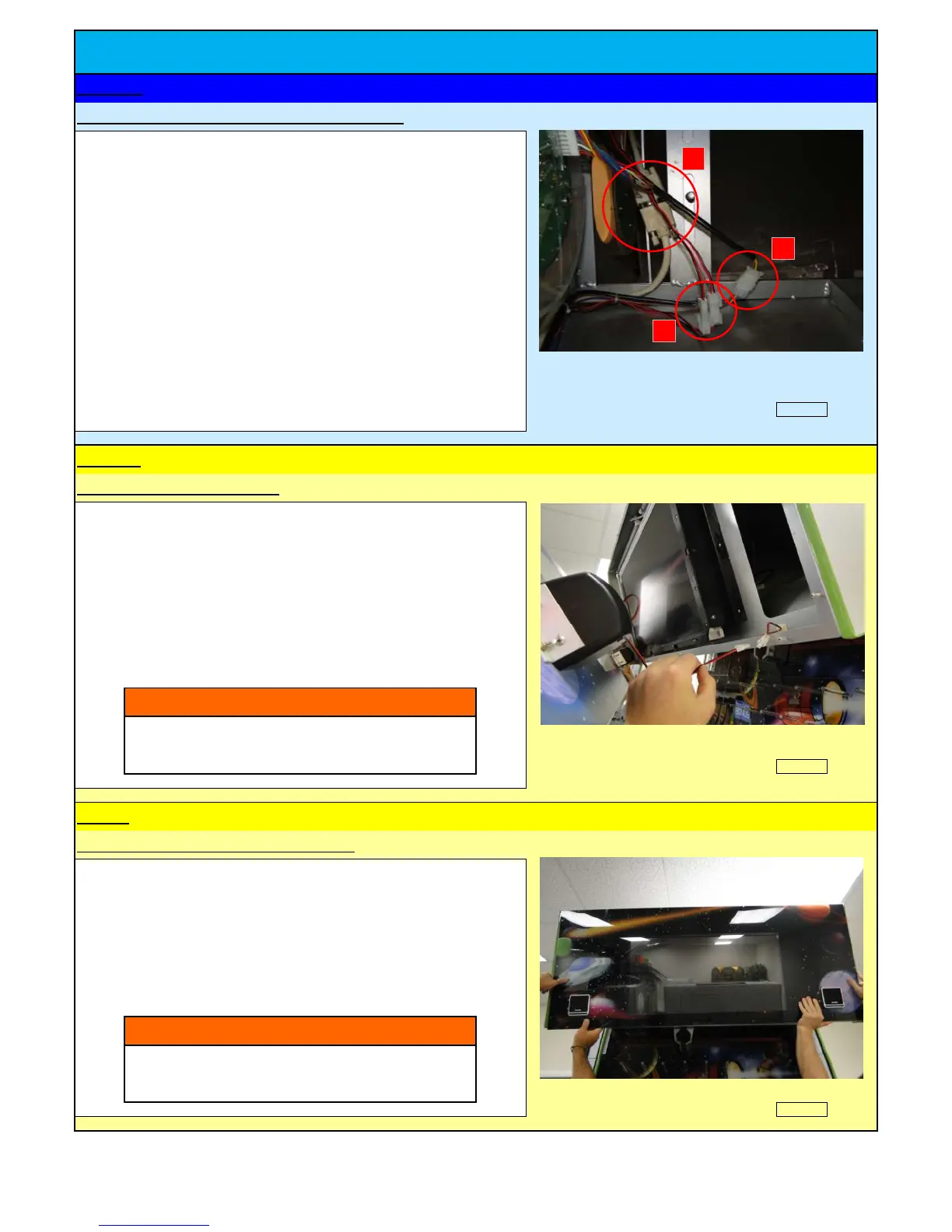

Jet SPACE BALLZ - Page 28

1) Connect the monitor VGA Cable. Note: In some units - this cable
might be a HDMI cable.
2) Connect the 110 Volt (OR) 220 Volt three pin LED Light harness.
3) Connect the two pin left and right speaker connectors.
USE TWO PEOPLE TO ATTACH THE ACRYLIC
MARQUEE
Check Box When This Step is Complete
Step # 8
Secure the Acrylic Marquee to the Cabinet
Use the screws you took out of the marquee earlier and replace
them into the holes securing the acrylic to the cabinet
WARNING
USE TWO PEOPLE TO ATTACH THE ACRYLIC
MARQUEE
Check Box When This Step is Complete
Step # 7-K
Connecting Upper Left Cabinet Wires - Section # 4
Check Box When This Step is Complete
Step # 7-L
Connecting the Speaker Cables
Insert the two pin Molex connector(s) in the left and right speakers
on the acrylic marquee.
WARNING
INSTALLATION INSTRUCTIONS
1
3
2
Jennison Entertainment Technologies Space Ballz Service Manual Page 28
