PAGE 37 of 54

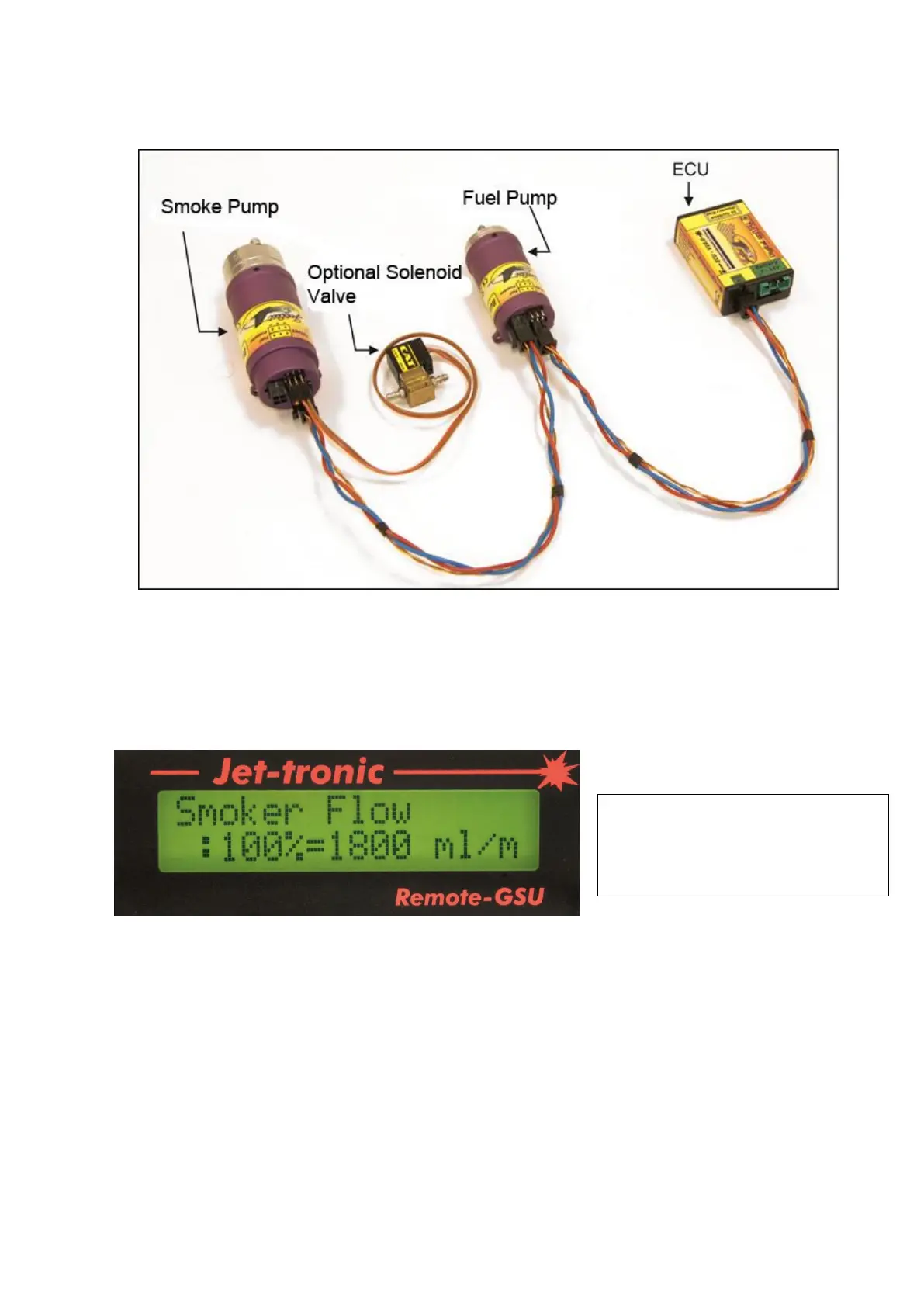

The smoke flow can be set up by the

Limits Menu – Smoke Flow.

Press the Change Value key and

change the value by pressing the “-“

and “+” key
