17

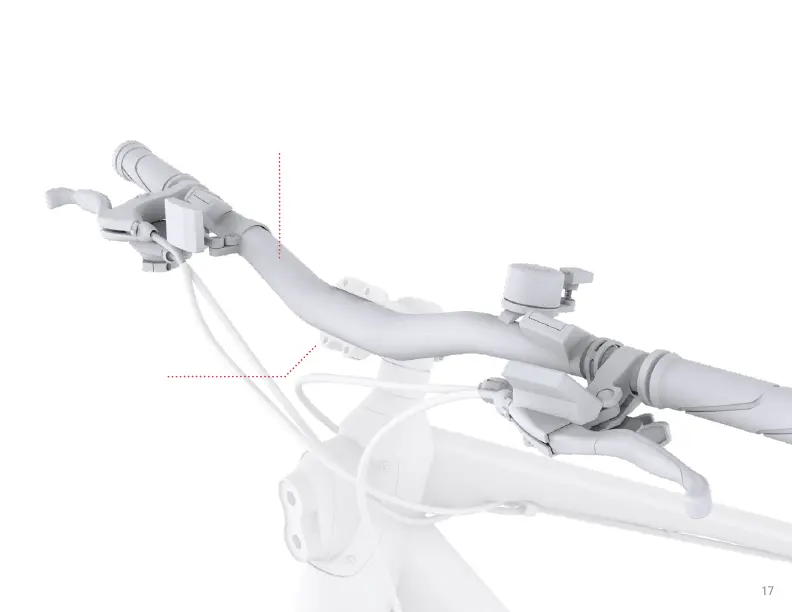

4. LIFT THE HANDLEBAR ONTO THE CLAMP BASE AND POSITION IT SUCH THAT IT IS:
• NESTLED INTO THE CURVED BOTTOM OF THE CLAMP.
• ORIENTED WITH THE LCD SCREEN ON THE LEFTHAND SIDE OF THE HANDLEBAR.
• CENTERED AND BALANCED IN THE CLAMP.
HANDLEBAR
CLAMP BASE
