Jetson Adventure 2.0 2022 - 1.2 Attaching the Front Wheel

18

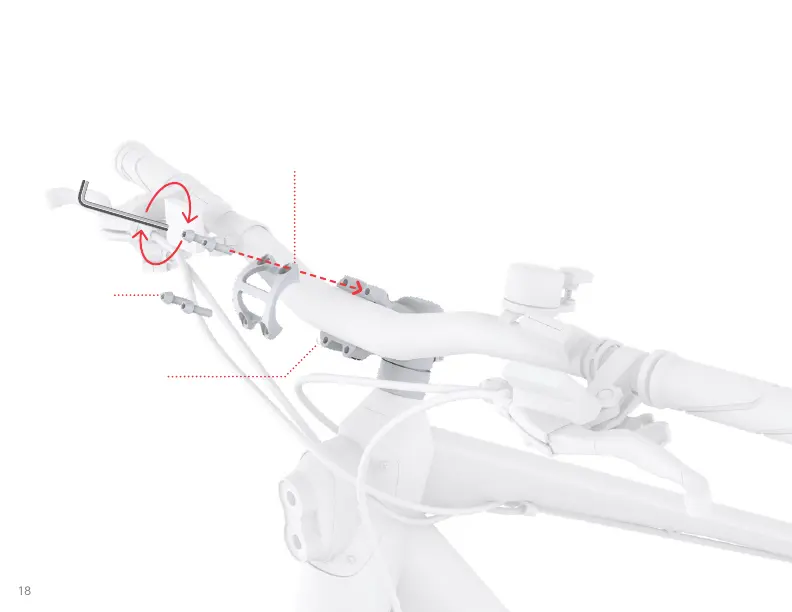

5. PLACE THE CLAMP COVER ONTO THE CENTER OF THE HANDLEBAR SUCH THAT:
• THE 4 HOLES IN THE COVER ARE ALIGNED WITH THE FOUR HOLES IN THE CLAMP BASE.
• THE COVER IS SNUG OVER THE CURVE OF THE HANDLEBAR.
6. REINSERT THE 4 SCREWS INTO THE 4 HOLES ON THE FRONT OF THE CLAMP COVER. WHILE HOLDING THE HANDLEBAR
AND CLAMP COVER IN POSITION, TIGHTEN THE SCREWS BY ROTATING THEM CLOCKWISE WITH THE ALLEN KEY.
SCREWS
CLAMP COVER
CLAMP BASE
