5. ROTATE THE BRAKE TOWARDS THE TIP OF THE FORK UNTIL THE HOLES IN THE BRAKE COVER PANEL AND BRAKE ARM
FROM WHICH YOU JUST REMOVED THE BOLT ARE ALIGNED WITH THE BRAKE ANCHOR SPACE IN THE FORK. ENSURE THAT
THE BRAKE COVER PANEL AND BRAKE ARM ARE ON THE INNER SIDE OF THE FORK.
6. FROM THE HARDWARE YOU JUST REMOVED, FULLY SLIDE THE WASHER ONTO THE BOLT. FROM THE OUTSIDE OF THE
FORK, INSERT THE END OF THE BOLT THROUGH BRAKE ANCHOR SPACE AND THEN THE HOLES IN THE BRAKE COVER
PANEL AND BRAKE ARM.
7. FINGERTIGHTEN THE NUT ONTO THE END OF THE BOLT BY TWISTING IT ON CLOCKWISE.
8. HOLD THE NUT STEADY WITH THE 8MM WRENCH WHILE YOU FULLY TIGHTEN THE BOLT INTO IT BY TURNING IT
CLOCKWISE WITH THE SCREWDRIVER.
9. CHECK THAT THE BRAKE MECHANISM IS SECURELY ATTACHED TO THE FORK.

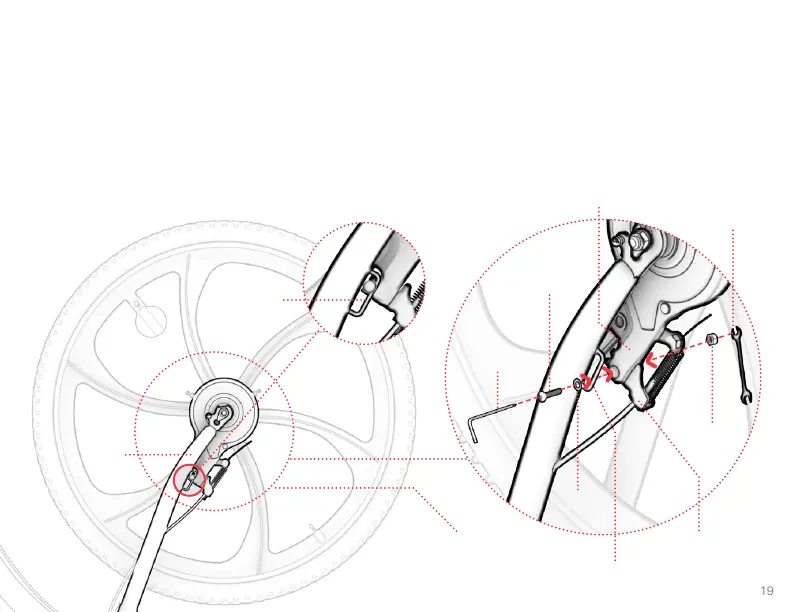

BRAKE MECHANISM
BOLT
SCREWDRIVER
FRONT FORK
BRAKE ANCHOR
SPACE
8 MM
WRENCH
BRAKE ARM
BRAKE COVER PANEL
WASHER
BRAKE ANCHOR SPACE
NUT
