11

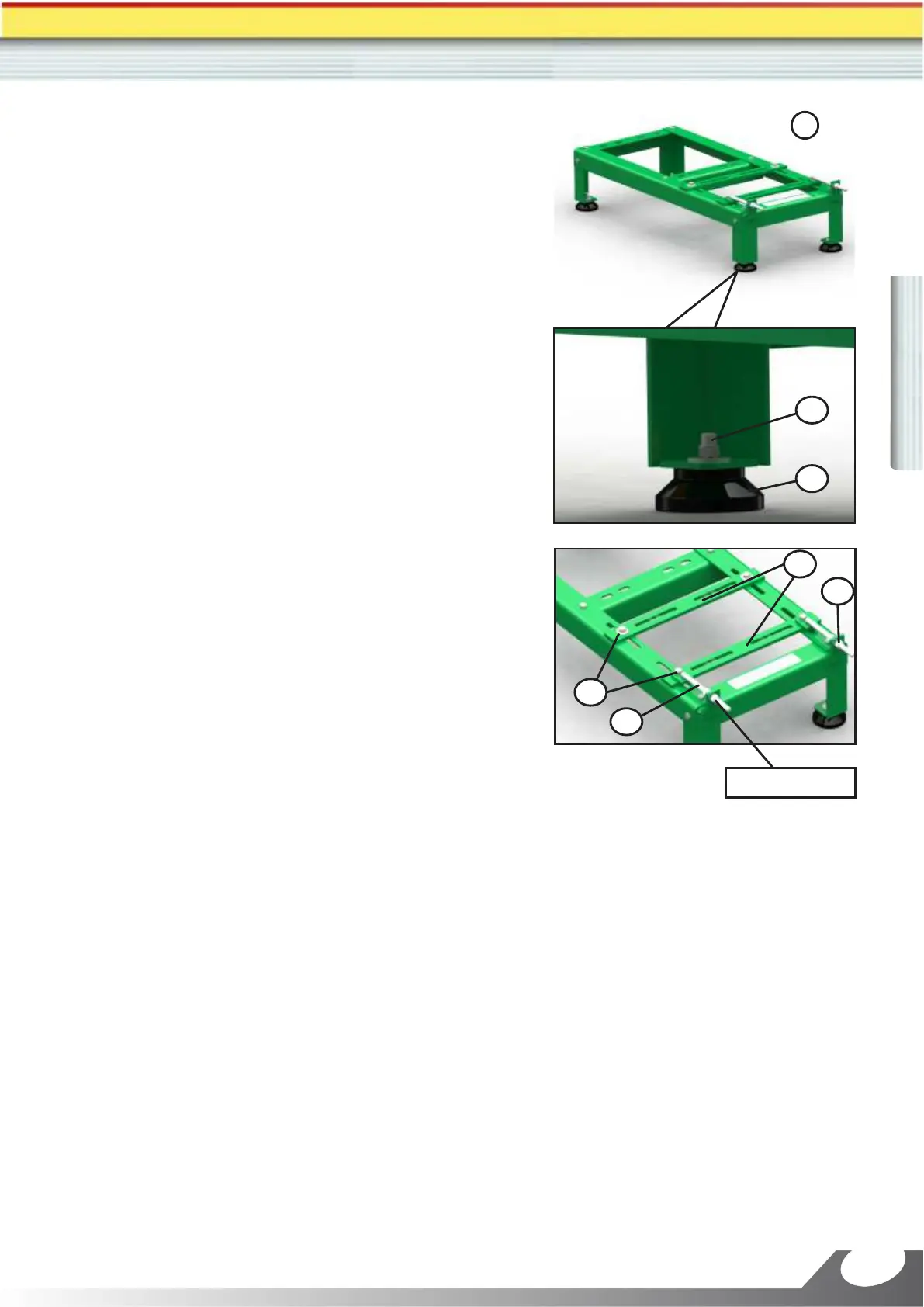

Rack (3)
If the rack (3) is disassembled, assemble it according
next steps.
a) Assemble the rubber cushion (3a) according detail
below, using the bolts (3b) + plain washer + spring
washer + nut.
b) Assemble the rails (3c) on illustrated position aside,
using a bolt on each side (3d) + two plain washers + one
nut.
c) Install the spindles (3e) according the picture, using
three nots (3f) on rear part.
NOTE: All the bolts, nuts and washers used in that
assembly which follow the machine.
3
3a
3c
3f
3d
3e
3b
1 outher nuts
OPERATION TECHNICAL MANUAL - FORAGE CHOPPER JF 40P
