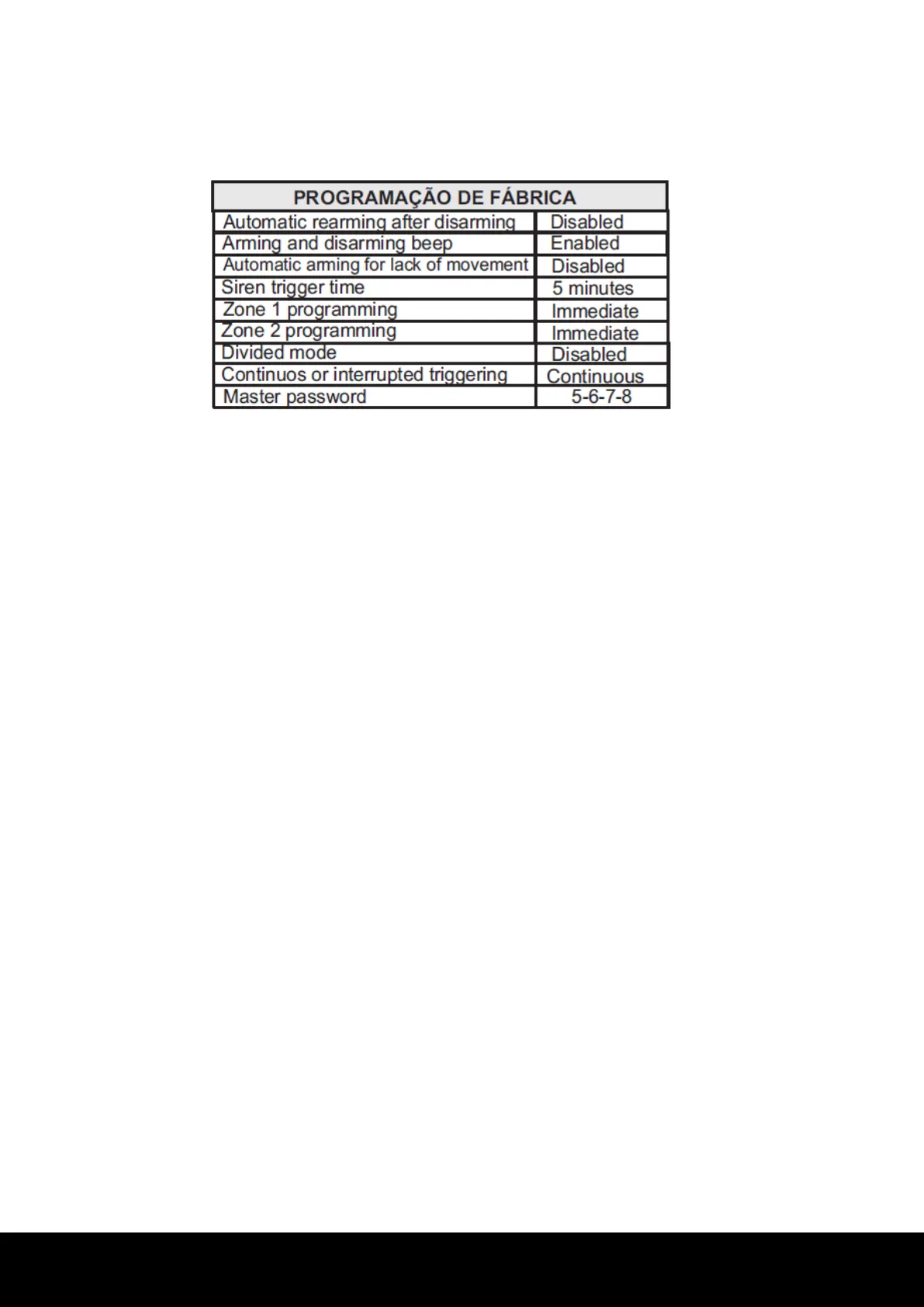

3-For a partial reset, release the aprender button while the LED is flashing (from 0 to 5
seconds).
4-For a total reset, release the aprender button only when the LED stops flashing (time of 10 seconds). Obs.: The
reset does not erase the memory of the remote controls, wireless sensors, and bus sensors.
15 INSTALLATION
To install the central unit, choose a discrete location, out of the view of strange persons, and
attach it to the wall. All the wiring used for the installation of sensors and sirens must be welded
on the splices.
To install the sensors on doors and windows, one must take care that the distance between the
magnet and the sensor does not surpass 5 mm. When installing an infrared sensor, verify if the
location does not have an opening through which animals may enter, given triggers may occur.
The infrared sensor must not be installed facing glass doors and walls, plants such as ferns, and
locations with great air circulation.
16 TECHNICAL CHARACTERISTICS
- Supply Voltage: 127/220 Vc.a. - 60 Hz - 12 Vc.c. Battery
- Consumption: 5 W equivalent to 3.6 kWh /month (Obs.: The consumption may reach 10 W
in case the battery is discharged)
- Battery charger voltage: 13.8 Vc.c. +or- 10%
- Dimensions: 295 x 235 x 120 mm
- Gross weight (without battery): 1 Kg
- Maximum current supplied by the siren out (SIR): 200 mA
- Maximum current supplied by the siren out + auxiliary out: 300 mA
- Maximum current supplied by the PGM: 12 Vc.c. / 3 A or 127/220 Vc.a. / 2 A
-Maximum load: 12 Vc.c./ 3 A or 127-220 Vc.a. / 2 A.
-It is recommended the use of a sealed 12 Vc.c. / 7 Ah battery for powering in the lack of
electrical power (does not accompany the central unit).
