tool holder is installed.
(5) Turn on the valve of “air return” and pressurize it for 5s. Then
turn it off.
(6) Now that’s all for a whole step of tool changing.
(7) Turn on the valve of “air inlet” once again, the initially
installed tool holder will be released.

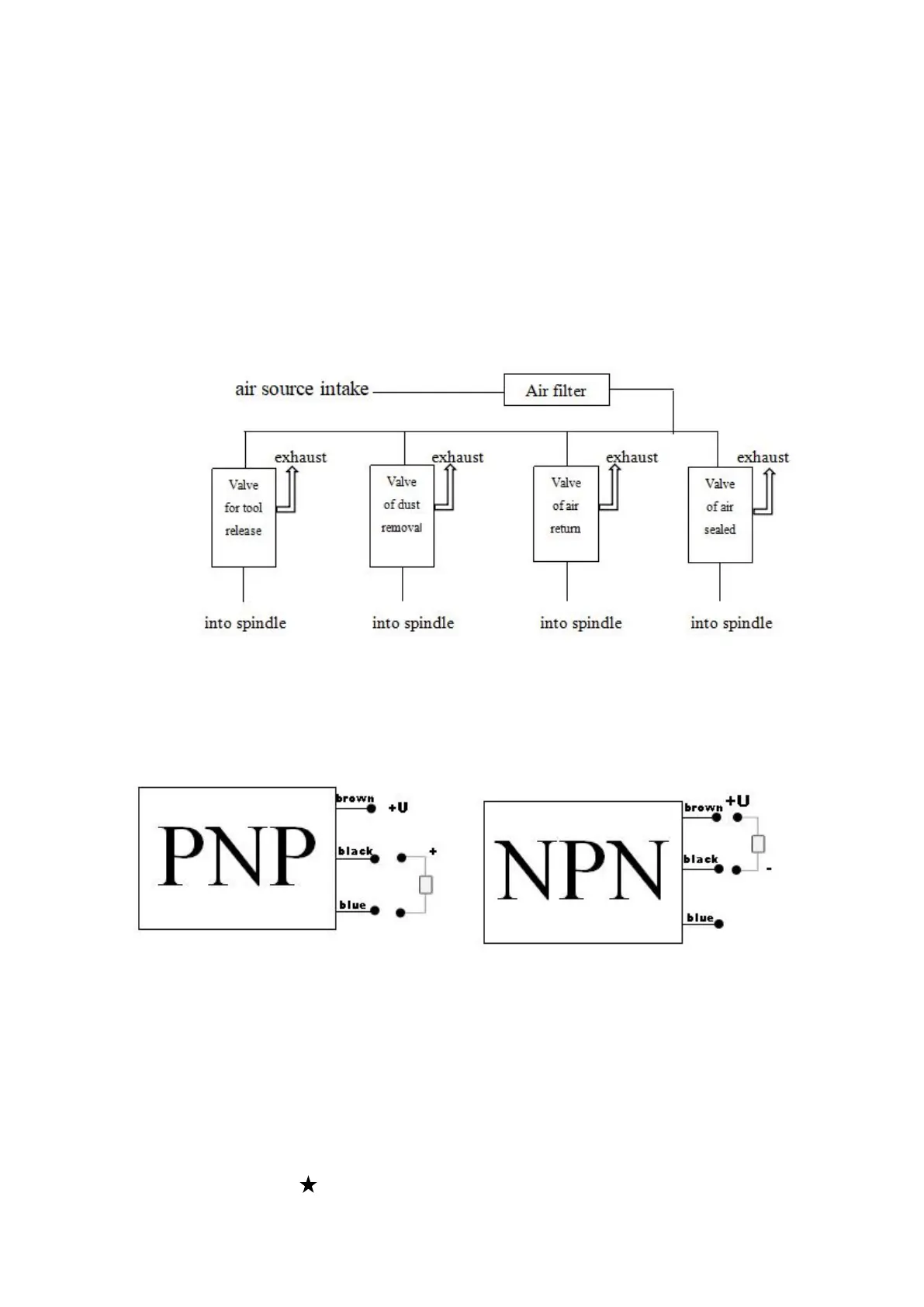

(8) A diagram of air connection:
2. 6、Sensor connection & operation
Without your specifications in advance, we offer PNP type of sensor
for the spindle. If NPN is needed, please specify in advance.
brown wire U 10-30V DC brown wire U 10-30V DC
I 200mA max I 200mA max
black wire positive voltage output black wire negative voltage output
blue wire 0V blue wire 0V
Turning on “air inlet” will have the clamp inside the spindle cone
