Jianken JGL-80/2.2R24-20 User Manual

Service hotline ： +86 523-84385453
- 9 -
3.JGY Permanent magnet synchronous pneumatic tool
change spindle
JGY motor spindle is made on the basis of pneumatic tool change
spindle. The rotor is with permanent magnetic material, while the stator
winding is redesigned; with inductive encoder inside, the speed can be
controlled precisely both in clockwise and anti clockwise motion.
Compared to the same size of other spindles, it’s characteristic of high
power and high torque at low speed, with the function of drilling, tapping,
milling, etc.

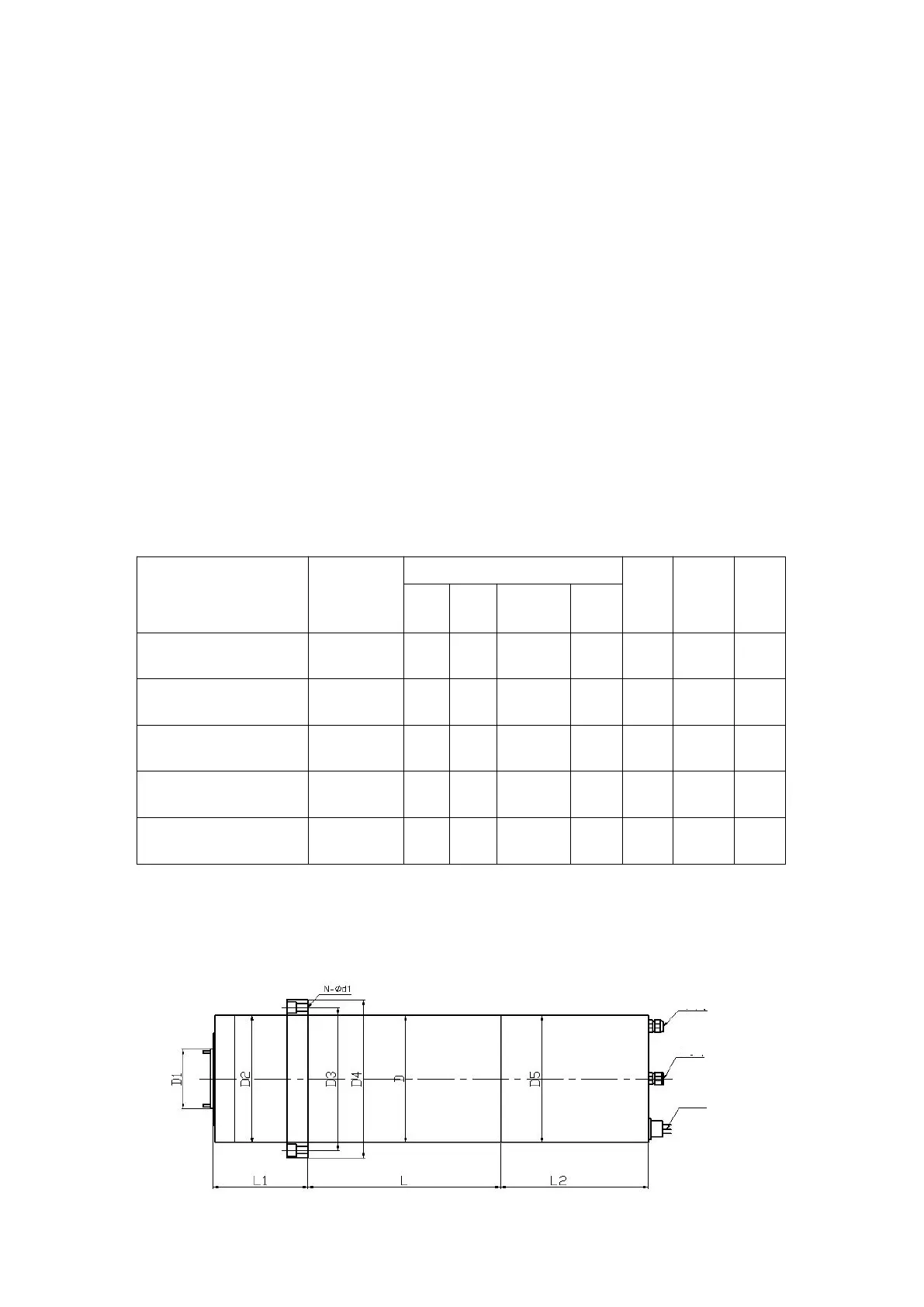

3.1 Specifications
3. 2 Overall dimension
Model
speed(r/min)
Motor parameters
Lub
mode
Inter
face
cool
Power
(kW
Volt
(V)
Freq
(HZ)
Cur
(A)
JGY-80/3.7R24-ISO20
24000~30000
3.7
380
800~1200
6
grease
ISO20
water
JGY-100/5.5R15-24-BT30
15000~24000
5.5
380
500~800
10.5
grease
BT30
water
JGY-110/7.5R12-24-BT30
12000~24000
7.5
380
400~800
13
grease
BT30
water
JGY-120/10R13-24-T30
13000~24000
10
380
433~800
21
grease
BT30
water
JGY-150/15R7.5-20-T40
7500~20000
15
380
250~667
30
grease
BT40
water
Cooling water
Air inlet
Power cable
