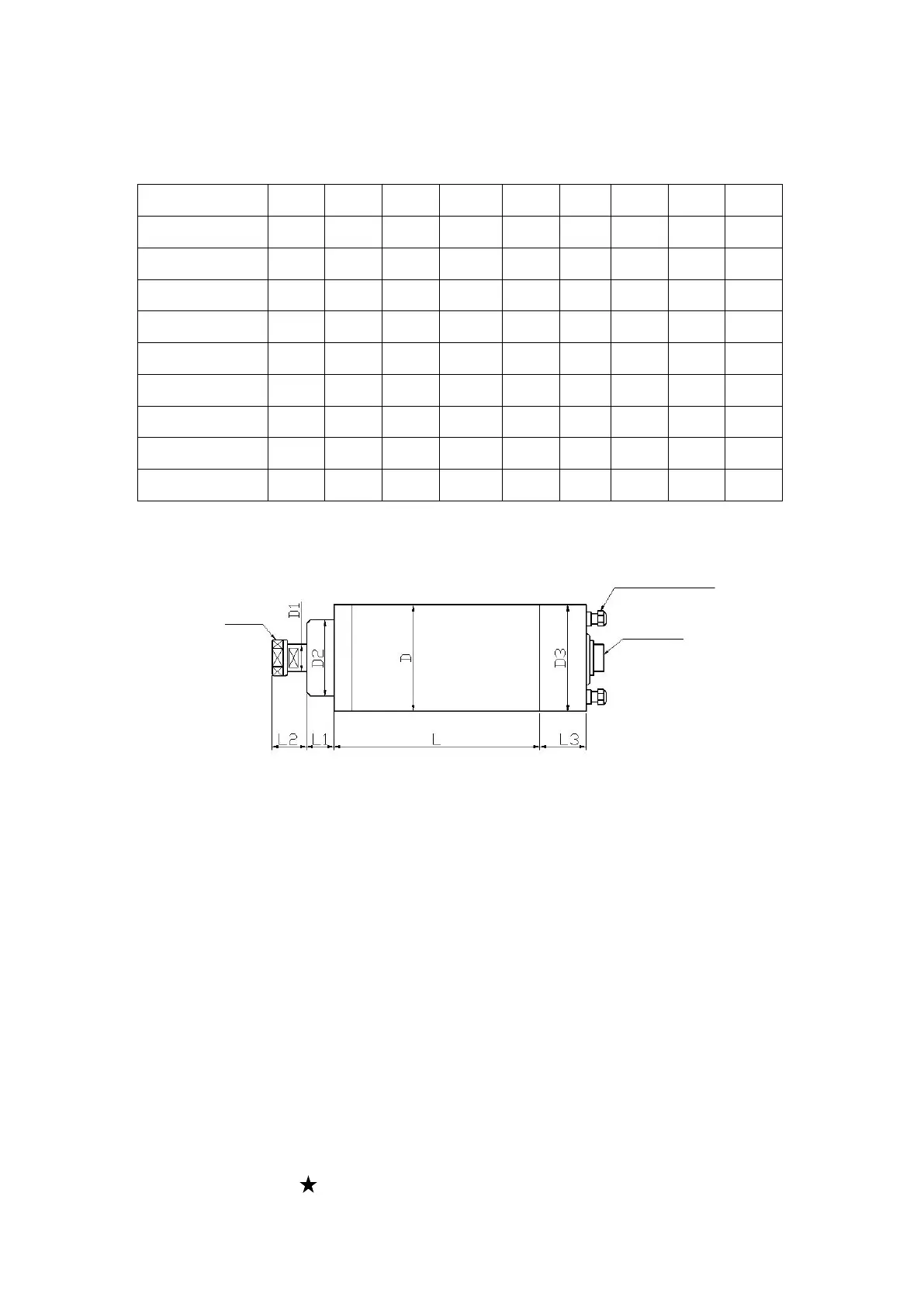

JGH overall dimensions
model
ΦD
ΦD1
ΦD2
ΦD3
ΦD4
L
L1
L2
L3
JGH-80/1.5
80
24
60
79.9
8
190
18
28
29
JGH-85/1.8
85
24
60
84.9
8
212
26
29
29
JGH-105/2.2
105
24
78
64
8
222
21
29
40
JGH-105/3.0
105
24
78
64
8
242
25
30
40
JGH-125/4.2
125
34
94
90
10
249
43
32
42
JGH-125/5.5
125
34
96
90
10
262
72
32
42
JGH-136/5.5
136
42
106
135.9
10
303
76
32
46
JGH-136/7.5
136
42
106
135.9
10
303
76
32
46
JGH-150/11
150
48
115
149.8
10
310
51
46
49
ER collet
Dia of water tube D4
Power plug
