Quickly shift back and forward the 5
th
channel before the fight controller is armed,
and then it will enter compass calibration mode. The solid yellow light indicates it is

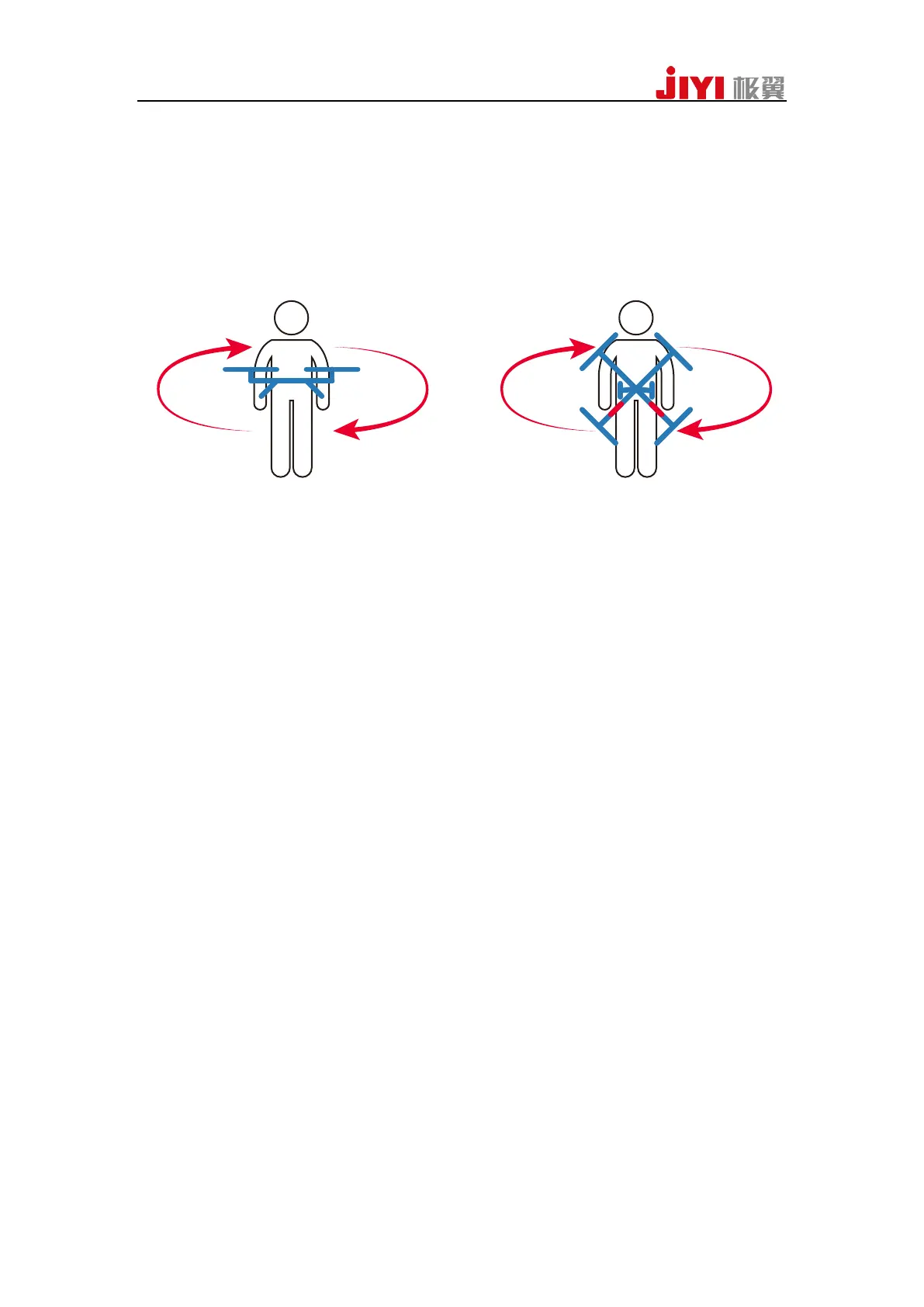

in horizontal calibration. Place aircraft horizontally at the moment, and do clockwise
rotation around the axis along with the gravity direction. When the LED green light is
solid on, it enters in vertical direction calibration. Put the nose face-down, rotate the
aircraft round the axis along with the gravity direction until the LED red light, green
light and yellow light blink alternately, and that indicates calibration is completed.
After calibration is completed, it will exit from calibration mode automatically,
LED indicatorblinks normally.
Attentions:
When the flight field changes, you need to calibrate magnetic compass.
Before calibration, please check whether there’s strong magnetic interference
nearby or not.
5.3.4 Motor Test
Motor test function includes motor sequence test and movement direction test. It
is mainly used to inspect whether the installation sequence number and rotation
direction of motor are correctly or not . It can avoid the error installation and
prevent
accident from happening.
1、Motor Sequence Test
When the aircraft is disarmed, push the LH stick of the remote controller as ↙
and make the RH stick to do anti-clockwise circling (American style remote
controller), and then the motor sequence testing is triggering. Motors will start idling
spinning in sequence from No.1 motor to No.8 motor.
Japanese style remote controllers: 1. push the LH stick on the remote controller as
↙ and push the RH stick as ↘, keep them in the position. 2. And then push
sequentially the LH stick as ↖, the RH stick as ↙,the LH stick as ↙, the RH stick as
↘. The left rod sha
ll be maintained at the most left side and the right rod shall be
maintained at the most downward side during you push the sticks. Repeat the 4 stick
pushing actions in the 2
nd
step in sequence, the motor sequence test will be triggered.
Attention: Under normal conditions, motor sequence test can be triggered after one
time stick pushing action . But if the sticks are pushed in wrong positions, the motor
sequence test can only be triggered after repeating the 4 stick pushing actions in step
