JIYI K3-A - Setup Wizard; Wiring Diagram

JIYI Robotics CO. Ltd
6
3. Setup Wizard
3.1 Aircraft Types

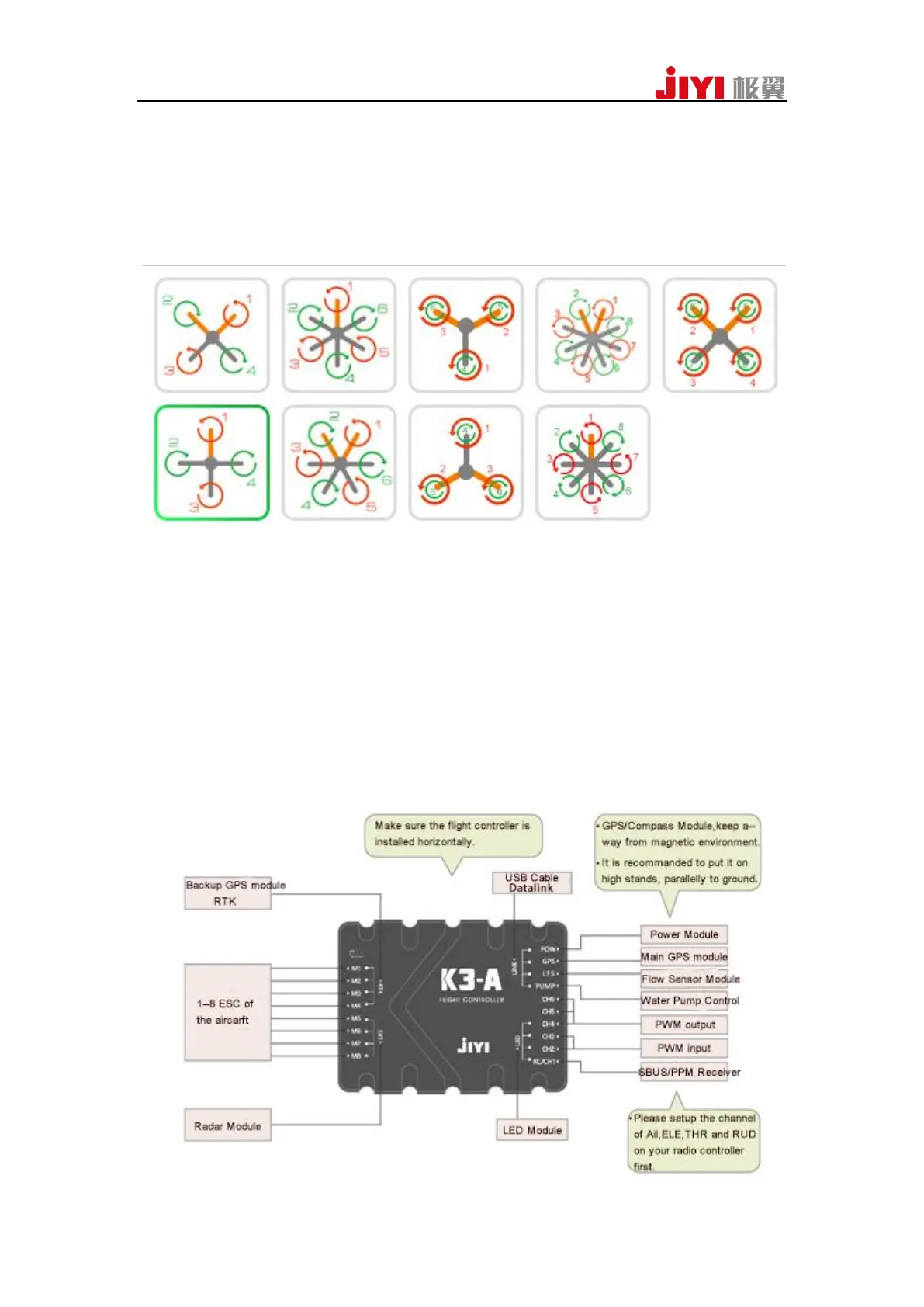

Supported Aircraft Types are showing in the following figures:
Notes :
(1) It uses the yellow arms to show the nose direction;
(2) Those marked numbers matches the input ports M1 to M8 of FCU;
(3) The upper propellers of coaxial multicopter indicates by green and the lower
indicates by red.
3.2 Wiring Diagram
3.2.1 Instruction of Ports
