IMPORTANT! PLEASE REFER TO THE “SYSTEM CONNECTION DIAGRAMS”
ON PAGES 22-25 FOR MORE INFORMATION ON USING THE INPUT / OUTPUT
CONNECTIONS.

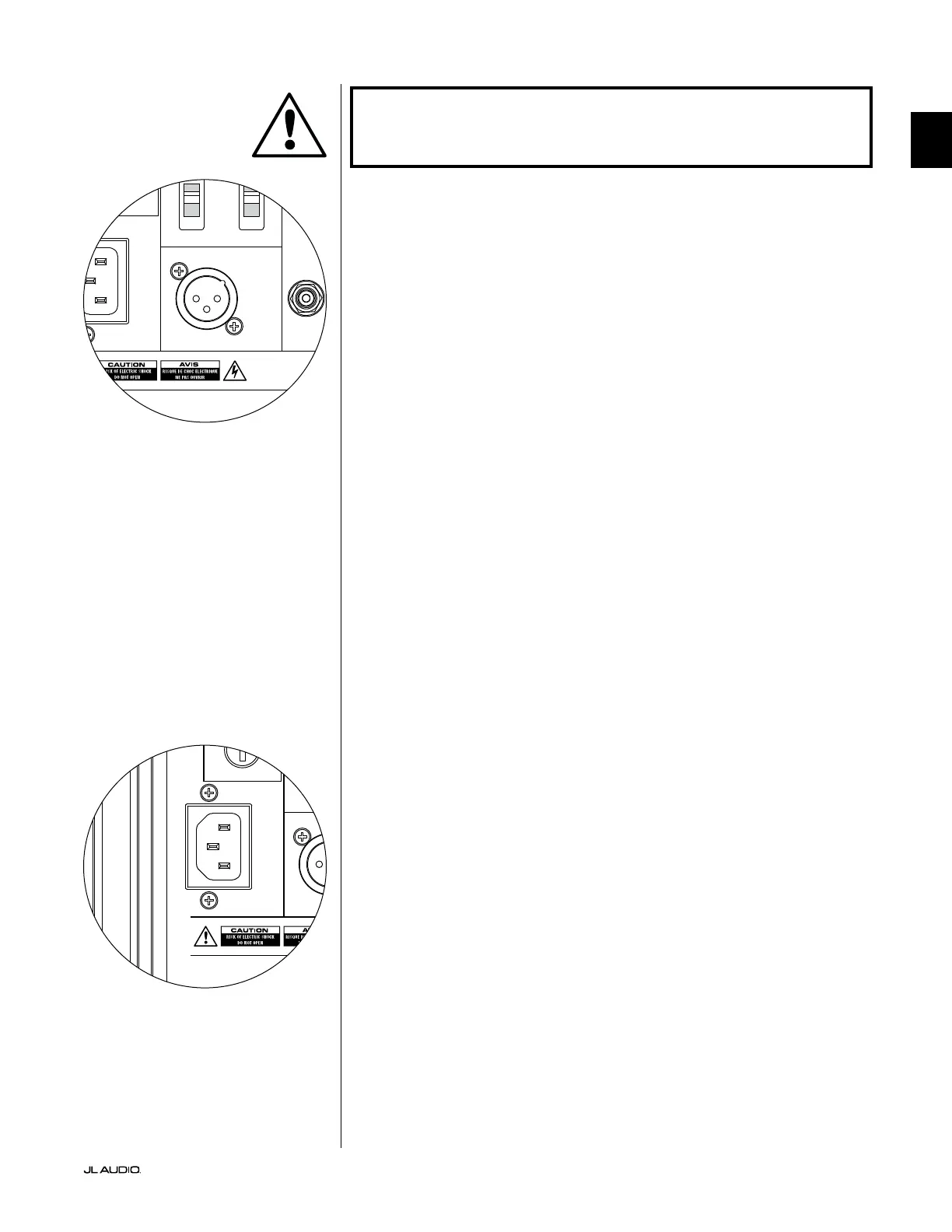

“Output to Slave” Connector
If you are operating more than one Fathom v2 subwoofer in one home theater
system, you will designate one Fathom v2 as the Master (see page 20), and then
feed signal from it to the remaining “Slave” Fathom v2s via this balanced XLR
output. e “Output to Slave” cable can be connected to the “Le or Mono”
balanced XLR input on the next Fathom v2. When a Fathom v2 is in “Slave”
Mode, its “Output to Slave” connection can be used to pass signal to further
Fathom v2s operating in “Slave” mode.
e “Output to Slave” connector is designed to be used as follows:
1) From the “Master” Fathom v2’s “Output to Slave” connector to the rst
“Slave” Fathom v2’s “Le or Mono” XLR balanced input.
2) From the rst “Slave” Fathom v2’s “Output to Slave” connector to the
second “Slave” Fathom v2’s “Le or Mono” XLR balanced input.
3) From the second “Slave” Fathom v2’s “Output to Slave” connector to the
third “Slave” Fathom v2’s “Le or Mono” XLR balanced input. Etc, etc. (up
to ten Fathom v2s may be connected in this conguration). Appropriate
balanced cables with XLR terminations are available from your JL Audio
dealer and are not included with the Fathom v2.
Technical Notes:
• e “Output to Slave” signal carries any signal processing selected on
the Master Fathom v2 (including the Master Level setting and D.A.R.O.
processing) to further Fathom v2s operating in “Slave” mode.
• From Fathom v2s operating in “Slave” mode, the “Output to Slave” signal is
an exact, buered replica of the balanced input signal, making this method
of signal distribution preferable to using Y-adapters or splitters.
• Use only shielded, connection cables with high quality XLR connectors for
Master/Slave connection. Never use unbalanced cables with adaptors.
IEC-Style AC Power Connector
e IEC-style AC cord receptacle receives the heavy-gauge, 6 . (1.8 m) long,
power cord included with your Fathom v2 subwoofer. Fathom v2s sold in dierent
parts of the world are congured for each market’s electrical system and include
appropriate plugs on their power cords. Please note the voltage markings next to
the AC connector and make sure you are only powering your Fathom v2 from
a receptacle that matches these markings. Do not use any AC power cord other
than the one supplied with the Fathom v2. For information about the Main Fuse
Holder, please see the Troubleshooting section of this manual.
e Fathom v2 subwoofer is a very powerful device and can draw a lot of
current. If too many components are connected with a Fathom v2 subwoofer
to one electrical outlet, you risk tripping a household circuit breaker during
very demanding program material. If this happens, split the Fathom v2 and
other components between two AC electrical circuits. If possible, for maximum
performance, dedicate an AC circuit to each Fathom v2.
