EN | Pg 22
|
Fathom
®
v2

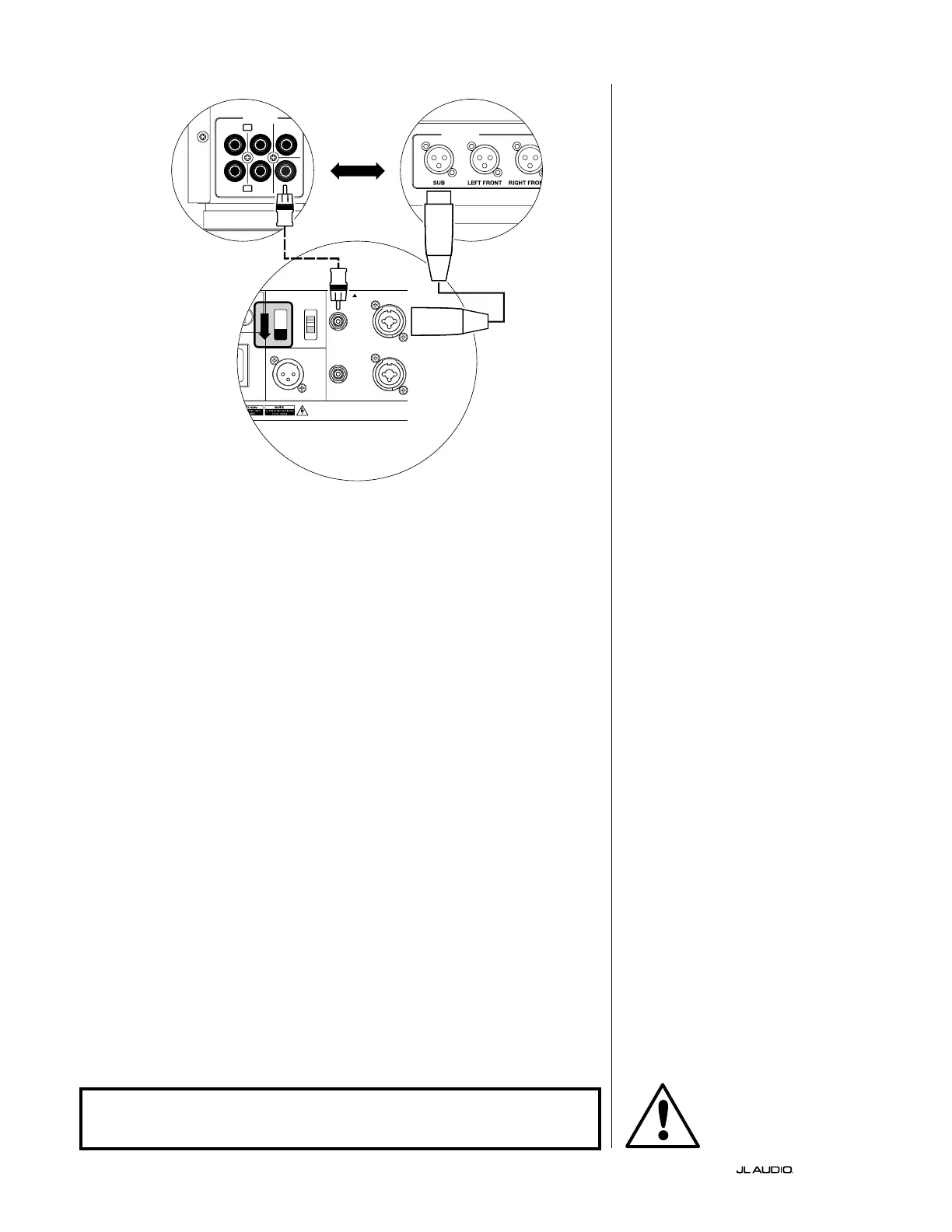

SYSTEM CONNECTION DIAGRAM 1:
One Fathom v2 to
Home Theater Receiver or
Home Theater Preamp/Processor
Most home theater receivers and
preamp/processors provide a single
(mono) subwoofer output. When
connecting a mono subwoofer output
to your Fathom v2, you will only use the
Fathom’s “Le or Mono” input.
Two connection types are available
for connecting the Fathom v2 to your
home theater system: balanced (XLR or
1/4-inch TRS connector) and unbalanced
(RCA-type connector). Balanced
connections provide superior noise
rejection and ensure proper grounding
between components. If your receiver or
processor has balanced outputs, we highly
recommend that you use them.
In the connection diagram at le,
balanced connections are shown as solid
lines, unbalanced connections are shown
dotted. You will only use one of these
input connection methods (not both).
1200VA
ilt in USA with Imported and domestic components
LEFT
or
MONO
RIGHT
ONLY
INPUTS
Output to Slave
(Balanced)
Balanced
Unbalanced
Input Modes
Slave
Master
Grounded
Isolated
SERIAL NUMBER:
Warranty void if serial number is removed, altered or defaced.
F 12A H
250V
0 V ~ 60 Hz
F
U
S
E
F
U
S
E
S
ave
Master
OUTPUTS
SUB
REAR
REAR CENTER
FRONT
FRONT
R
L
PRE OUT
PROCESSOR (BALANCED OUTPUTS)
FATHOM REAR CONTROLS (MASTER)
OR
RECEIVER / PROCESSOR (UNBALANCED OUTPUTS)
WARNING
WARNING! TURN OFF THE FATHOM v2 AND ALL OTHER EQUIPMENT IN THE
SYSTEM BEFORE MAKING OR CHANGING ANY CONNECTIONS!
