PROTECT YOUR HEARING!
We value you as a long-term customer. For
that reason, we urge you to practice restraint in
the operation of this product so as not to damage
your hearing and that of others in your vessel.
Studies have shown that continuous exposure to
high sound pressure levels can lead to permanent
(irreparable) hearing loss. This and all other
high-power amplifiers are capable of producing
such high sound pressure levels when connected
to a speaker system. Please limit your continuous
exposure to high volume levels.
While driving, operate your audio system in
a manner that still allows you to hear necessary
noises to operate your vessel safely (horns,
sirens, etc.).
SERIAL NUMBER
In the event that your amplifier requires
service or is ever stolen, you will need to have
a record of the products serial number. Please
take the time to enter that number in the space
provided below. The serial number can be found
on the bottom panel of the amplifier and on the
amplifier packaging.
Serial Number:
INSTALLATION APPLICATIONS
This amplifier is designed for operation in
vessels with 12 volt, negative-ground electrical
systems. Use of this product in vessels with
positive ground and/or voltages other than 12V
may result in damage to the product and will void
the warranty.
This product is not certified or approved for
use in aircraft.
Do not attempt to “bridge” the outputs of this
amplifier with the outputs of a second amplifier,
including an identical one.

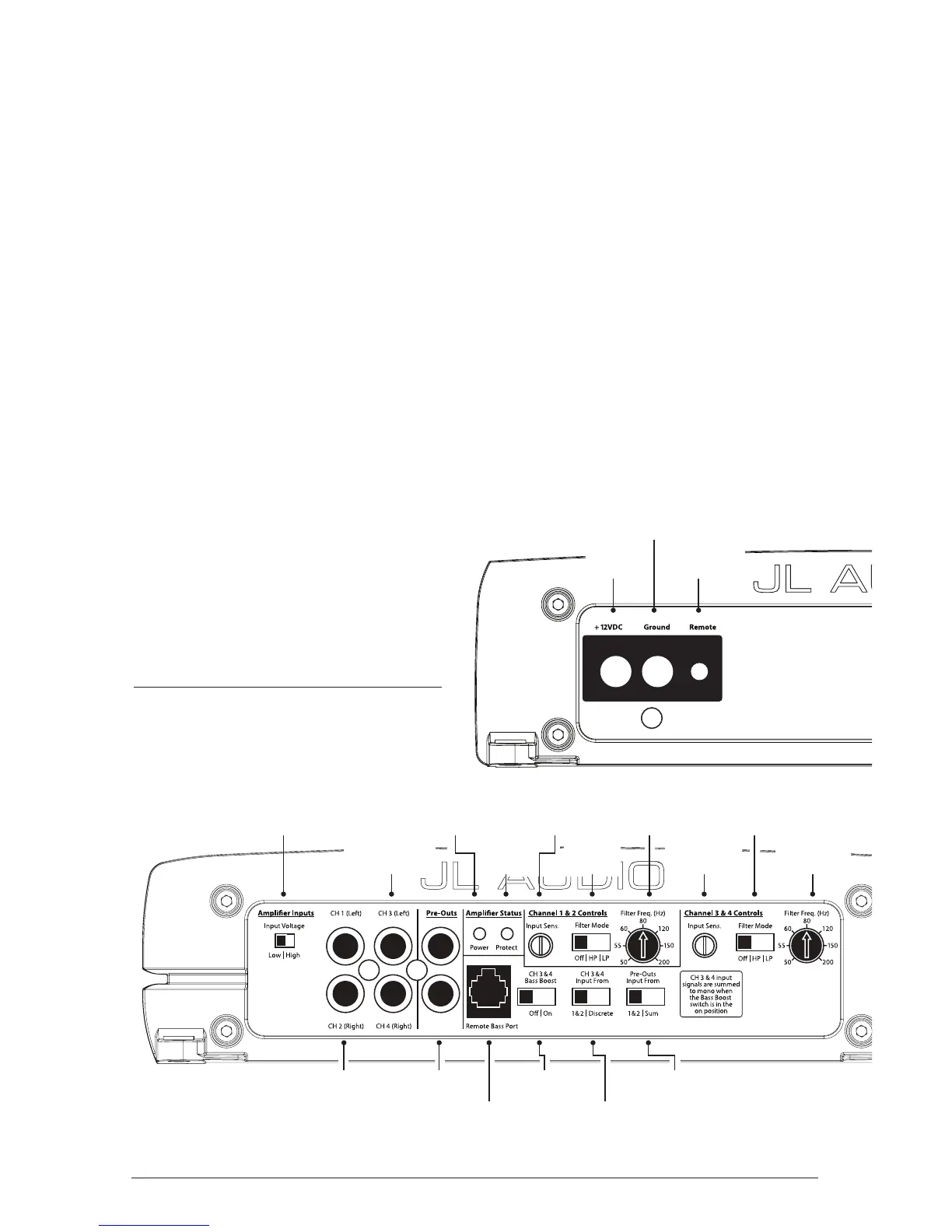

Input Voltage
Selection
(pg. 6)
Channels 3 & 4
Preamp Input Jacks
(pg. 6)
Channels 1 & 2
Preamp Input Jacks
(pg. 6)
Left & Right
Preamp Output
Jacks
(pg. 8)
Ch. 3 & 4
Bass Boost
On/Off Switch
(pg. 8)
Pre-Out Signal
Selection Switch
(pg. 8)
Power
Status
Indicator
(pg. 10)
Jack for
Remote Bass
Control Knob
(pg. 8)
Ch. 3 & 4
Input Selection
Switch
(pg. 6)
Ch. 1 & 2 Filter
Frequency
Selector
(pg. 7)
Ch. 1 & 2 Input
Sensitivity
Control
(pg. 6)
Protection Status
Indicator
(pg. 10)
Ch. 1 & 2
Filter Mode
Selection
(pg. 7)
Ch. 3 & 4
Filter Mode
Selection
(pg. 7)
Ch. 3 & 4
Input Sensitivity
Control
(pg. 6)
Ch. 3 & 4
Filter Frequency
Selector
(pg. 7)
Remote Turn-On
Connector
(pg. 5)
Chassis Ground
Connector
(pg. 5)
+12 V Power
Connector
(pg. 4)
Channels 3 & 4
Speaker Outputs
(pg. 8)
Channels 1 & 2
Speaker Outputs
(pg. 8)
2 JL AUDIO M4500
