JLA D3030 - Lint Drawer Maintenance

43
D. LINT DRAWER REMOVAL

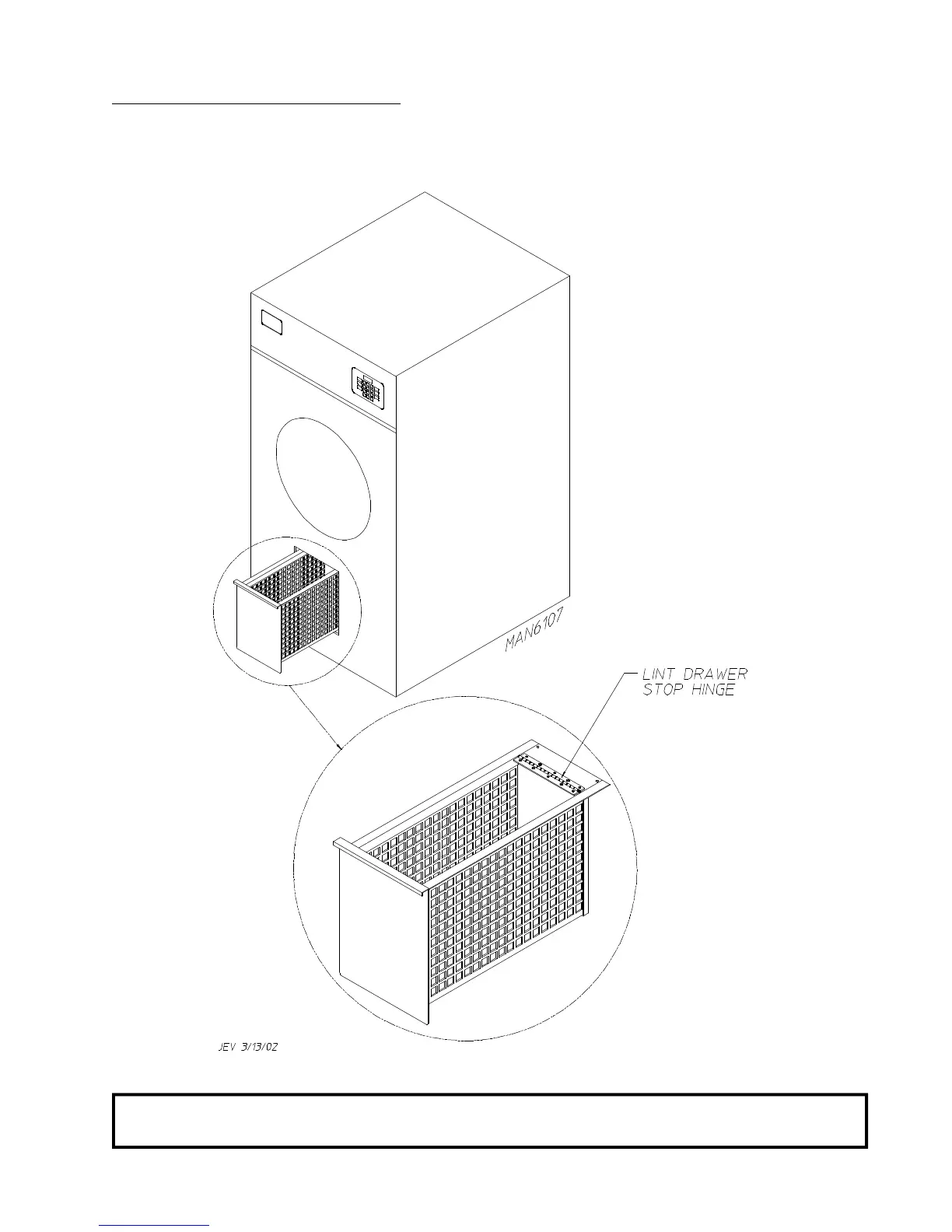

To remove the lint drawer from the dryer pull drawer out approximately halfway. Rotate/move lint drawer stop
hinge (refer to the illustration below) downward and pull the drawer out.
IMPORTANT: After replacing the lint drawer back into the dryer, be sure to rotate/move hinge back
to the upward stop position.
