JLG 12SP - TANK and PUMP REMOVAL - (All Pumps); Tank Installation; Filter Screen Installation; Pump Installation

SECTION 2 - SERVICE PROCEDURES
2-16 – JLG Lift – 3120775
TANK AND PUMP REMOVAL - (All Pumps)
Tank Installation
Filter Screen Installation
Pump Installation

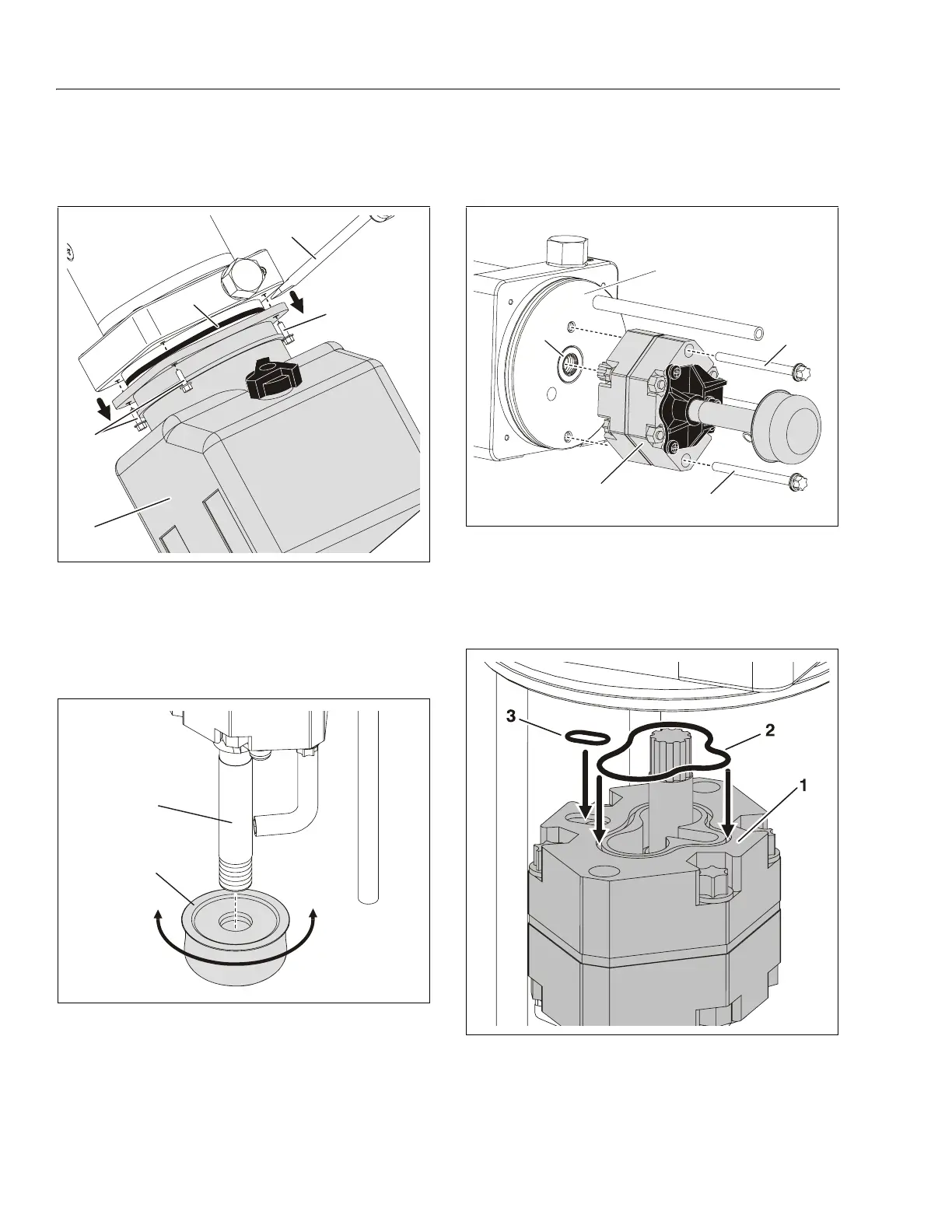

Tank Installation
1. Tank Assembly 3. O-Ring Seal
2. Tank Screws (4) 4. Use Screwdriver to pry tank
away from pump head.
Filter Screen Installation
1. Filter Screen 2. Pump Pick-Up Tube
1
2
2
3
4
1
2
Pump Installation
1. Pump Assembly 3. Pump Shaft Seal
2. Pump Assembly Screws 4. Pump End Head
Pump O-Ring Installation
1. Pump Assembly 2. O-Ring Seal 3. O-Ring Seal
1
2
2
3
4
