SECTION 3 - TROUBLESHOOTING
3120775 – JLG Lift – 3-7

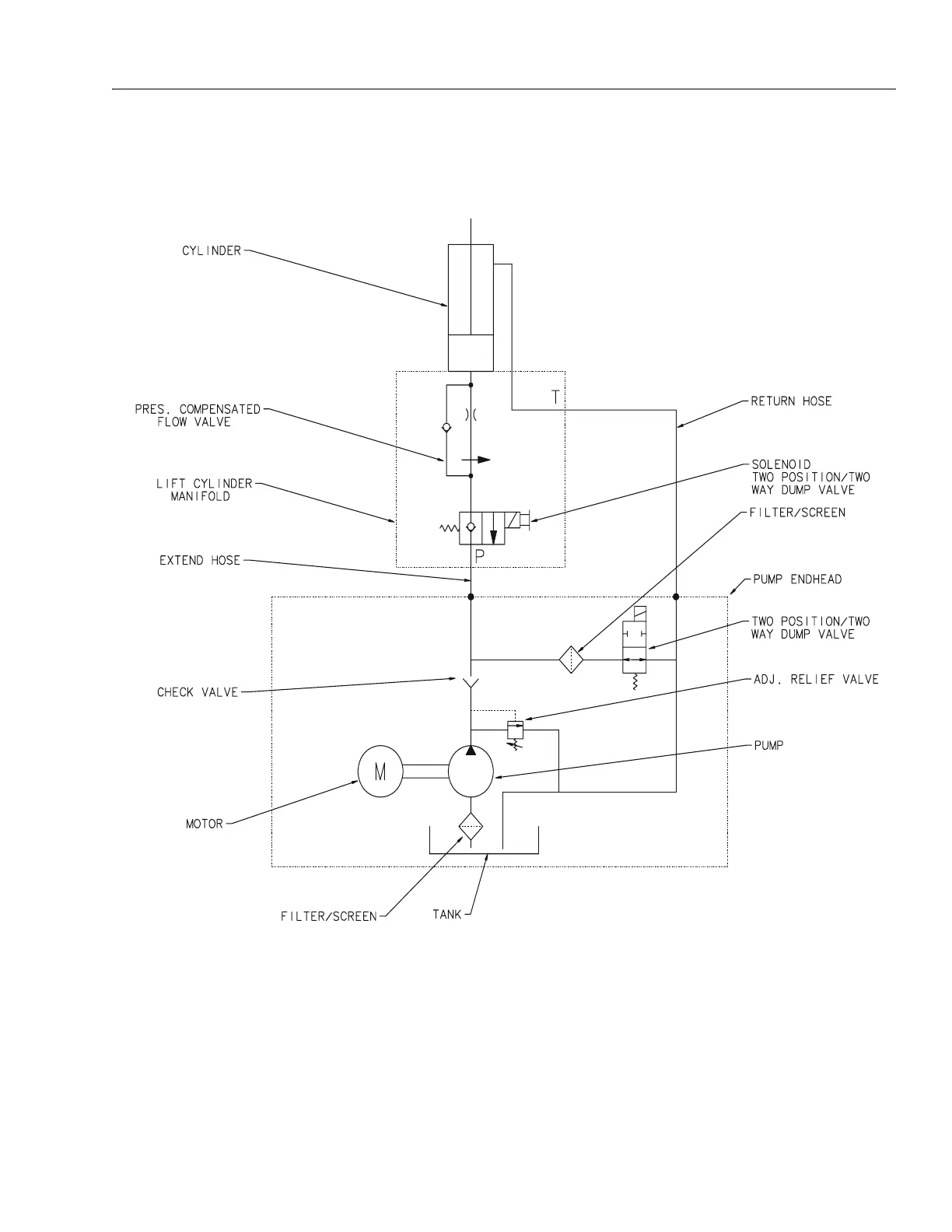

Figure 3-5. Hydraulic Schematic. (SP Series)
2792491
_
A
