JMB VL-3E-1 Evolution - Weight and Balance Limits

VL-3E-1 Pilot Operating Handbook
date of issue:
12/39
2.7 Weight
Empty weight (standard equipment) ….……………..
Max. take-off weight ………..………………………..… 472.5 kg
Max landing weight …………..………………………... 472.5 kg
Max. baggage weight ………..…………………………. 15 kg
2.8 Centre of gravity
Empty aeroplane C.G. position (undercarriage retracted)…...
Empty aeroplane C.G. position (undercarriage extended)…...
Operating C.G. range …….…………………………………….. 21 - 34 %MAC
2.9 Approved manoeuvres
Aeroplane Category: NORMAL
The aeroplane is approved for Normal and Manoeuvres listed below:
- Steep turn not exceeding 60° bank

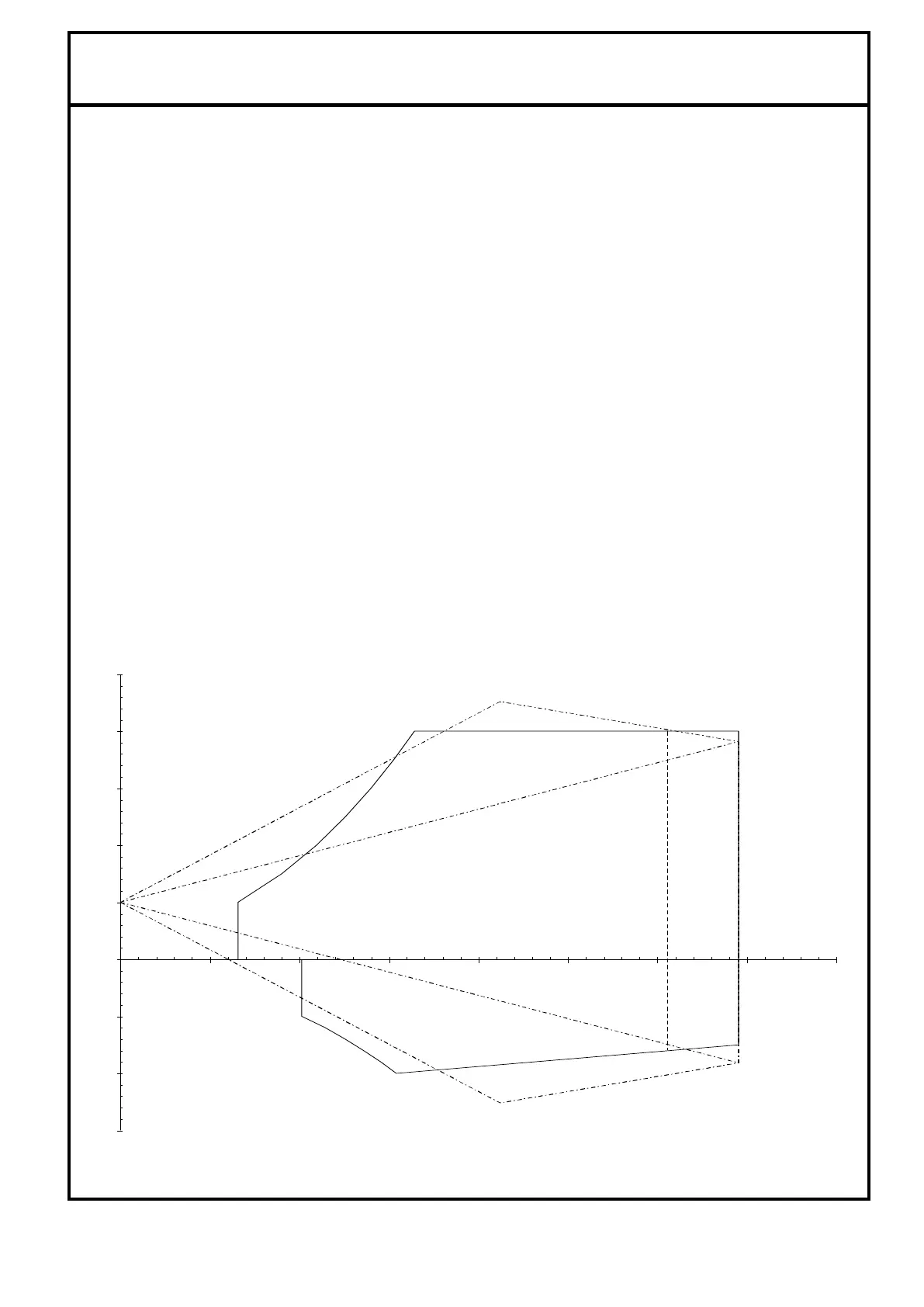

2.10 Manoeuvring load factors
-3
-2
-1
0
1
2
3
4
5
0 50 100 150 200 250 300 350 400
V IAS [km/h]
n
A
D
G
Ude=15 m/s
Ude=-15 m/s
Ude=7.5 m/s
Ude=-7.5 m/s
E
Vne
