VL-3E-1 Pilot Operating Handbook
date of issue:
33/39

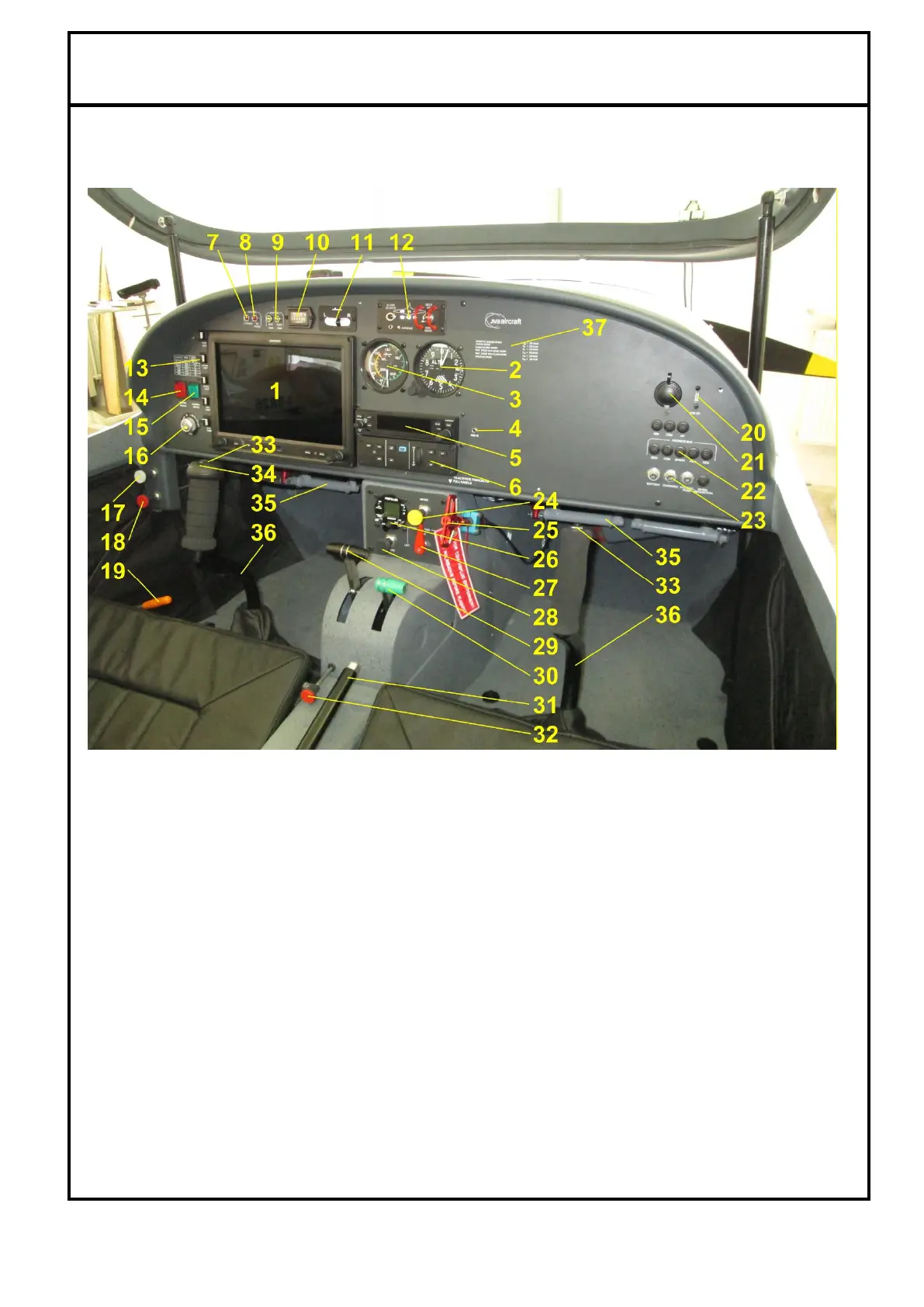

7.3 Instrument panels and controls in the cockpit
1
Efis – Garmin GDU 460
15
Avionic master switch
29
Throttle control
2
Altimeter
16
Ignition box
30
Trim lever
3
Airspeed indicator
17
Ventilation control
31
Flaps lever
4
AUX IN conector
18
Heating control
32
Parking brake control
5
Tranceiver
19
Emergency relace of gears
33
PTT switch
6
Garmin GMC 305
20
5V USB socket
34
Autopilot disc switch
7
Batery charge indicator
21
12V socket
35
Rudder pedals
8
Low oil pressure indicator
22
Circuit breaker
36
Control stick
9
Low fuel indicator
23
Fuses
37
Airspeed limits
10
Hobbs – engine run hours
24
Airbox control
11
Turn and bank indicator
25
Parachute rescue system
12
Landing gear controler
26
Control speed unit
13
Switches
27
Fuel tank selector
14
Master switch
28
Choke control
