3.2.Interface definition

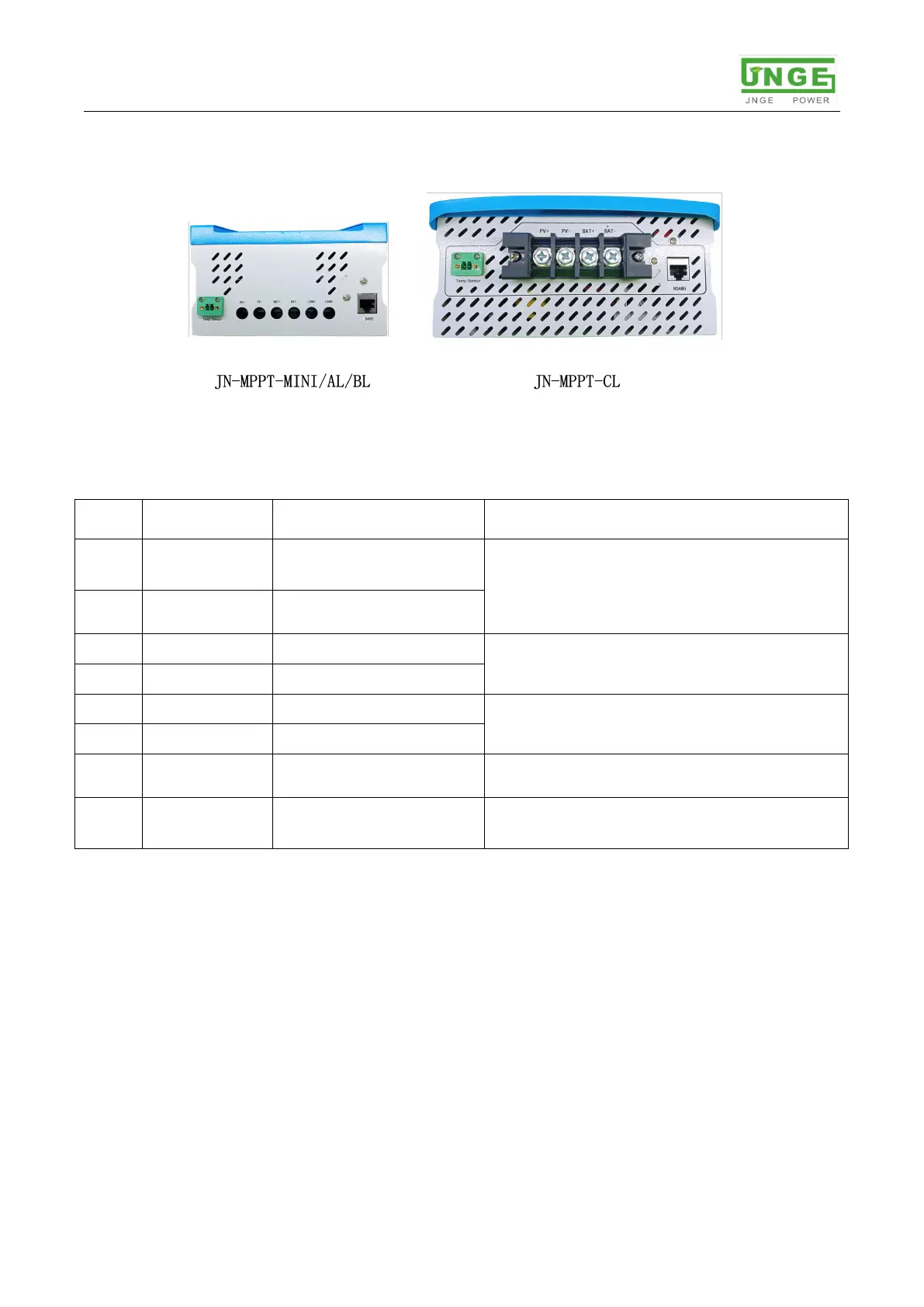

pic2-2 Product interface definition
Table 2-2 Product interface definition
NO.
Name
Function
Instruction
1
PV+
Photovoltaic array
positive electrode
PV array input
2
PV-
Photovoltaic array
negative
3
BAT+
Battery positive
Battery pack terminal
4
BAT-
Battery negative
5
LOAD+
DC load positive
DC load output (JN-MPPT-CL does not
have this output)
6
LOAD-
DC load negative
7
Temp sensor
External temperature
test terminal
Measuring battery temperature
8
RS485
Communication port
Realize the monitoring of host computer,
WIFI and GPRS communication
III. Installation Instruction
1. installation precautions
(1) You must read the entire installation chapter and familiarize yourself with the installation
steps before installation.
(2) Be very careful when installing the battery. For the installation of the open lead-acid
battery, wear a protective mirror. When it comes into contact with the battery acid,
please rinse it with clean water.
(3) Avoid placing metal objects near the battery to prevent the battery from short-circuiting.
