JNGE Power Buck Series User Manual

JN-MPPT Buck series solar charge controller
address:no.99 yonghe road.Hefei.Anhui.China Tel：0551-65372576 http://www.hfjnge.com
- 12 -
charge
and the field flashes during the boost charging phase.
Time
Time
control
period 1
setting
The field lights up, and the first time period can be set (the light
control lights up for the first time). When the 24 is set, the
controller is the household mode. The default is 24 hours.
Time1
Time
control
period 2
setting
The field lights up. In the street light mode, the second time period
can be set (the light control time is after the light control is turned
on).
Time2
Time
control
period 3
setting
The field lights up. In the street light mode, the third time period
can be set (the light control is illuminated for the second time).
L-CON-V
Light
control
voltage
setting
The field is lit, the first digit of the display area is displayed 1, and
the light control can be set to turn on (light control lighting)
voltage; after the light control is turned on, the first digit is
displayed 2, and the light control can be set to turn off (lighting off)
MPPT
MPPT
charging
This field flashes during the MPPT charging phase.
ERROR
ERROR
This field lights up when there is a fault
4.4 Setup operation
4.4.1、General parameter settings:
Press the set (set) button in the standby mode to enter the undervoltage setting
interface. Refer to the following figure for the setting process. Press the (ESC) button on
any interface to exit the setting interface and return to the standby interface. Other
general parameter setting items are the same as the undervoltage setting.

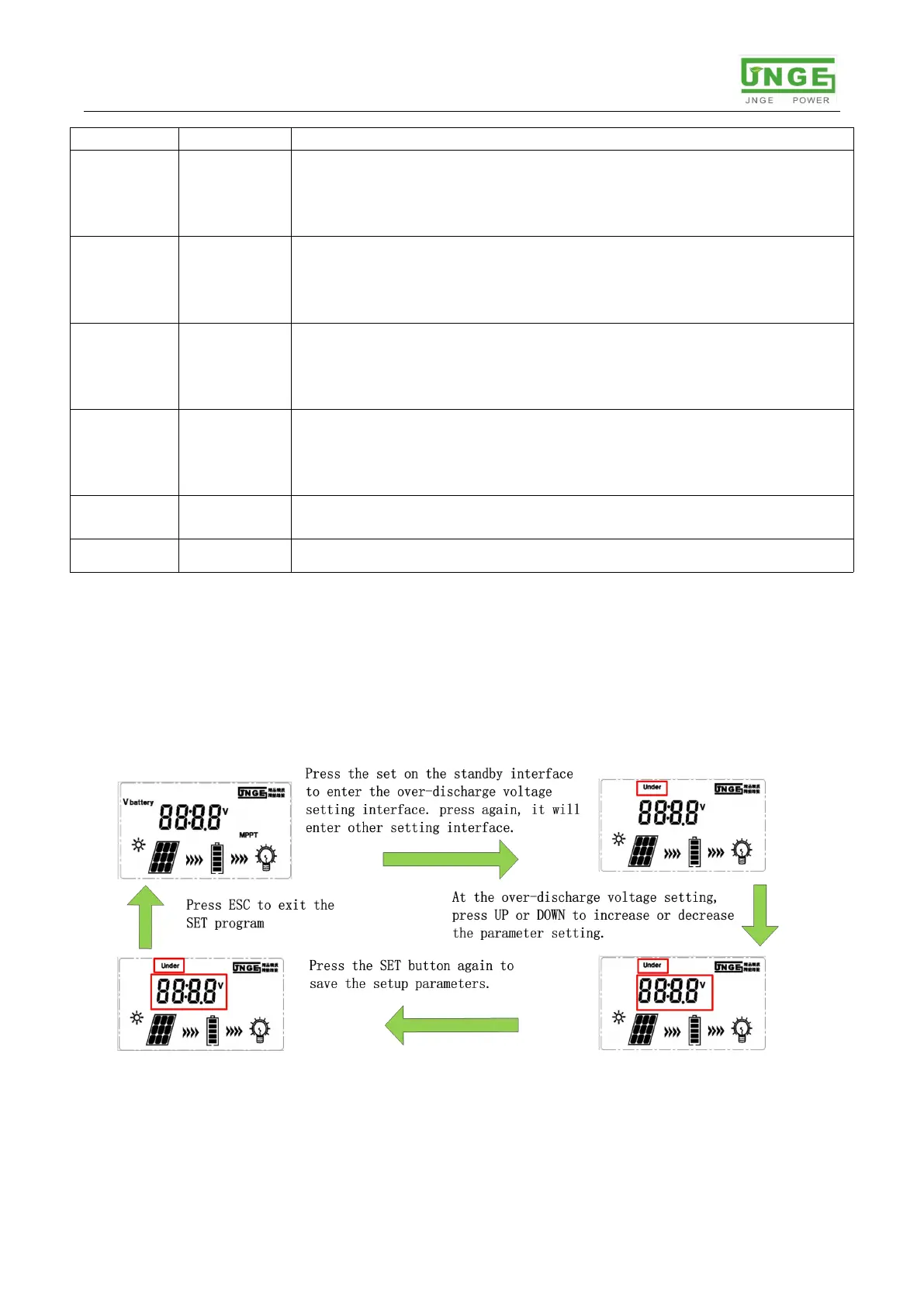

pic 4-4 General parameter setting--over-discharge voltage point setting diagram

JNGE Power Buck Series Specifications

General

Brand	JNGE Power
Model	Buck Series
Category	Controller
Language	English
