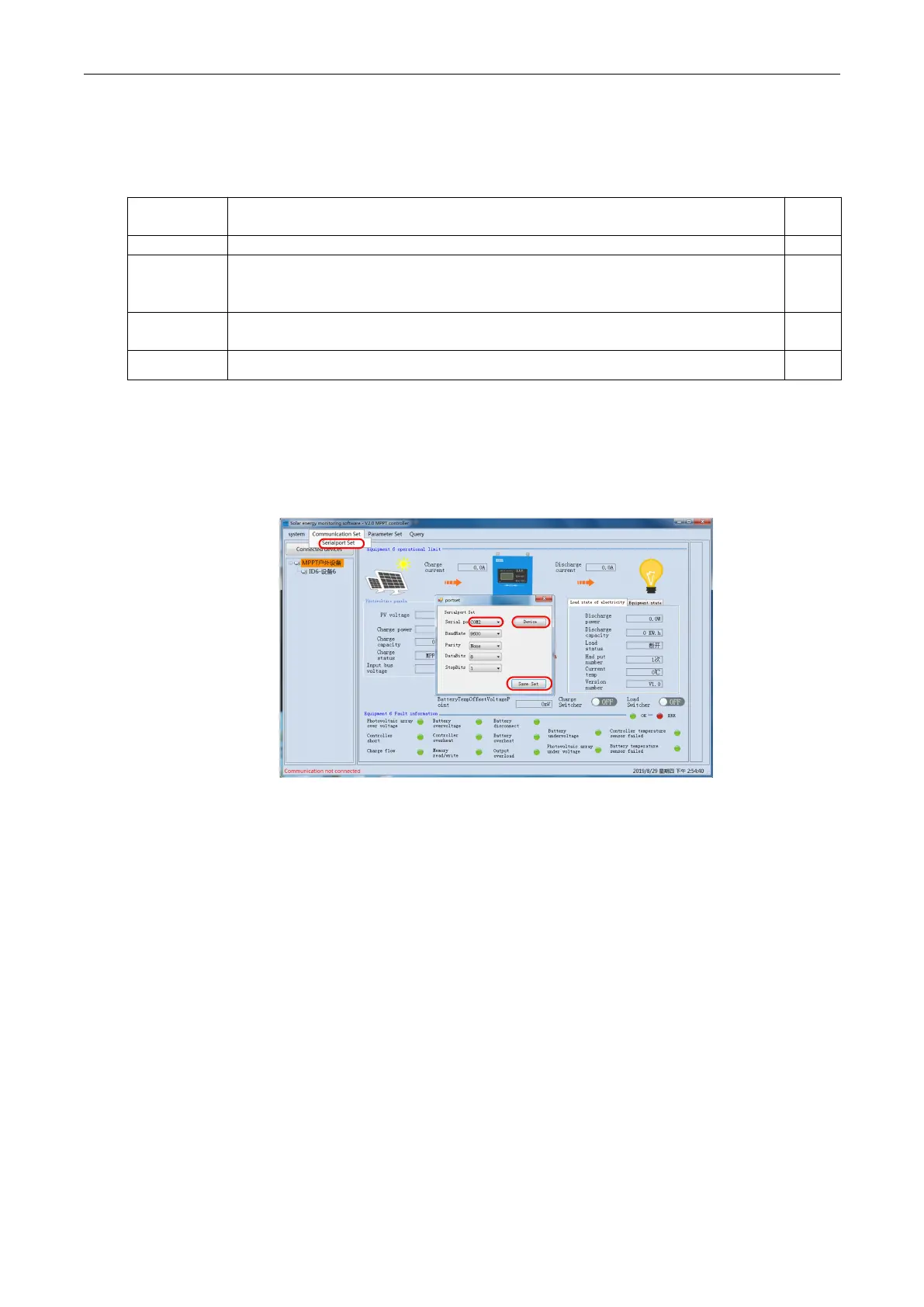

The software interface is shown in the figure above. The main interface area is divided into menu bar,
status bar, device tree, operation parameter, and fault alarm display area.
Menu bar: Edit and run parameters, the functions are as follows:
3.Parameters configuration
3.1 Communication parameter setting:
Click the “Communication Settings” menu in the menu bar to pop up the “Serial Port Settings” submenu.
Click the “Serial Port Settings” submenu to pop up a serial port setting dialog box, as shown below:
Figure 2-2 Serial Port Settings
Click the drop-down box next to “Serial Port” and select the corresponding serial port number (you can
also find the serial port number of the device connected to the computer through “Device Manager”), and
then click “Save Settings” to complete the serial port setting.
In this setup page, you only need to change the serial port number. Other parameters do not need to be
changed.
The default value is: baud rate: 9600
Check digit: None
Data bits: 8
Stop position: 1
Menu Item
Function
Rem
arks
System
Add, delete, edit devices;
Communic
ation
settings
Edit communication parameters, including serial port number, serial port
parameters, etc.
Parameter
settings
Read and edit set operating parameters, including battery parameter
settings and device parameter settings;
Search
Query and edit historical data, as well as export report functions.
