JNGE Power JN-MPPT Instructions

JN-MPPT Buck type Solar Controller Product Manual
Address: No.99,Yonghe Road,High-Tech Zone,Hefei,Anhui ,China http://www.hfjnge.com
- 6 -
3.3 System parameter setting:
Through the system monitoring software, click the “Parameter Setting”
menu in the menu bar, the system will pop up the “Basic Parameter Setting” and “Factory Setting”
submenu, click the “Basic Parameter Setting” submenu, and the system will pop up “Basic Parameter
Setting”. The dialog box, including “battery parameter setting” and “equipment parameter setting”, reads
and sets the battery and controller parameters, as shown in the following figure 2-5 and figure2-6; click
“factory setting” system will pop up the password input dialog box, The parameter setting is the controller
factory setting parameter and the user does not need to change it.

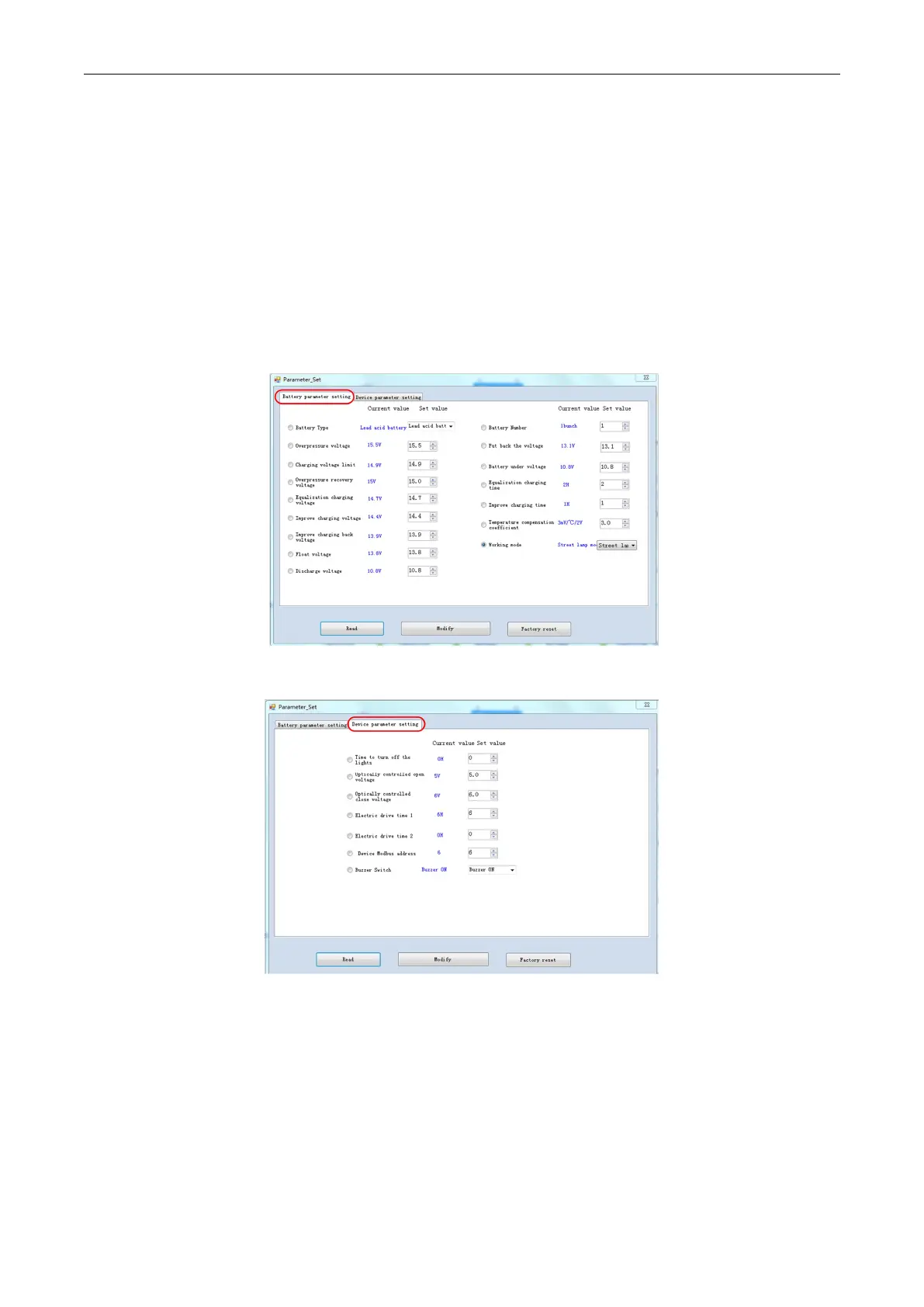

Figure 2-5 Battery parameter settings
Figure 2-6 Device parameter settings
As shown in the figure, click the “Read” button to read the setting parameters of the current device;
to modify the operating parameters of the device, first select the item to be modified, enter the data to be
modified in the “Setting Value” box, and then click "Confirm Modification" completes the modification of
the parameters;
