898841-UIM-B-0113
Johnson Controls Unitary Produ
cts
23

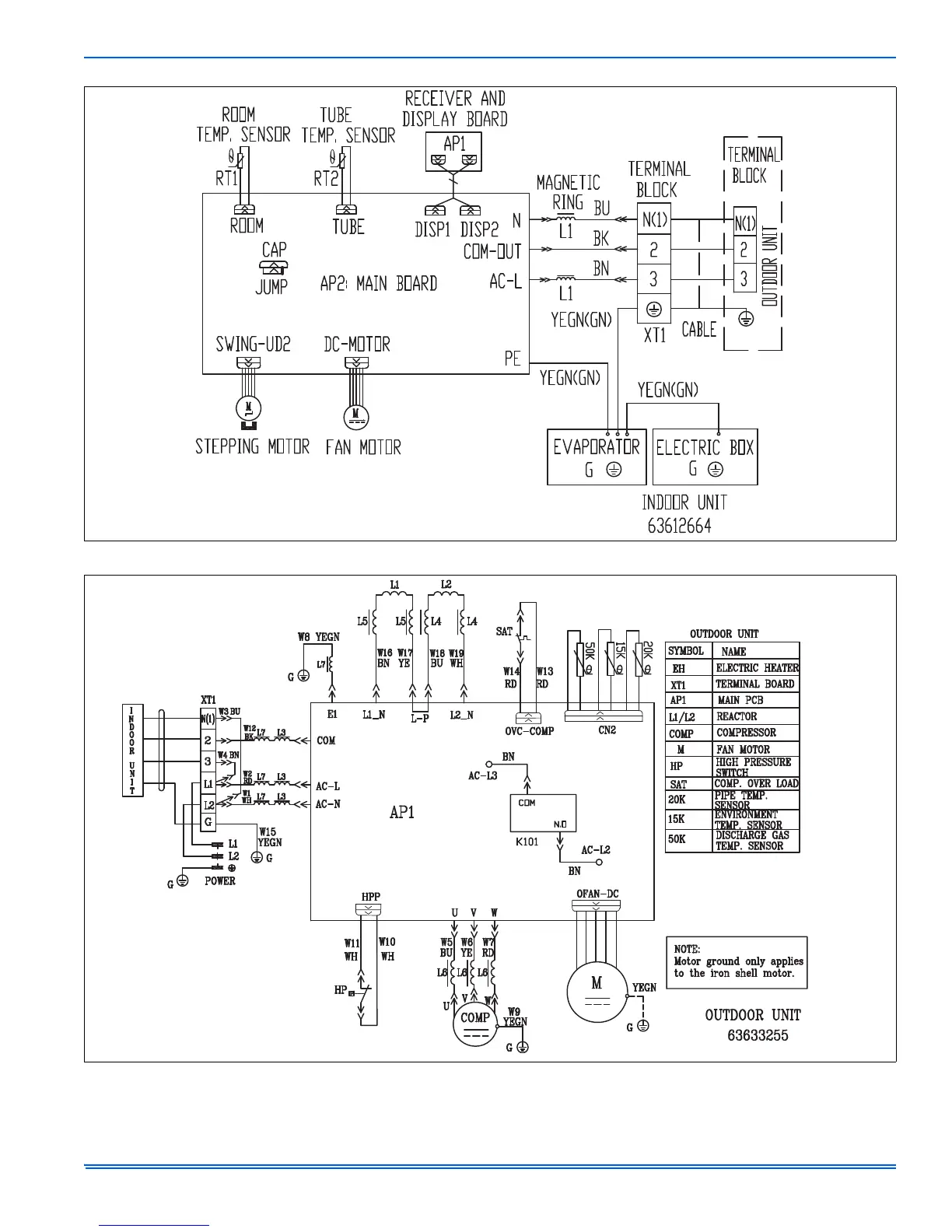

FIGURE 50:
24K Indoor Air Conditioners
FIGURE 51:
36K Outdoor Air Conditioners
22
24
Table of Contents
Default Chapter
1
Table of Contents
1
Installation Manual
1
General
2
Safety
2
Shipping and Packaging List
2
Required Installation Tools (Not Supplied)
3
Selecting the Installation Location
3
Indoor Clearances
3
Indoor Parts
3
Outdoor Parts
3
Prevailing Wind Barrier
4
Clearances for Outdoor Unit
4
Specifications
5
Condensate Drainage
5
Air Conditioner Electrical Specifications
5
Refrigerant Line Set Requirements
6
Heat Pump Electrical Specifications
6
Insulation Thickness & Material Information
6
Typical System Components
7
Refrigerant Line Set Requirements
7
Unit Dimensions
8
Indoor Unit Mounting Brackets with Weights & Dimensions
8
Outdoor Unit Weights & Dimensions
8
Indoor Unit Dimensions
8
Outdoor Unit Dimensions
8
Torque Requirements for Caps and Fastners
9
Indoor Unit Installation
9
Indoor Unit Wiring Connections
9
Mounting Bracket Spots
9
Masonry Applications
9
PVC Wall Sleeve Installation
9
Caps and Fasteners Torque Requirements
9
Pipe Forming and Drain Piping
10
Indoor Unit Wall Mounting Bracket
10
Indoor Electrical Wiring Connections
10
Drain Piping Outlets Option
10
Wire Color Reference
10
Proper and Improper Drain Piping
11
Left or Right Side Exits
11
Right or Right Rear Piping
11
Left or Left Rear Piping
11
Drain Hose Extension
12
Drain Hose Insulation
12
Pipe Cutting Approved Method
12
Deburring Line Set
12
Flaring Tools
12
Proper and Improper Flaring
12
Flaring Work and Piping Connections
12
Connections at Indoor Unit
13
Flare Nuts Tighting
13
Indoor Unit Attachment to Mounting Bracket
13
Proper and Improper Drain Hose Installation Application
13
Indoor Unit Removal
13
Indoor Unit Installation
13
Outdoor Unit Installation
13
Flare Nut Torque Recommendations
13
Outdoor Unit Installation
14
Outdoor Unit Slab or Frame Installation
14
Outdoor Unit Electrical Connections
14
Outdoor Unit Wiring Connections
14
Outdoor Unit Wiring Terminal Designations
15
Indoor/Outdoor Piping Connections
15
Outdoor Line Set Connections
15
Purging Procedure, Leak Test and Test Run
16
Line Set Connection Insulation and Taping
16
Utility Bundle
16
Exterior Wall Utility Cover (Optional)
16
Service Valve Operation
17
Gauge Set Connections for Test Leaks, Evacuation Charging
17
Test Operation
18
Emergency Operation
18
Maintenance
18
Installation and Maintenance of Healthy Filter (Accessory)
18
Leak Test Line Set Connection
18
Typical Unit Wiring Diagram
19
Filter Replacement
19
12K 115V Outdoor Air Conditioners
19
12K Outdoor Air Conditioners
20
24K 115V Indoor Air Conditioners
20
24K Indoor Air Conditioners
21
Outdoor Air Conditioners
21
Indoor Air Conditioners
22
Outdoor Air Conditioners
22
Indoor Air Conditioners
23
Outdoor Air Conditioners
23
Indoor Air Conditioners
24
12K 115V Outdoor Heat Pumps
24
12K Outdoor Heat Pumps
25
24K 115V Heat Pumps
25
24K Indoor Heat Pumps
26
Outdoor Heat Pumps
26
Indoor Heat Pumps
27
Outdoor Heat Pumps
27
Indoor Heat Pumps
28
Outdoor Heat Pumps
28
Indoor Heat Pumps
29
Outdoor Heat Pumps
29
Indoor Heat Pumps
30
Indoor and Outdoor Units Error Codes
31
Indoor Unit Front Panel Indicators
31
Control Board
31
Error Codes - 09K 12K
32
Error Codes - 18K 24K
37
Error Codes - 30K 36K
41
Uim-B
