Johnson Controls 22 SEER User Manual

898841-UIM-B-0113
8 Johnson Controls Unitary Products

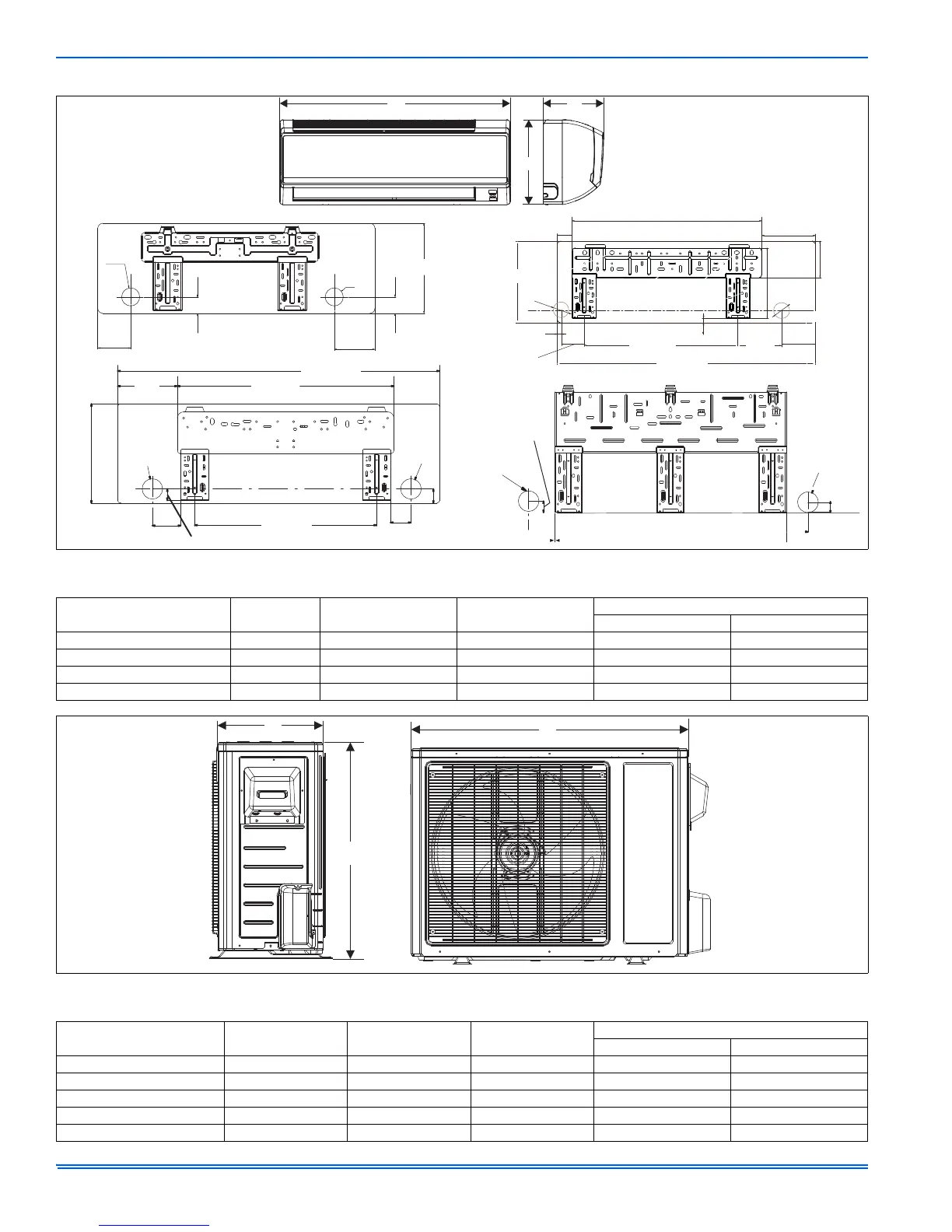

SECTION VIII: UNIT DIMENSIONS
FIGURE 6: Indoor Unit Mounting Brackets with Weights & Dimensions
09K 12K
18K
24K
A
C
B
256
27.3 (693)
5.3
(135)
2.1 (53)
7.8 (198)
11.8 (300)
2.2 (56)
2.2 (56)
1.8 (46)
.6 (15)
.6 (15)
3.3 (84)
22.2 (564)
33.3 (846)
6.3
(160)
4.9
(124)
40.1 (1018)
7.4
(188)
2.6 (66)
3.5 (89)
1.4 (36)
22.6 (574)
2.5 (64)
1.8 (46)
2.6 (66)
27 (686)
2.6 (66)
1 (25)
4
(102)
4
(102)
1 (25)
2.6 (66)
21.3 (541)
2.2 (56)
2.2 (56)
2 (51)
4 (101)
5 (127)
2 (51)
30K & 36K
10.9 (277)
TABLE 7: Indoor Unit Dimensions
Model Size A B C
Unit Gross Weight
Air Conditioner Heat Pump
09K & 12K 33 (838) 7 (178) 10.9 (277) 31 lbs (14 kg) 37 lbs (17 kg)
18K 37 (940) 8 (203) 12 (305) 31 lbs (14 kg) 46 lbs (21 kg)
24K 39.8 (1011) 8.5 (216) 12.4 (315) 46 lbs (21 kg) 56 lbs (25 kg)
30K & 36KK 53 (1346) 10 (254) 12.9 (328) NA 60 lbs (27 kg)
FIGURE 7: Outdoor Unit Weights & Dimensions
B
A
C
TABLE 8: Outdoor Unit Dimensions
Model SizeABC
Unit Gross Weight
Air Conditioner Heat Pump
09K 33 (838) 12.6 (320) 21 (533) 91 lbs (41 kg) 110 lbs (50 kg)
12K 33 (838) 12.6 (320) 21 (533) 97 lbs (44 kg) 119 lbs (54 kg)
18K 35 (889) 13.4 (340) 27.5 (699) 121 lbs (55 kg) 148 lbs (67 kg)
24K 38 (965) 16.9 (429) 31.1 (790) 132 lbs (60 kg) 161 lbs (73 kg)
30K & 36K 38 (965) 16.9 (429) 31.1 (790) NA 163 lbs (74 kg)
