Johnson Controls CGM04060 - Binary Output Wiring; 24 VAC Binary Output; Incremental Control Output Wiring

Table 6: Termination details
Type of field
device
Type of Input/
Output

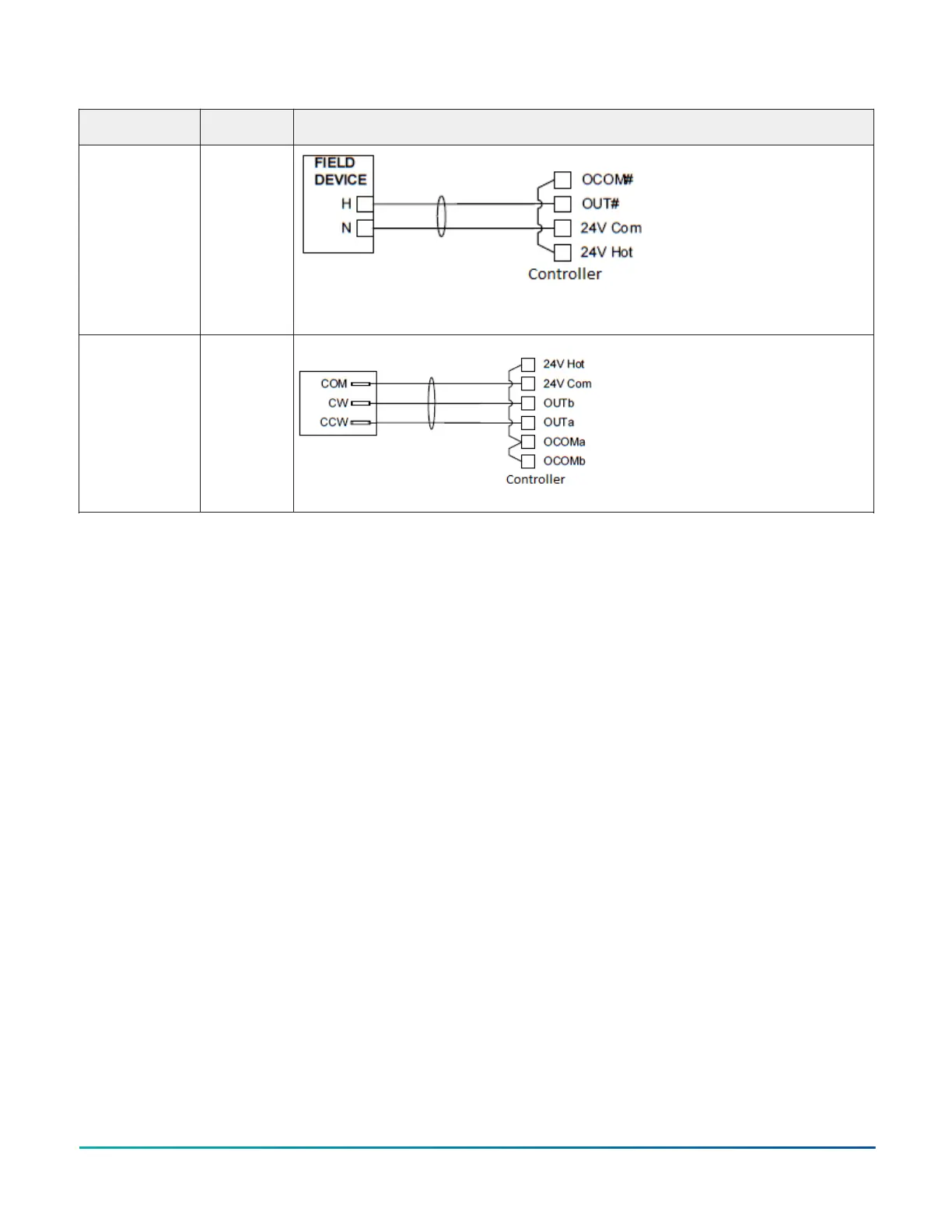

Termination diagrams
24 VAC Binary
Output (Switch
High, Externally
Sourced)
BO
Incremental
Control to
Actuator (Switch
High, Externally
Sourced)
BO
M4-CGM General Purpose Application Controller Installation Guide14
