Johnson Controls CVM03050 User Manual

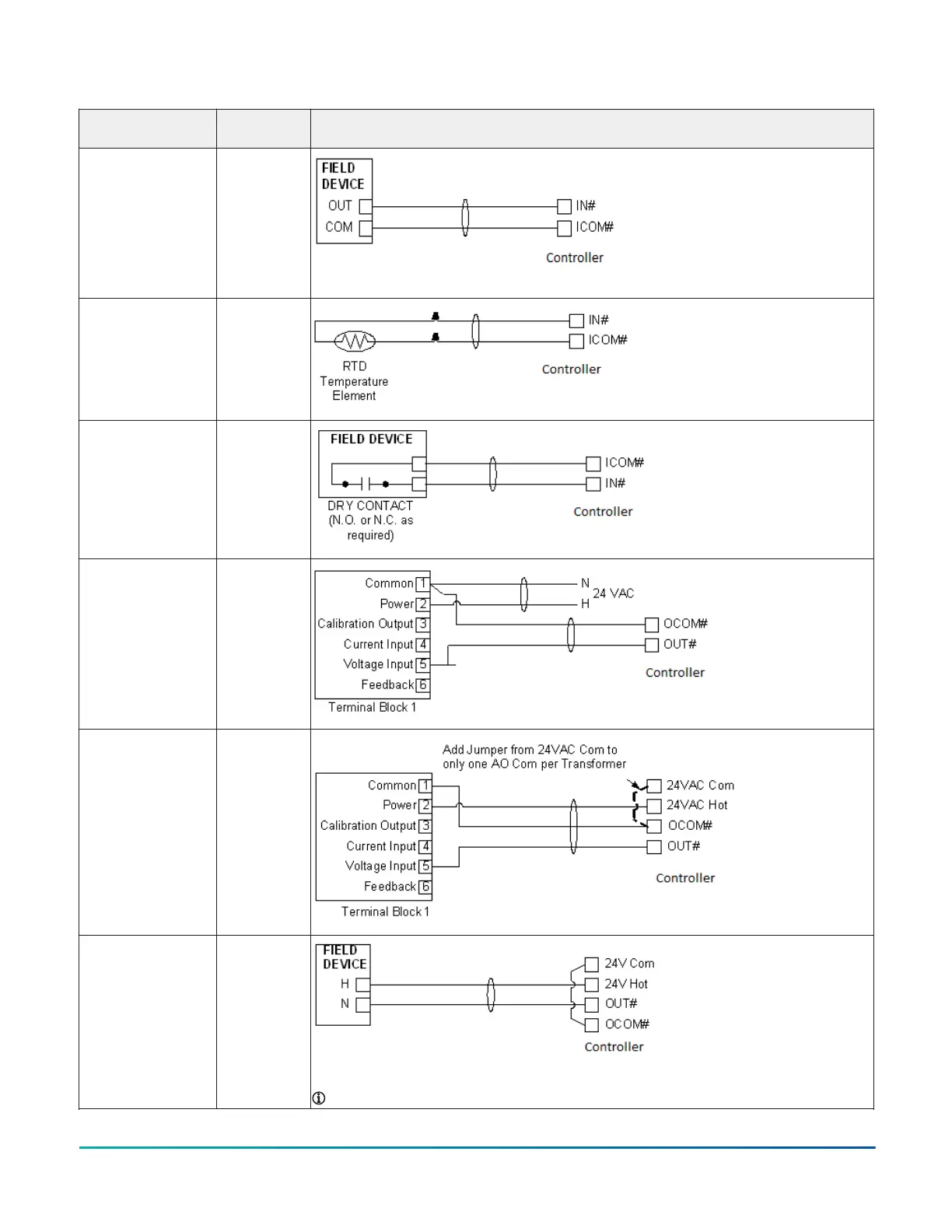

Table 8: Termination details
Type of Field Device Type of Input/
Output
Termination diagrams
Voltage Input (Self-
Powered)
UI
Temperature Sensor UI
Dry Contact UI
0–10 VDC Output to
Actuator (External
Source)
CO
0–10 VDC Output to
Actuator (Internal
Source)
CO
24 VAC Triac Output
(Switch Low, External
Source)
CO
Note: Applies to CO4 and CO5.
M4-CV Series VAV Box Controllers Installation Guide12
