SECTION VIII: UNIT DIMENSIONS

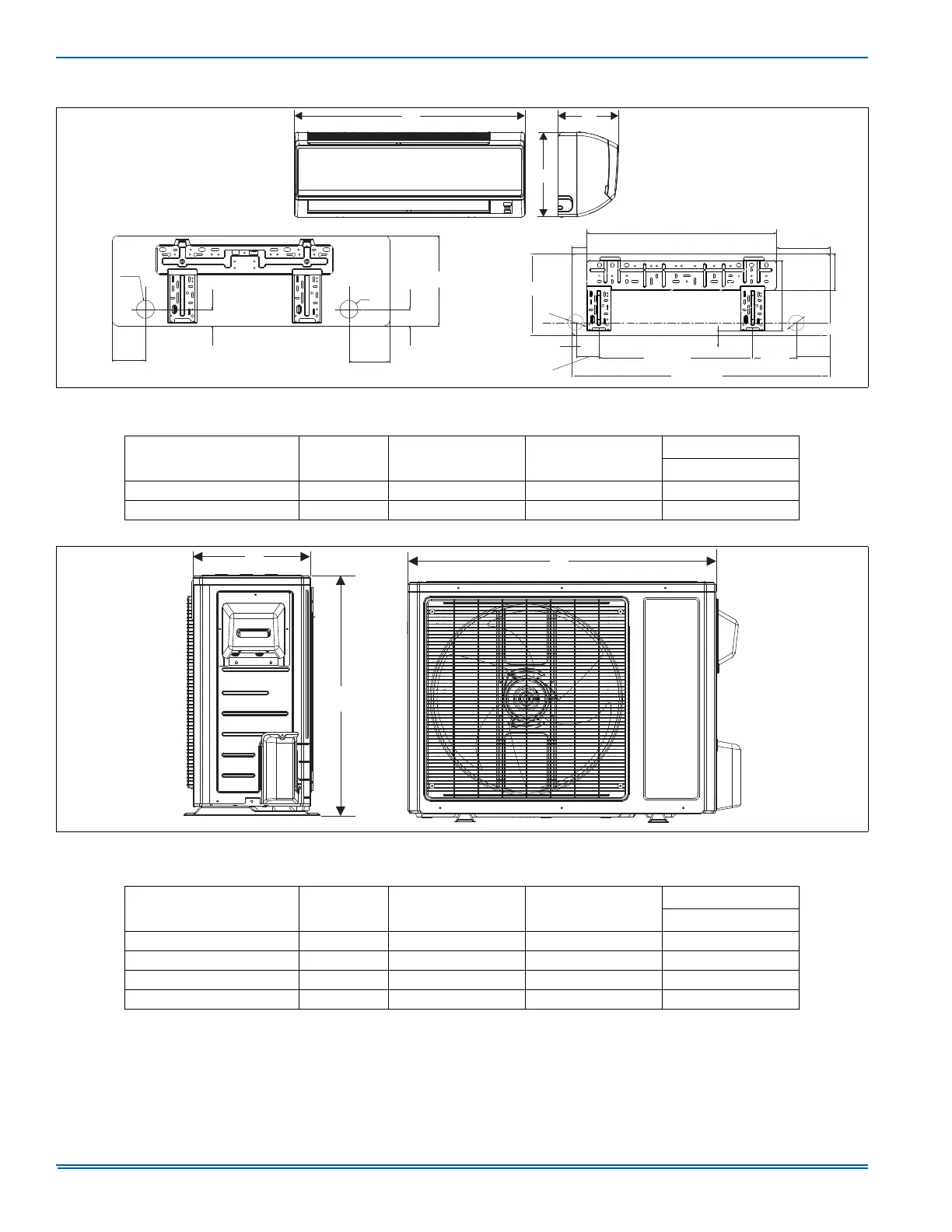

FIGURE 6: Indoor Unit Mounting Brackets with Weights & Dimensions
09K 12K
18K
A
C
B
256
27.3 (693)
5.3
(135)
2.1 (53)
7.8 (198)
11.8 (300)
2.2 (56)
2.2 (56)
1.8 (46)
.6 (15)
.6 (15)
3.3 (84)
22.2 (564)
33.3 (846)
6.3
(160)
4.9
(124)
21.3 (541)
2.2 (56)
2.2 (56)
2 (51)
4 (101)
5 (127)
2 (51)
10.9 (277)
TABLE 7: Indoor Unit Dimensions
Model Size A B C
Unit Gross Weight
Heat Pump
09K & 12K 33 (838) 7 (178) 10.9 (277) 37 lbs (17 kg)
18K 37 (940) 8 (203) 12 (305) 46 lbs (21 kg)
FIGURE 7: Outdoor Unit Weights & Dimensions
B
A
C
TABLE 8: Outdoor Unit Dimensions
Model Size A B C
Unit Gross Weight
Heat Pump
18K 35 (889) 13.4 (340) 27.5 (699) 148 lbs (67 kg)
24K 38 (965) 16.9 (429) 31.1 (790) 161 lbs (73 kg)
30K 38 (965) 16.9 (429) 31.1 (790) 163 lbs (74 kg)
42K 40 (1016) 14.2 (361) 43.4 (1102) 247 lbs (112 kg)
