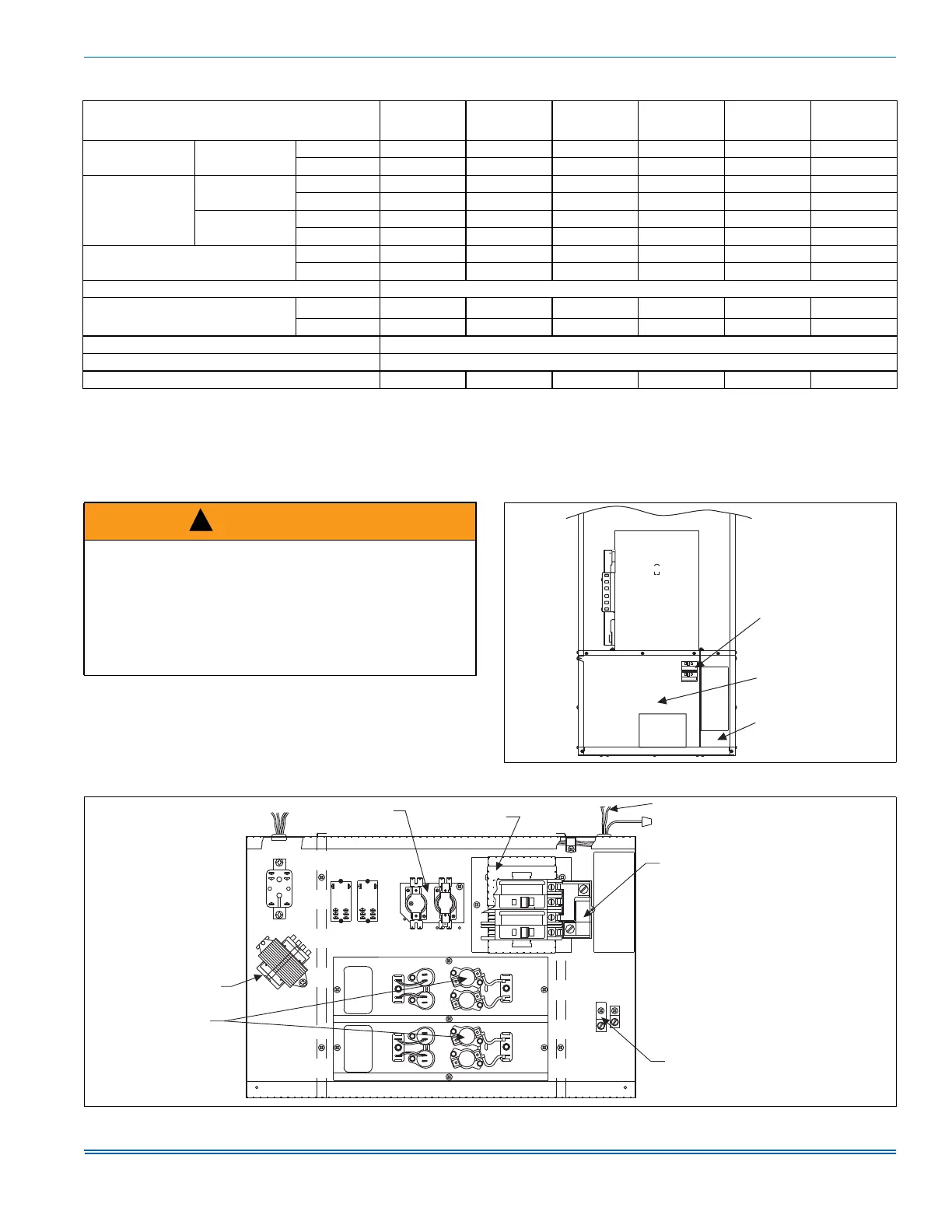

TABLE 4:
Physical and Electrical Data
1
MODEL NUMBER
2,3
EBE10A
EUE10A
3,4
EBE12A
EUE12A
5
EBE15A
EUE15A
5
EBE17A
EUE17A
5
EBE20A
EUE20A
5
EBE23A
EUE23A
D.O.E.
Output
240 VAC
60 Hz.,1 Phase
BTU 34,000 39,000 51,000 56,000 67,000 77,000
kW 10.0 11.4 15.0 16.4 19.6 22.6
OUTPUT
CAPACITY
230 VAC
60 Hz.,1 Phase
BTU 31,000 36,000 47,000 52,000 61,000 71,000
kW 9.1 10.6 13.8 15.2 17.9 20.8
220 VAC
60 Hz.,1 Phase
BTU 29,000 33,000 43,000 48,000 57,000 65,000
kW 8.5 9.7 12.6 14.1 16.7 19.1
Element Capacity
@ 240 VAC
kW 9.6 11.2 14.4 16.0 19.2 21.6
Amps 40.0 46.7 60.0 66.7 80.0 90.0
Motor Amps @ 240 V. 4.0 Maximum
Circuit Load Amps
@ 240 V.
CKT 1 43.8
50.5
5
43.8 47.1 43.8 47.1
CKT 2 NA NA 20.0 23.3 40.0 46.7
Filter Size for EBE in top of unit only 16 x 20 x 1
Filter Size for EBE in louvered door only 20 x 20 x 1
Shipping Weights 83 84 85 86 84 86
NOTES:
1. Casing or Cabinet must be permanently grounded in accordance with N.E.C. or other applicable codes.
2. Does Not require a Jumper.
3. Approved for Single Branch Circuit Service Only.
4. Jumper provided for Single Branch Circuit Only.
5. Requires Jumper Bars (P/N 3500-378P).
WARNING
For personal safety be sure to turn the electrical power OFF at the
household service box and at the furnace circuit breakers before
attempting any service or maintenance operations. Homeowners
should never perform any maintenance which requires opening
electric box door.
Furnace is equipped with a protective shield over field wiring con-
nection. When field wiring is completed, shield must be replaced to
prevent hazard of electrical shock when using furnace disconnect.
(See Figure 10.)
!
FIGURE 10: Field Wiring Shield
CIRCUIT
BREAKERS
ELECTRIC
PANEL
FIELD WIRING
PROTECTIVE
SHIELD
BLOWER
A0871-001
FIGURE 11: Control Box
TRANSFORMER
LIMIT
SWITCHES
GROUND
LUGS
3500-378P* JUMPER
BARS (FOR SINGLE
BRANCH CIRCUIT
SERVICE)
THERMOSTAT
WIRES
CIRCUIT
BREAKERS
SEQUENCERS
NOTE:
As Shipped, the jumper bar assembly
is set up for bottom entry. For side
entry, the top lug can be removed and
re-positioned, as shown, to provide
proper wire bending clearances.
A0345-001
To Next Page
