8 FX20/60 Supervisory Controllers Installation Instructions
Removing and Replacing the Cover
The FX20/FX60 cover is removable. You must remove
the FX20/FX60 cover to connect the battery on a new
unit, to replace the battery on an existing unit or to
install any optional communication cards. The cover
snaps onto the base with four plastic tabs (two on
each end). To remove the cover, press in the four tabs
on both ends of the unit and lift off the cover.
Note: If accessory modules are plugged into the
FX20/FX60, you may need to slide them away from
the unit to get to the cover tabs.
To replace the cover, position it so the cutout area for
the communication ports is correct, then push inward
to snap in place.

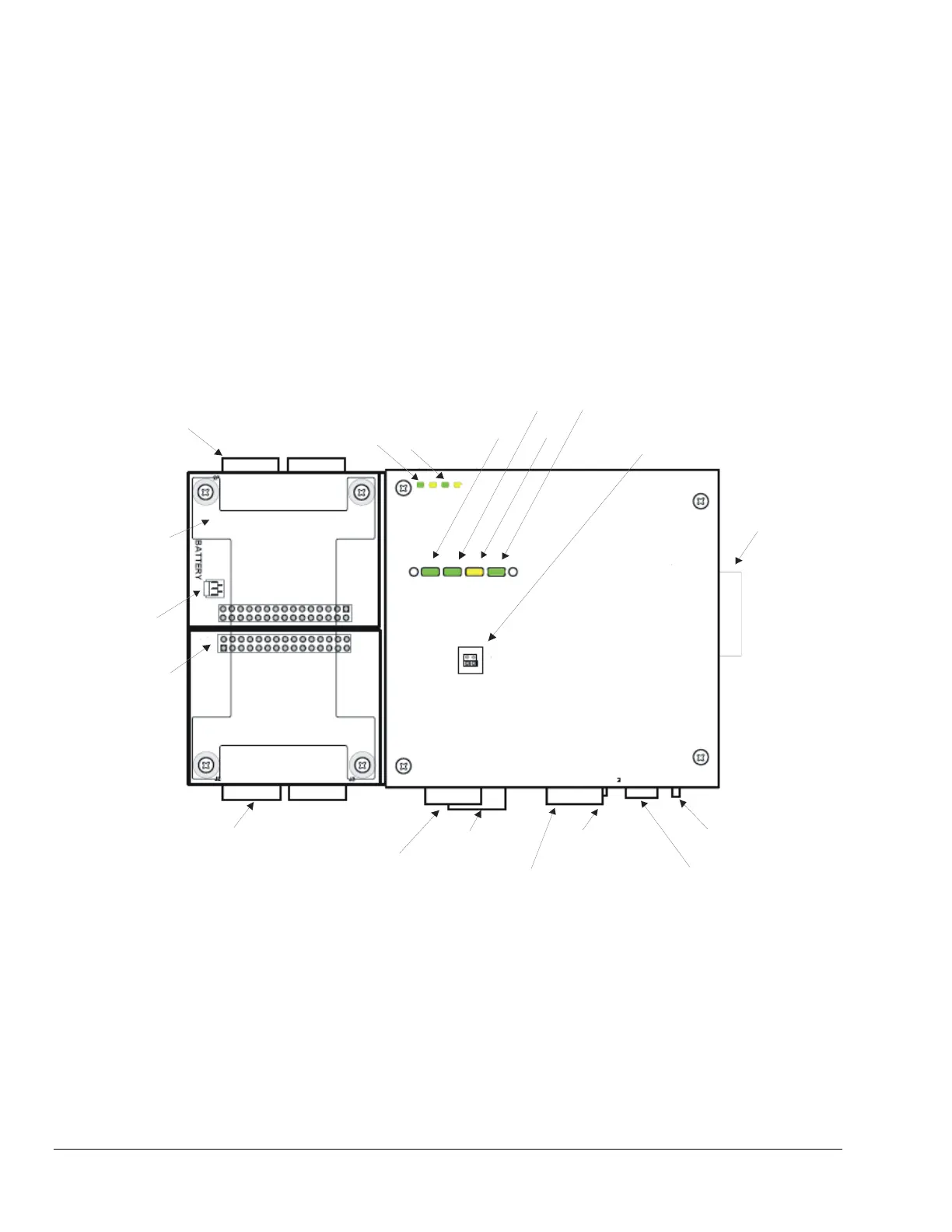

Board Layout
See Figure 6 for the location of Light-Emitting Diodes
(LEDs), option slots, and other features of the
FX20/FX60. See Figure 9 for a side view of
communication ports and other features.
FIG : BrdLyt
Option Slot 2
Serial port LEDs on bottom
board; remove cover to see.
COM1
COM2
LAN1
LAN2
Beat
Status
Mode Jumper (for
serial shell access)
20-pin
connector
(I/O and
power
modules)
Earth ground
spade lug
Barrel power
connector for
wall mounted
power module.
RS-485 (3-position)
COM2 (bottom board)
Primary Ethernet (RJ-45)
LAN1 (top board)
RS-232 (D-9)
COM1
Secondary Ethernet (RJ-45)
LAN2 (top board)
Option Slot 1
Battery Bracket
(on top of option
cards, if any)
Battery
Connector
Option Slot
Connectors
Figure 6: FX20/FX60 Board Layout Details
