RXF ROTARY SCREW COMPRESSOR UNITS
MAINTENANCE
070.410-IOM (JAN 12)
Page 37

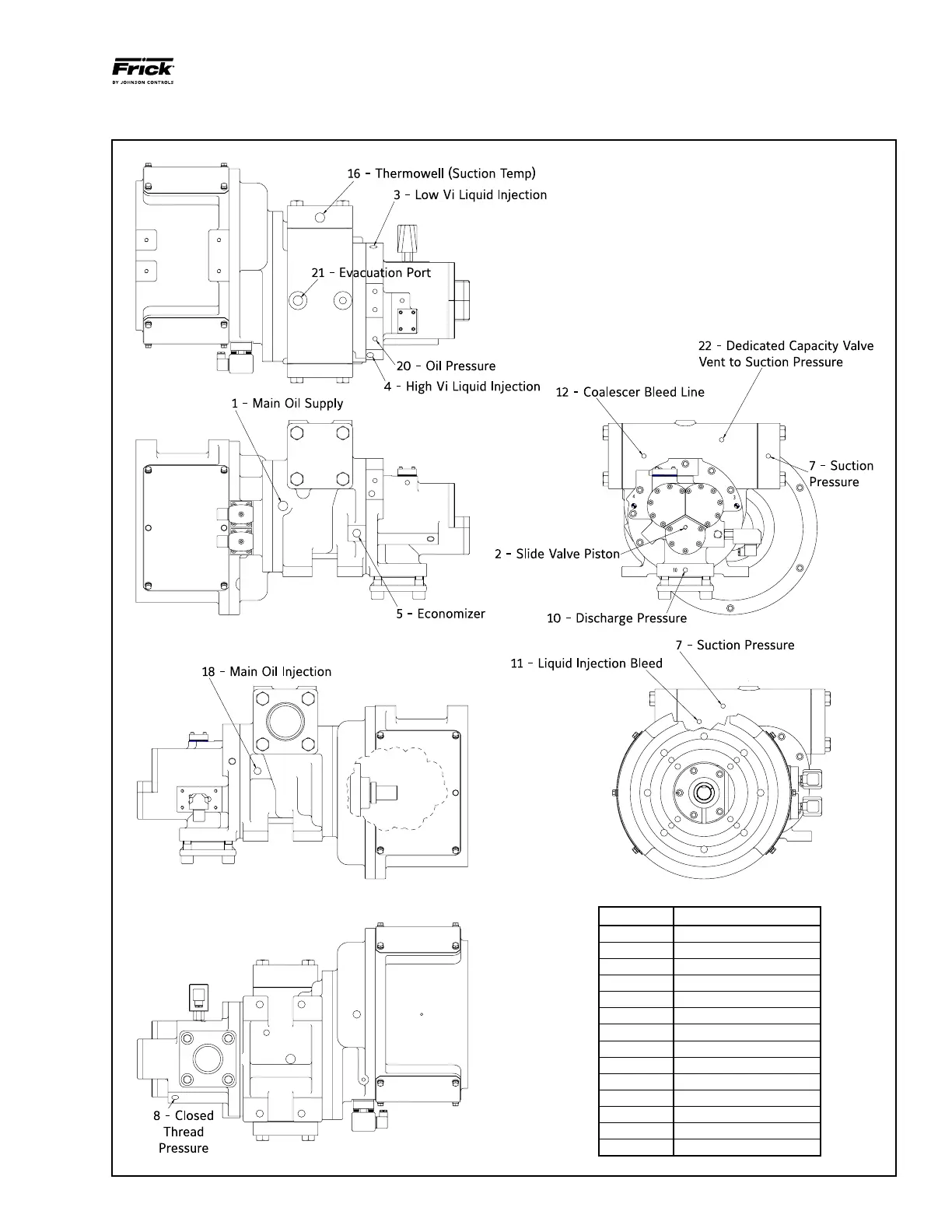

COMPRESSOR PORT LOCATIONS - RXF 12 - 19
PORT CONNECTION SIZE
1 3/4 - 14 NPTF
3 3/8 - 18 NPTF
4 3/8 - 18 NPTF
5 3/4 - 14 NPTF
7 1/4 - 18 NPTF
8 3/8 - 18 NPTF
10 1/4 - 18 NPTF
11 1/4 - 18 NPTF
12 1/4 - 18 NPTF
16 3/4 - 14 NPTF
18 1/2 - 14 NPTF
20 1/4 - 18 NPTF
21 3/4 - 14 NPTF
22 1/4 - 18 NPTF
