Johnson Controls Frick RXF 12 - RXF 58-101 Port Identification

RXF ROTARY SCREW COMPRESSOR UNITS
MAINTENANCE
070.410-IOM (JAN 12)
Page 40

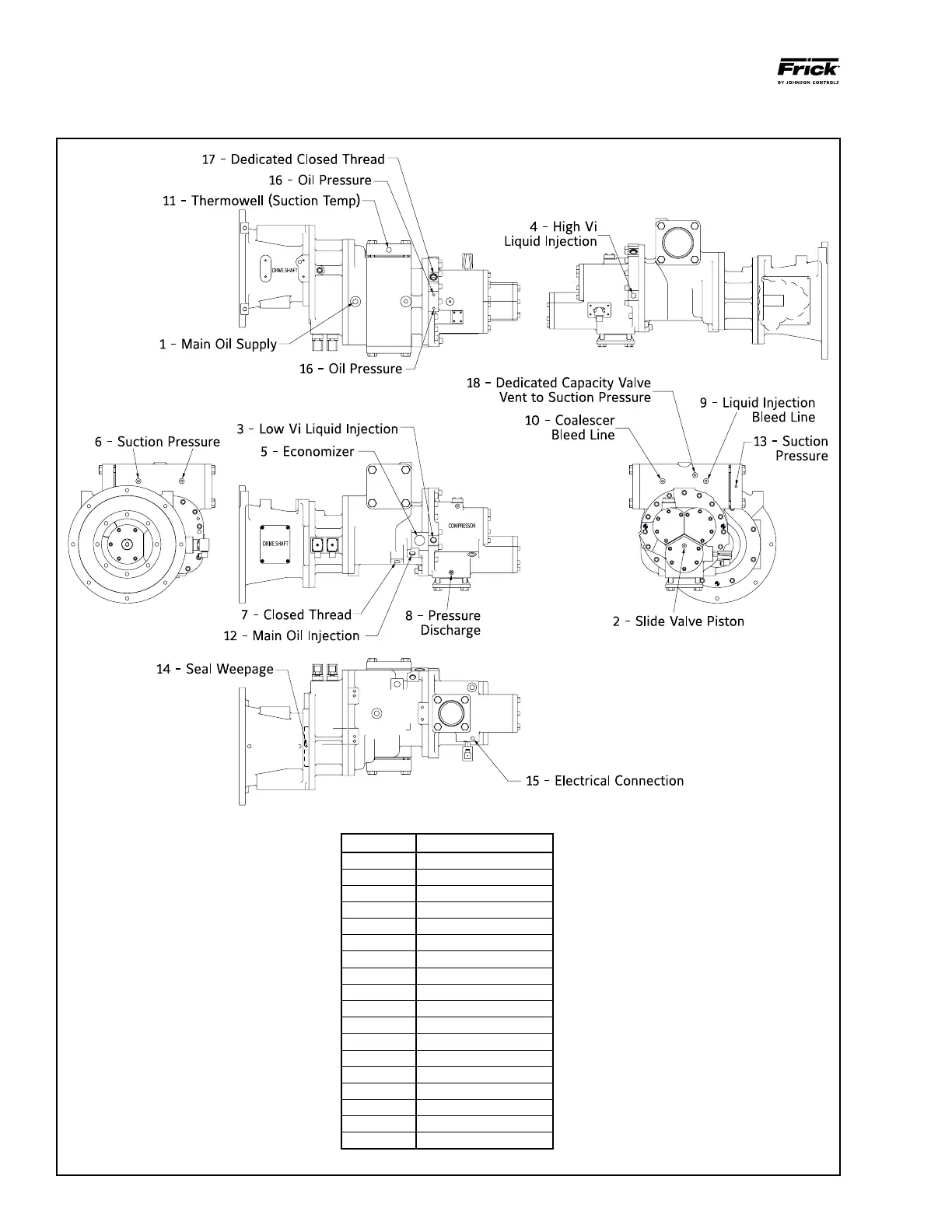

COMPRESSOR PORT LOCATIONS - RXF 58 - 101
PORT CONNECTION SIZE
1
1Z\zn - 12UN-2B
2 7/16 - 20UNF-2B
3
1Z\zn - 12UN-2B
4
1Z\zn - 12UN-2B
5
1M\, - 12UN-2B
6 9/16 - 18UNF-2B
7
1Z\zn - 12UN-2B
8 7/16 - 20UNF-2B
9 9/16 - 18UNF-2B
10 9/16 - 18UNF-2B
11 3/4 - 14 NPTF
12
1Z\zn - 12UN-2B
13 1/4 - 18 NPTF
14 1/8 - 27 NPTF
15 1/2 - 14 NPTF
16 9/16 - 18UNF-2B
17
1Z\zn - 12UN-2B
18 9/16 - 18UNF-2B
