VYPER
™
VARIABLE SPEED DRIVE
INSTALLATION
S100-200 IOM (MAY 08)
Page 11

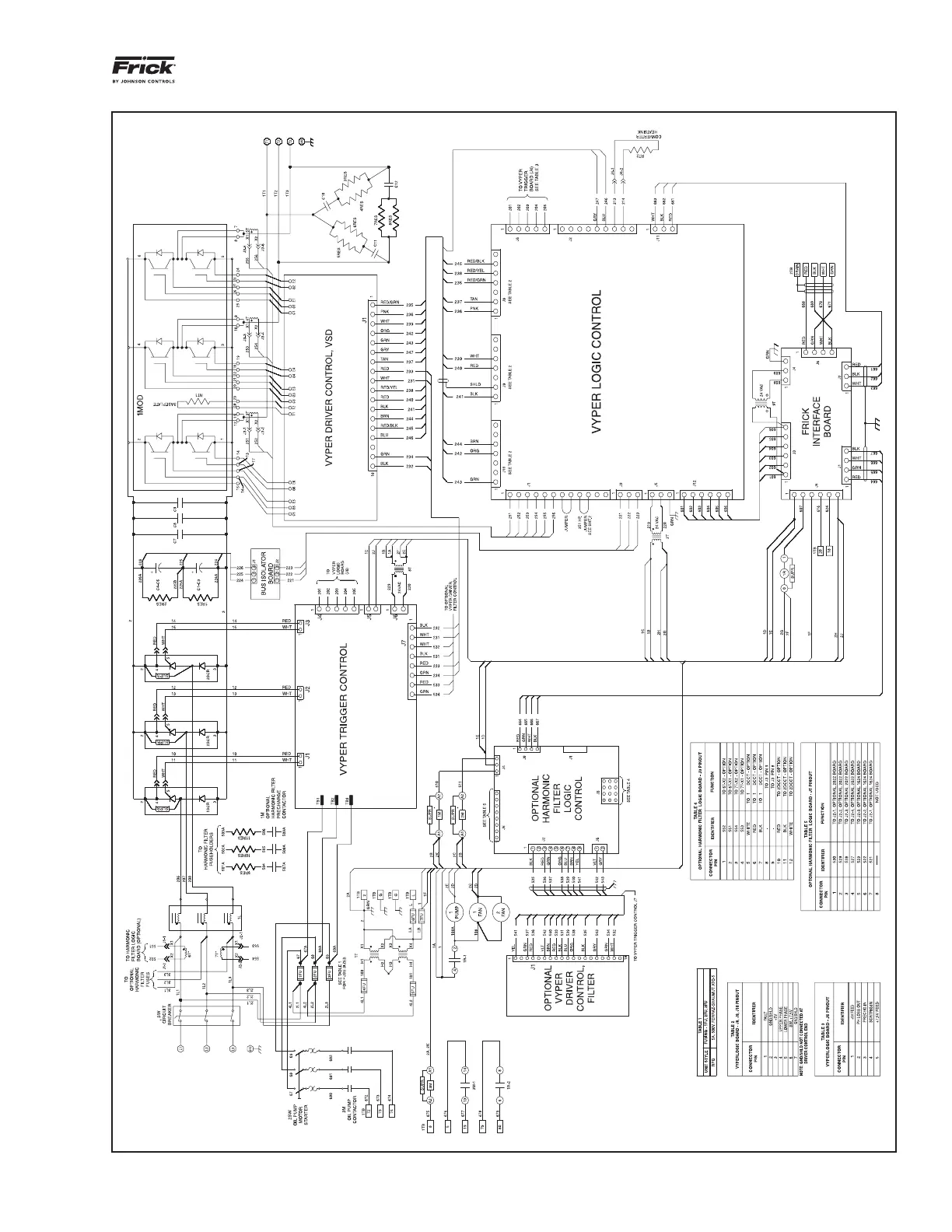

Figure 6 - Vyper
™
Elementary Wiring Diagram
NOTE: Drawings for specifi c units can be
found in the door of the Vyper drive or
check with Frick Engineering department.
