Johnson Controls Frick vyper VYA PG -46 - Wiring Entry Locations

VYPER
™
VARIABLE SPEED DRIVE
INSTALLATION
S100-200 IOM (MAY 08)
Page 19
Dimensions in Inches *
Drive HP ABCDEFGHJK
305/254 1.63 4.50 9.00 6.38 4.38 35.00 5.50 3.56 6.63 2.00
437/362 6.63 6.75 10.13 2.00 3.25 40.53 2.25 3.00 13.00 2.00
*Contact factory for detailed dimensions.

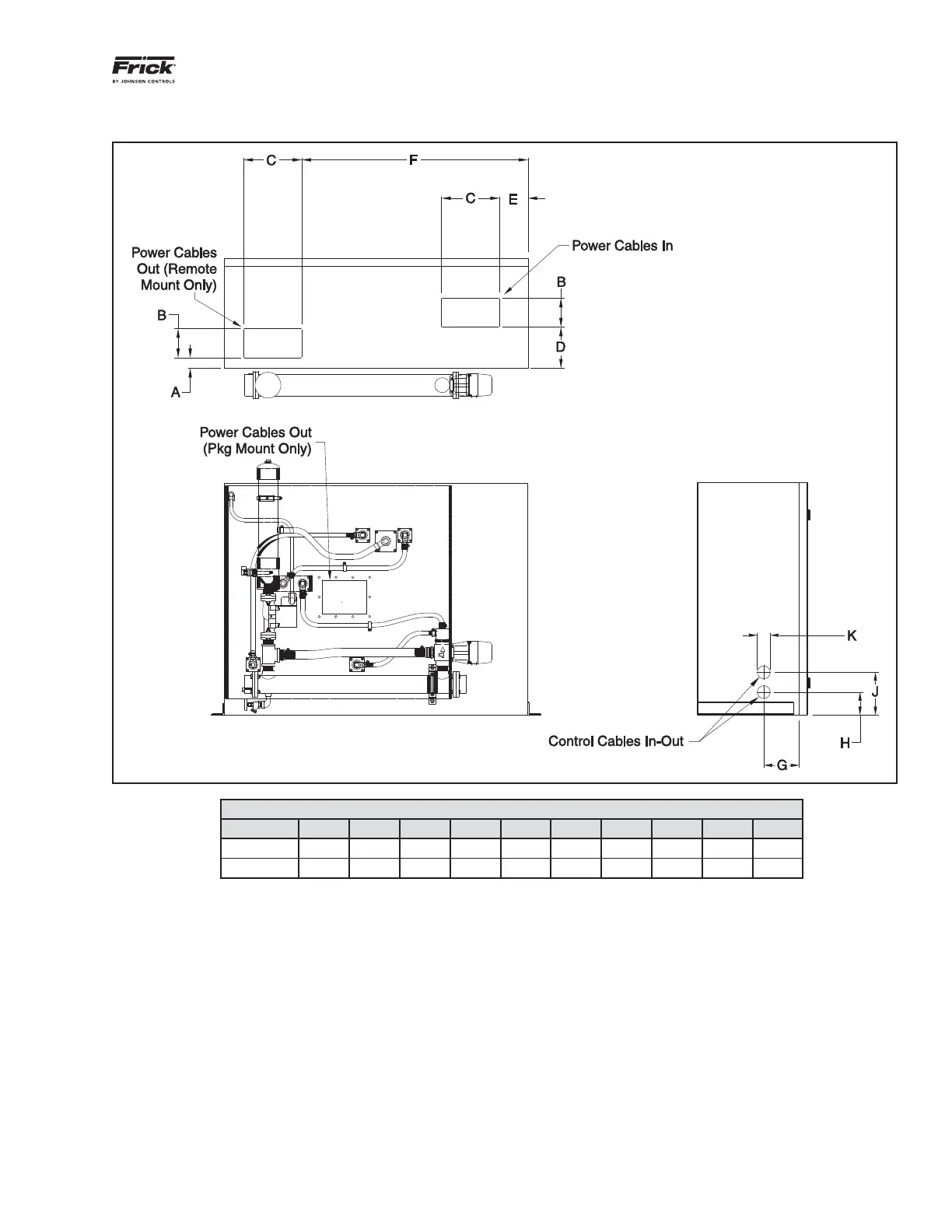

POWER AND CONTROL WIRING ENTRY LOCATIONS
