VYPER
™
VARIABLE SPEED DRIVE
OPERATION
S100-200 IOM (MAY 08)
Page 35
PID SETUP
Press: [Setpoints→PID Setup]

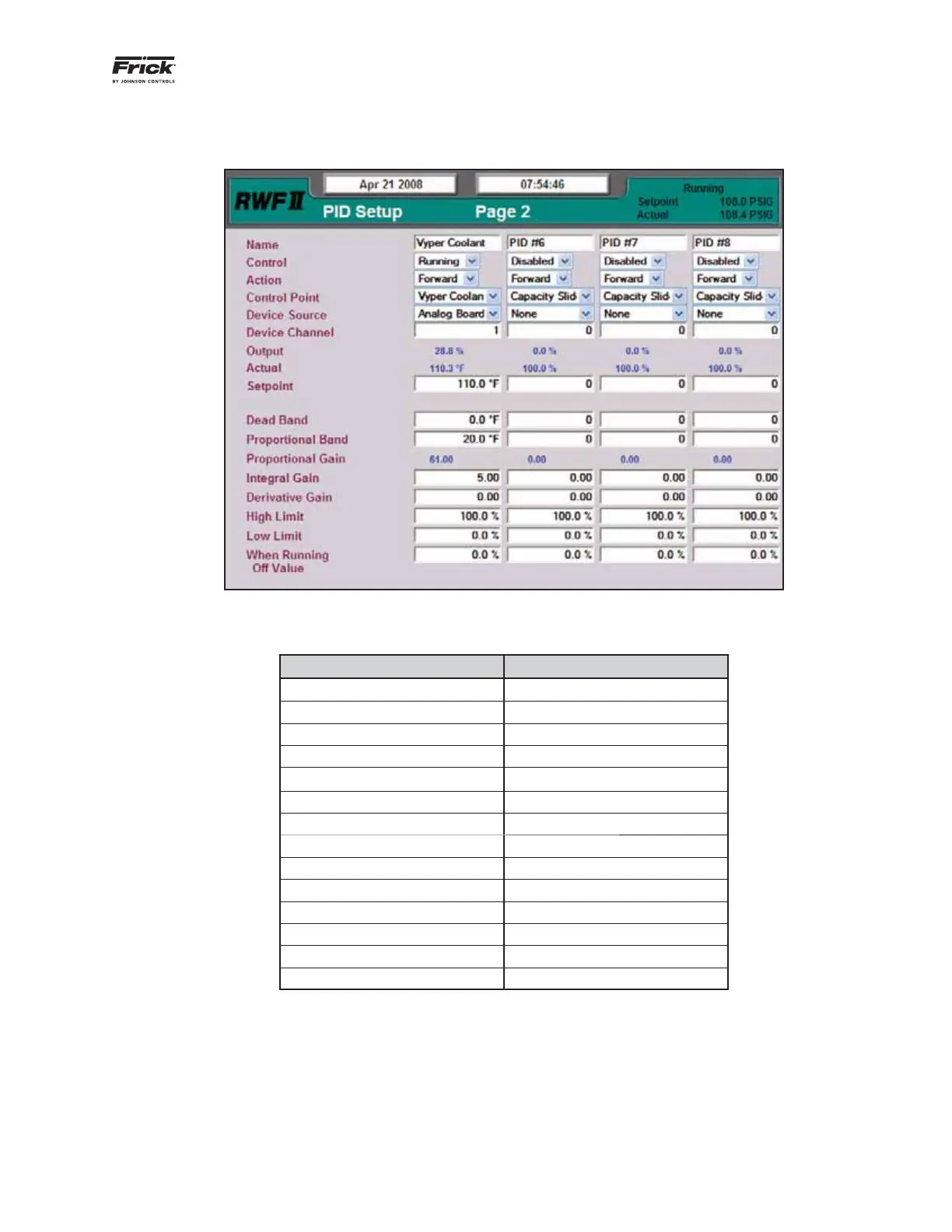

Figure 43 - PID Setup
Drive cooling is set to PID Channel #5. Use the table below to program the proper settings.
Parameter Value
Name Drive Cooling
Control Running
Action Forward
Control Point Vyper
™
Coolant*
Device Source Analog Board #2
Device Channel 1
Setpoint 110°F
Dead Band 0°F
Proportional Band 20°F
Integral Gain 5.0
Derivative Gain 0
High Limit 100%
Low Limit 0%
When Running OFF Value 0%
