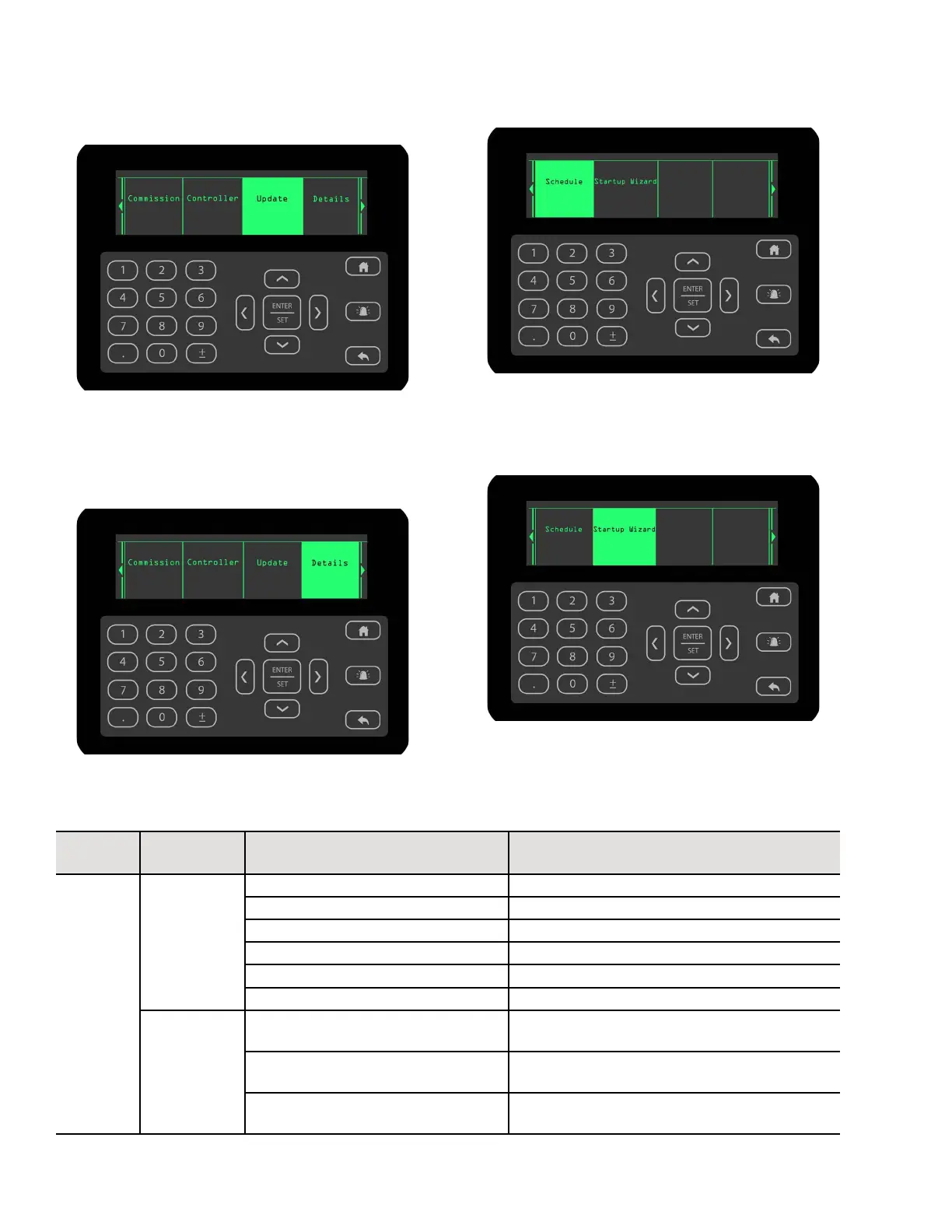

Update Menu – Used to load firmware, restore, clone,
and export trends. Update functions require the use of
a USB port provided on the main board.
LD28020
Figure 30: Update Menu
Details Menu – Provides the user with enhanced unit
information during setup and service by expanding into
each feature provided in the unit.
LD28021
Figure 31: Details Menu
Schedule Menu – Used by the user to set up unit
schedules.
LD28022
Figure 32: Schedule Menu
Start-Up Wizard Menu – Presents a well-defined se-
quence of steps to be performed to start the rooftop unit.
LD28023
Figure 33: Start-Up Wizard Menu
Table 26: Menus and Submenus
Menu Submenu Parameters Displayed / Default
Conditions for Parameters Displayed
Units / Range
Status
(Figure 24)
Thermostat
Y1 - Thermostat Off, On
Y2 - Thermostat Off, On
W1 - Thermostat Off, On
W2 - Thermostat Off, On
G - Thermostat Off, On
Humidistat Off, On
SmokeCtrl
OprSafetyCmd (Operating Safety
Command) / Normal
Normal, Pressurize, Depressurize, Purge,
Shutdown, Pre-Shutdown
SafetyCmdSrc (Safety Command
Source) / Local Input
Unreliable, Local Input, Network Sensor, High
Priority, BAS Override, Input Not Available
Safety1 (Local Safety Command Input 1)
/ False
False, True
