Johnson Controls GVC Series User Manual

Johnson Controls
5586996-JSG-A-0120 | Start-Up & Operation Guide
98
LD28041

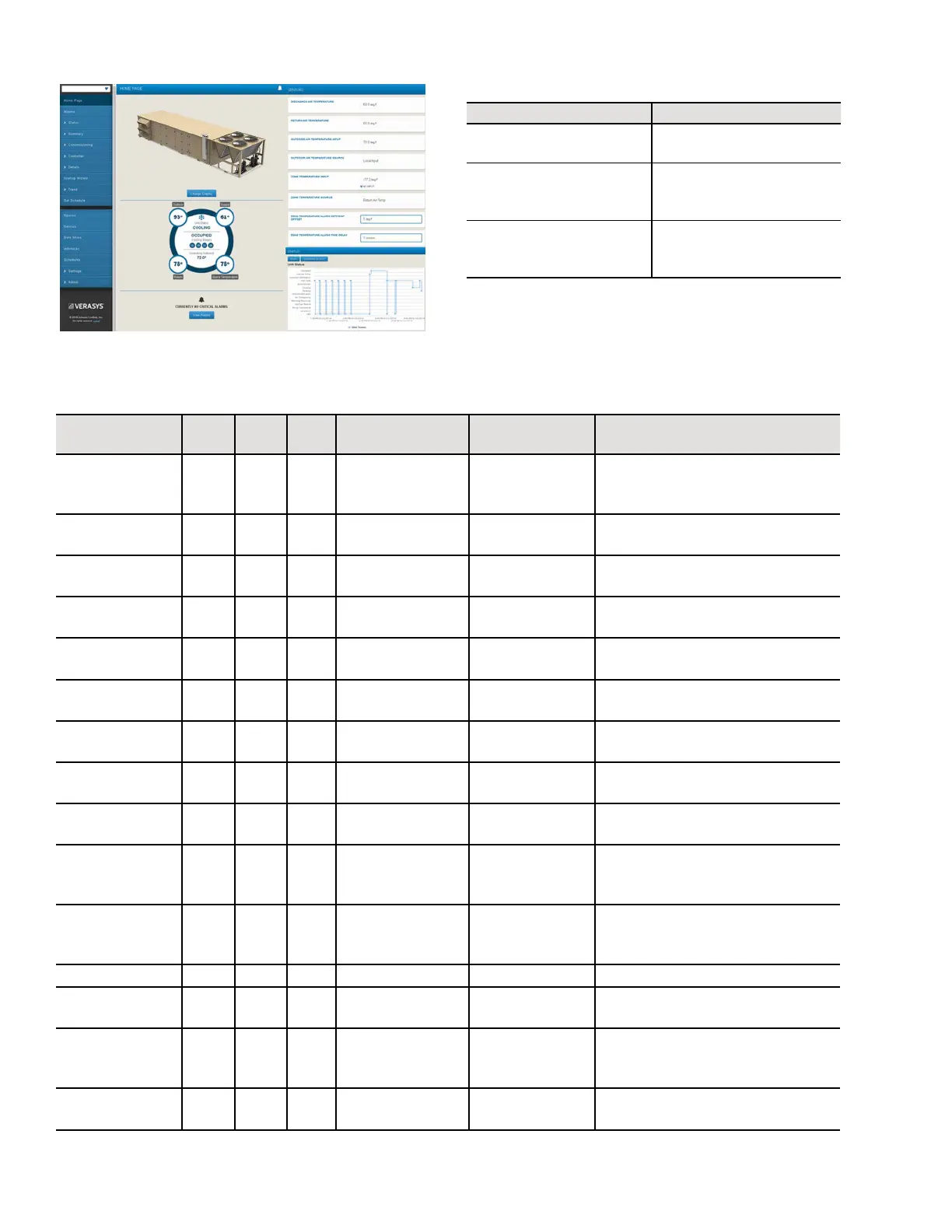

Figure 44: Verasys Dashboard
Table 31: Verasys Related Documentation
Topic Document
Technical specications
Smart Building Hub Catalog
Page (LIT-1901080)
Getting up and running
quickly with the MAP
gateway
Smart Building Hub Quick
Start Guide
(Part No. 24-10737-00229)
Installing and wiring a SBH
Smart Building Hub
Installation Instructions
(Part No. 24-10737-00237)
Table 32: BACnet Points List
BACnet
Attributes
Object
Type
Object
ID
Read/
Write
Short Description
Long
Description
Point Denitions (Units)
TempOccTimeout AV 29521 R/W TempOccTimeout
Temporary
Occupancy
Timeout
A BAS command to adjust temporary
occupancy timeout (30–480 minutes)
OprZT AV 29522 R OprST
Operational Zone
Temperature
Displays the active ZT (°F)
ZTAlarmOffset AV 29524 R/W ZTAlarmOffset
ZT Alarm Setpoint
Offset
A BAS command to adjust ZT alarm
setpoint offset (0.0–25.0°F)
ZTAlarmDelay AV 29525 R/W ZTAlarmDelay
ZT Alarm Time
Delay
A BAS command to adjust ZT alarm
time delay (0–120 minutes)
NetZT AV 29526 R/W NetZT
Network Override
ZT
A BAS command to adjust network
override ZT (0.0–100.0°F)
OprIAQ AV 29527 R OprIAQ Operational IAQ
Displays the active indoor air CO
2
(PPM)
NetIAQ AV 29530 R/W NetIAQ
Network Override
IAQ
A BAS command to override indoor
air CO
2
(0–5,000 PPM)
OprZH AV 29531 R OprSH
Operational
Space Humidity
Displays the active space humidity
(%RH)
NetSH AV 29533 R/W NetSH
Network Override
Zone Humidity
A BAS command to override zone
humidity (0–100 %RH)
OprSSO AV 29537 R OprSSO
Operational Zone
Temperature
Setpoint Offset
Displays the operational zone
temperature setpoint offset (Δ°F)
NetSSO AV 29540 R/W NetSSO
Network Override
Space Setpoint
Offset
A BAS command to override space
setpoint offset (-5.0 to 5.0 Δ°F)
OprOAT AV 29541 R OprOAT Operational OAT Displays the active OAT (°F)
NetOAT AV 29543 R/W NetOAT
Network Override
OAT
A BAS command to override OAT
(-50.0 to 125.0°F)
OprOAH AV 29544 R OprOAH
Operational
Outdoor Air
Humidity
Displays the active outside air
humidity (%RH)
OA-Enth AV 29545 R OA-Enth
Outdoor Air
Enthalpy
Displays the active outside air
enthalpy (BTU/lb)
