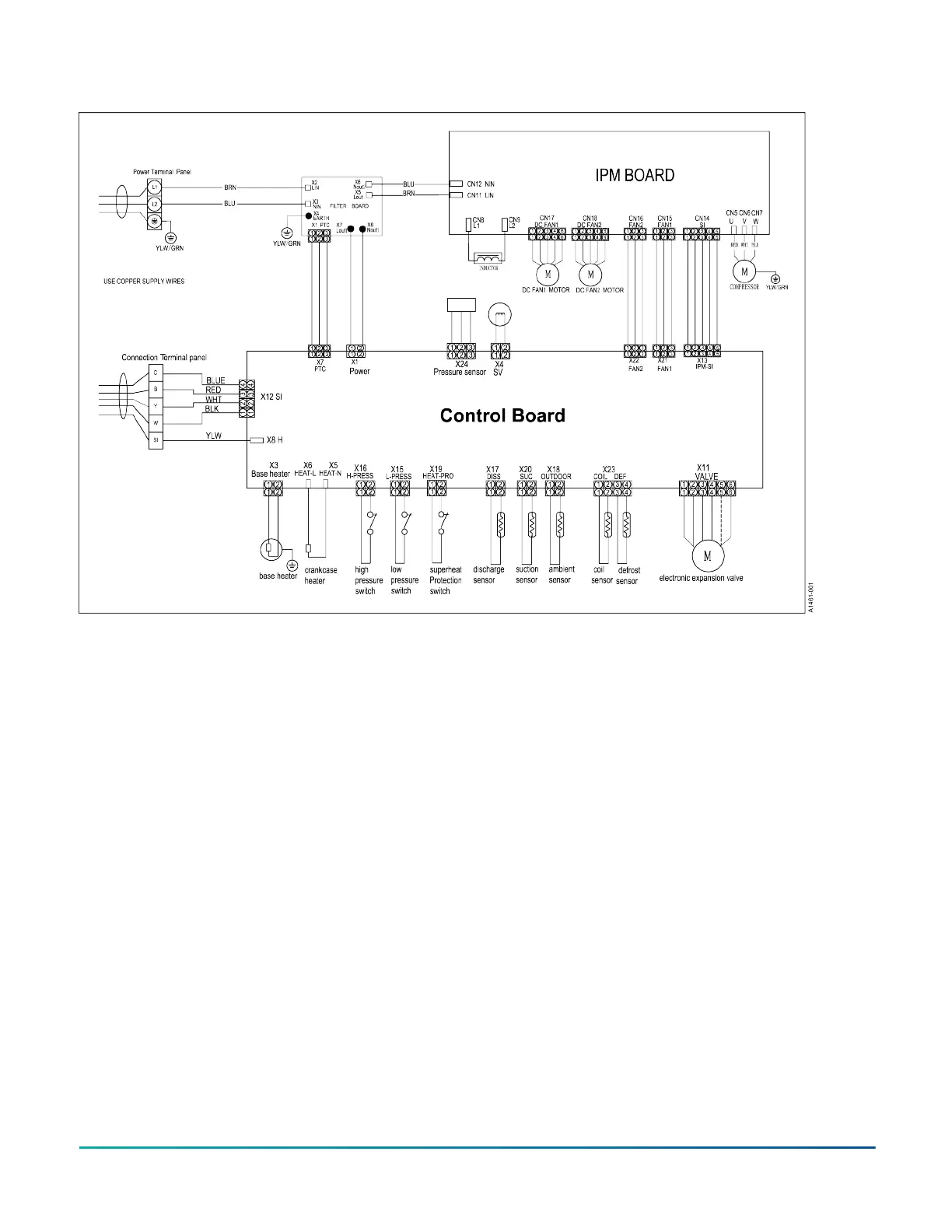

Figure 25: HMH72B48 and HMH72B60 electrical wiring diagram
For DIP switch settings, see Setting the DIP switch of the outdoor unit.
Installation Manual: HMH7 Series - 17 SEER Horizontal Discharge Modulating Heat Pump 23
