SYSTEM TESTS
QOLSYS CONFIDENTIAL AND PROPRIETARY
PAGE OF 138 198

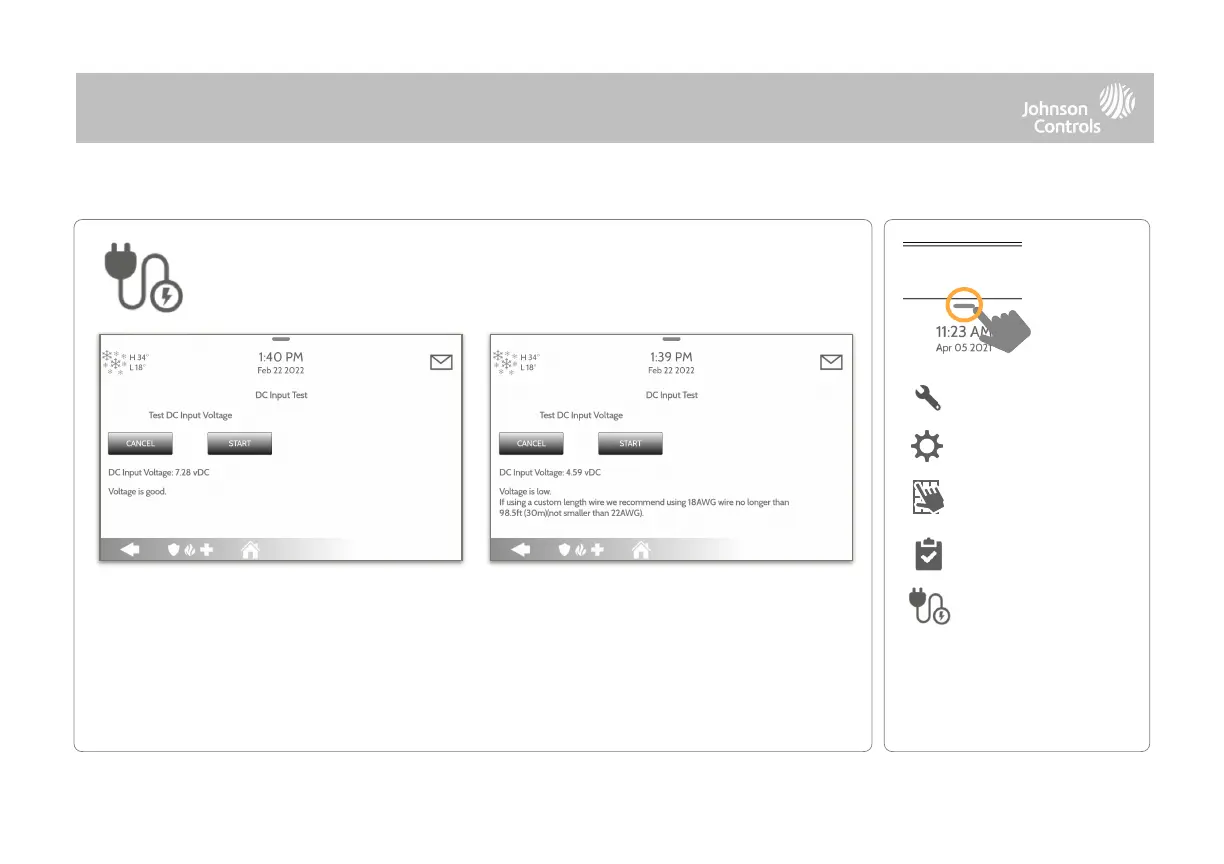

Input Voltage Test
Measure the voltage received at the Panel in real-time.
If voltage is below 6vDC, you will receive a
“Voltage is Low” message and action
should be taken to correct the low voltage
condition (i.e. use thicker gauge wire or
shorten the wire run).
Note: Wire run length and gauge should not exceed
UL specification.
INPUT VOLTAGE TEST
FIND IT
SYSTEM TESTS
Swipe down
for access
SETTINGS
ADVANCED SETTINGS
ENTER CODE (1111, 2222)
Press “Start” to run a real-time voltage test
on the Panel. If voltage received is above
6vDC, you will get a “Voltage is Good”
message.
Note: Test results may vary each time you run the test
based on current draw of the panel at that time.
INPUT VOLTAGE TEST
