Johnson Controls J ZH Series User Manual

5566217-JIM-C-1019
10 Johnson Controls Ducted Systems

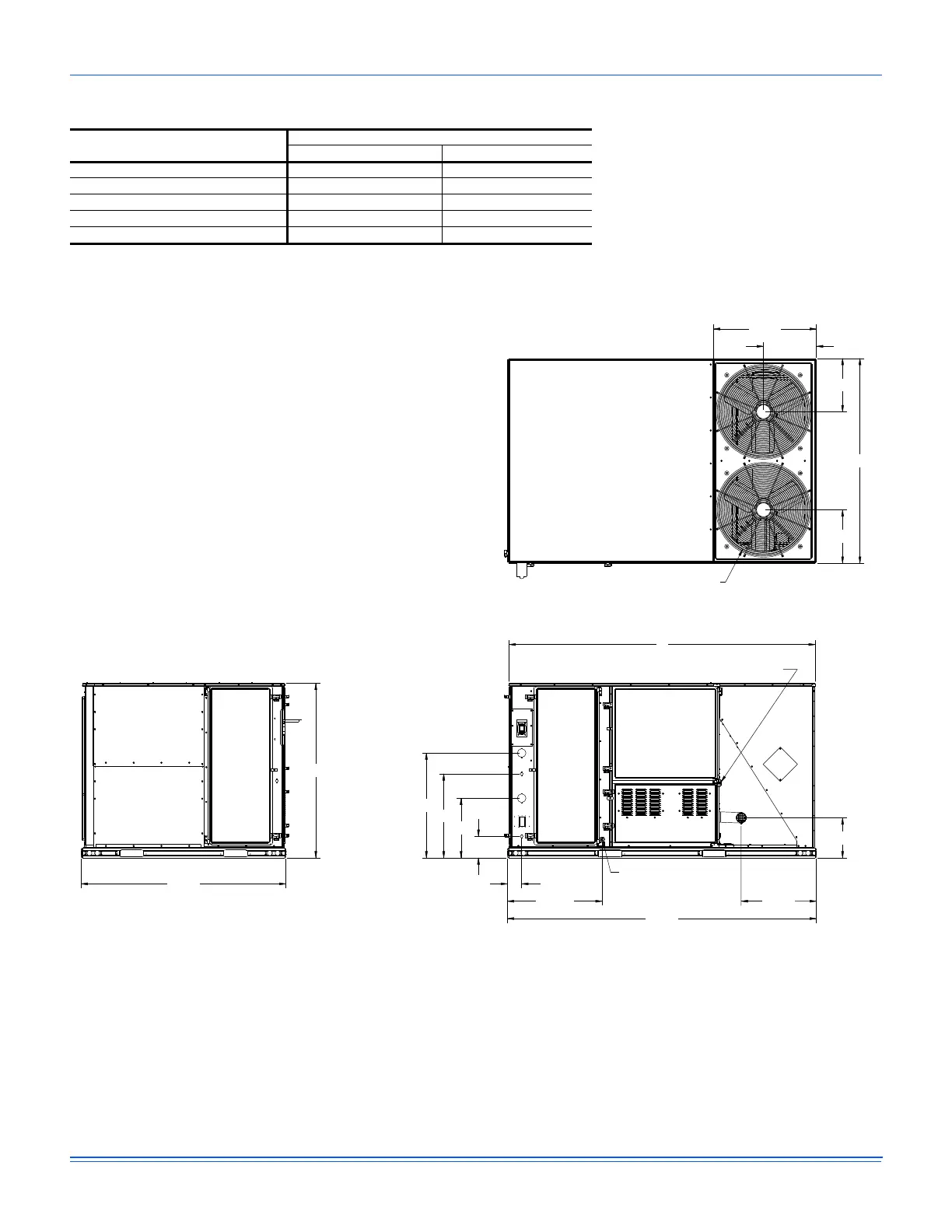

Figure 8: J06 through 10ZH physical dimensions
Table 4: J06 through 12ZH unit accessory weights
Unit accessory
Weight (lbs.)
Shipping Operating
Economizer 90 85
Power exhaust 40 35
Electric heat
1
1. Weight given is for the maximum heater size available (54KW).
49 49
Gas heat
2
2. Weight given is for the maximum number of tube heat exchangers available (8 tube).
110 110
Variable frequency drive
3
3. Weight includes mounting hardware, controls, and the manual bypass option.
30 30
LEFT
A
59.00
C
D
E
F
4.19
27.31
89.00
21.19
11.38
15.38
59.00
15.38
29.69
15.25
FRONT
SEE DETAIL B
FOR DRAIN LOCATION
SEE DETAIL A FOR GAS INLET
B
2X Ø 24.38
