Johnson Controls J ZH Series User Manual

5566217-JIM-C-1019
Johnson Controls Ducted Systems 15

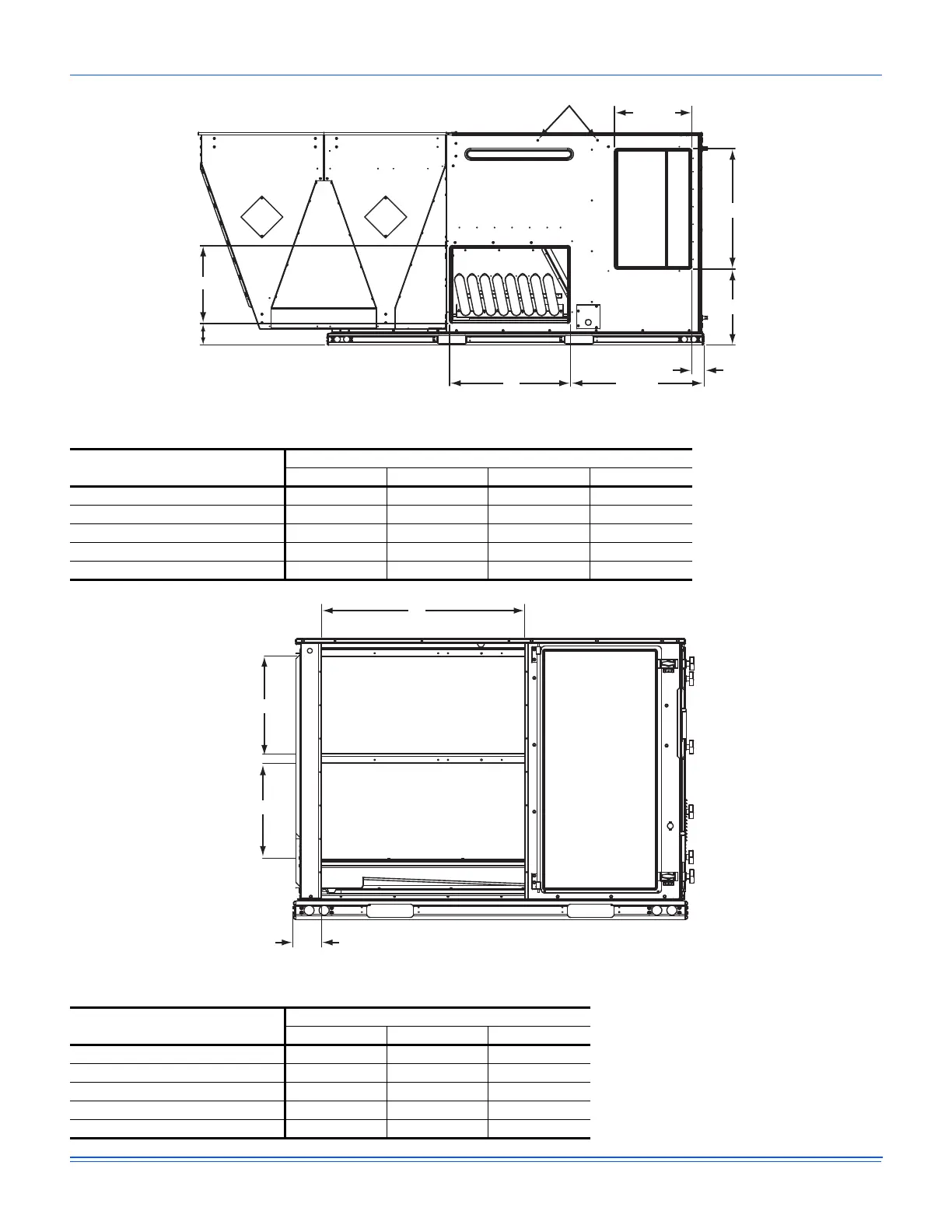

Figure 13: J12ZH unit side duct openings
Figure 14: J06 through 12ZH unit left/end duct opening
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 7: Side duct dimensions
Unit model number
Dimension (in.)
ABCD
J06ZH 27 3/4 12 1/16 27 1/2 16
J07ZH 27 3/4 12 1/16 27 1/2 16
J08ZH 28 1/4 18 1/16 28 1/4 18 1/4
J10ZH 28 1/4 18 1/16 28 1/4 18 1/4
J12ZH 28 1/4 18 1/16 28 1/4 18 1/4
4-5/16
A
C
B
Table 8: Left/end duct dimensions
Unit model number
Dimension (in.)
ABC
J06ZH 30.357 13.365 22.516
J07ZH 30.357 13.365 22.516
J08ZH 30.358 22.580 22.330
J10ZH 30.358 22.580 22.330
J12ZH 30.358 22.580 22.330
