Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
THE LENGTH OF THE FORKS MUST BE A MINIMUM OF 60
INCHES.

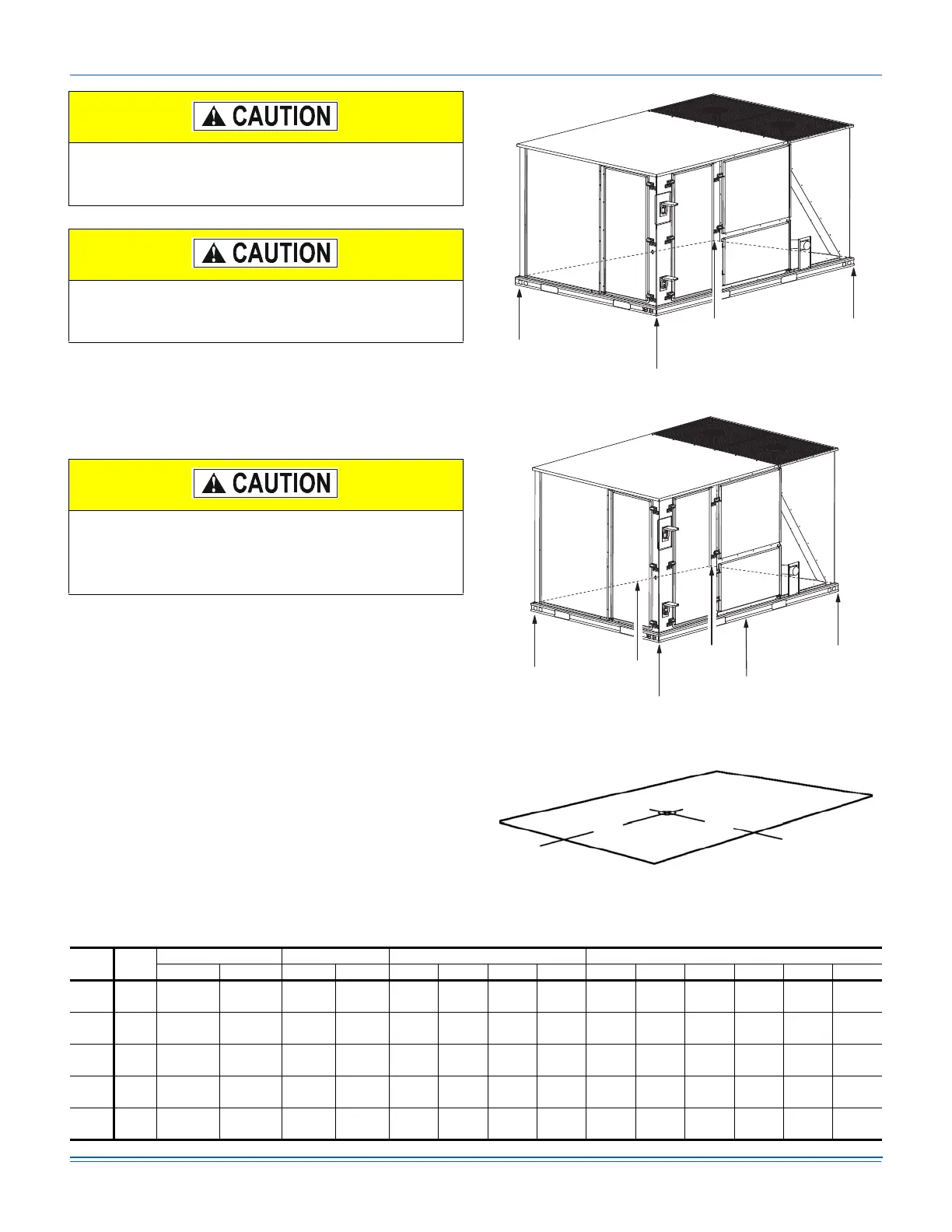

Figure 5: Unit 4 point load weight
Figure 6: Unit 6 point load weight
Figure 7: Center of gravity
If a unit is installed on a roof curb other than a Johnson
Controls roof curb, you must apply gasketing to all
surfaces that come in contact with the unit underside.
Before lifting the unit, make sure that the unit weight is
distributed equally on the rigging cables so that it lifts
evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils must be protected from rigging
cable damage with plywood or other suitable material.
D
A
CB
LEFT
FRONT
D
A
C
B
E
F
LEFT
FRONT
X
Y
LEFT
FRONT
Table 3: Weights and dimensions
Size
(tons)
Model
Weight (lbs.) Center of gravity 4 point load location (lbs.) 6 point load location (lbs.)
ShippingOperatingX Y ABCDABCDEF
J06
(6.5)
ZH
916 911 47.25 24.00 174 197 287 254 114 123 134 195 180 166
J07
(7.5)
ZH
900 895 48.25 25.34 176 208 277 234 114 127 143 190 169 152
J08
(8.5)
ZH
1037 1032 47.25 24.75 203 230 318 281 133 144 156 216 199 184
J10
(10)
ZH
1095 1090 45.00 25.50 233 238 313 306 155 157 159 209 206 203
J12
(12.5)
ZH
1285 1280 49.75 24.50 234 297 418 330 150 175 206 290 246 212
