6112628-UIM-B-0622
Johnson Controls Ducted Systems 21
Section XVI: Wiring diagram

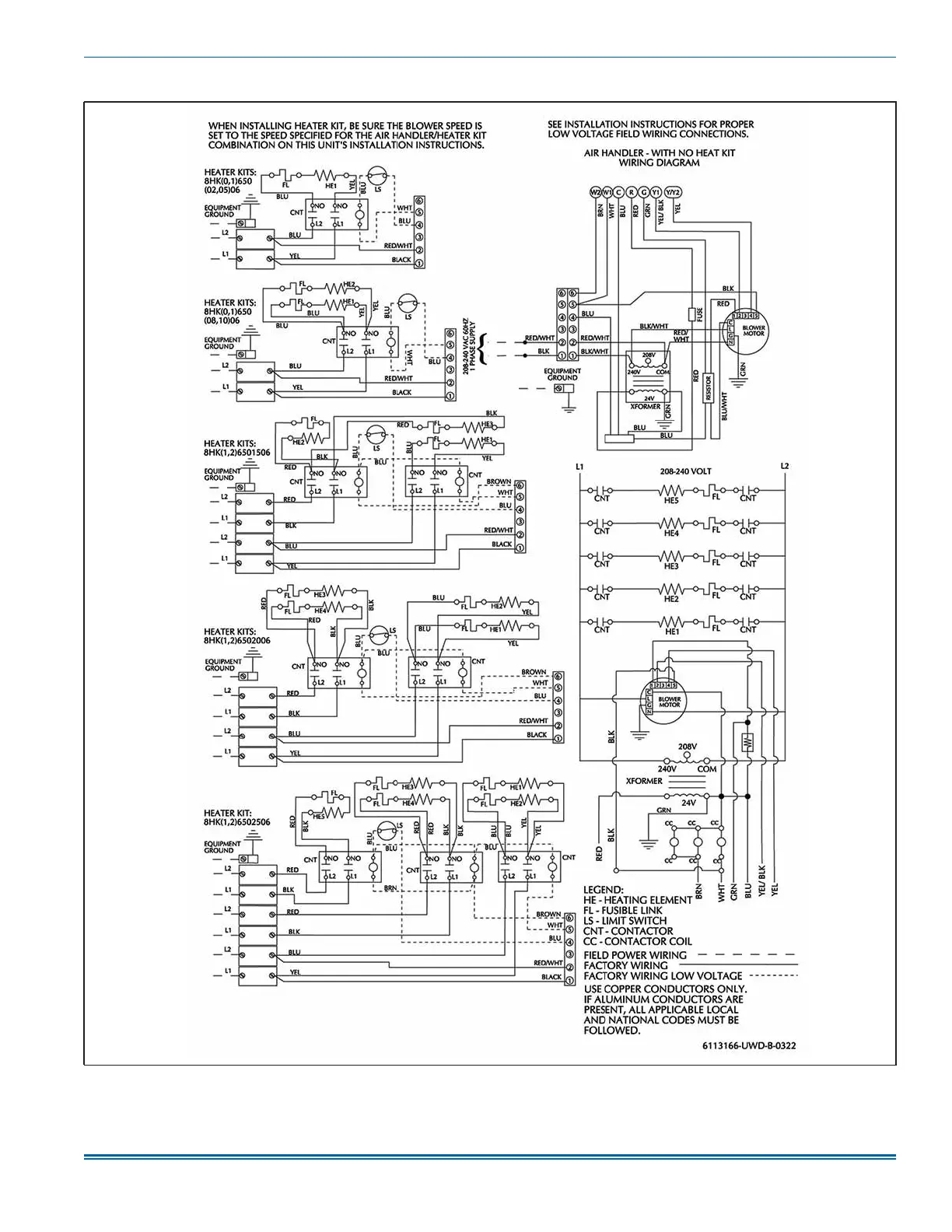

Figure 20: Wiring diagram - standard ECM - single phase heat kits
