Johnson Controls METASYS Series User Manual

10 Zone Terminal Installation Sheet
Using the wall mounting base, follow the instructions below to mount the
Zone Terminal on a UPM.
Zone
Terminal
Mounted on
the Outside
ztcontr
M ET A SY S
AHU103
N2
Zone
Bus
A LA R M

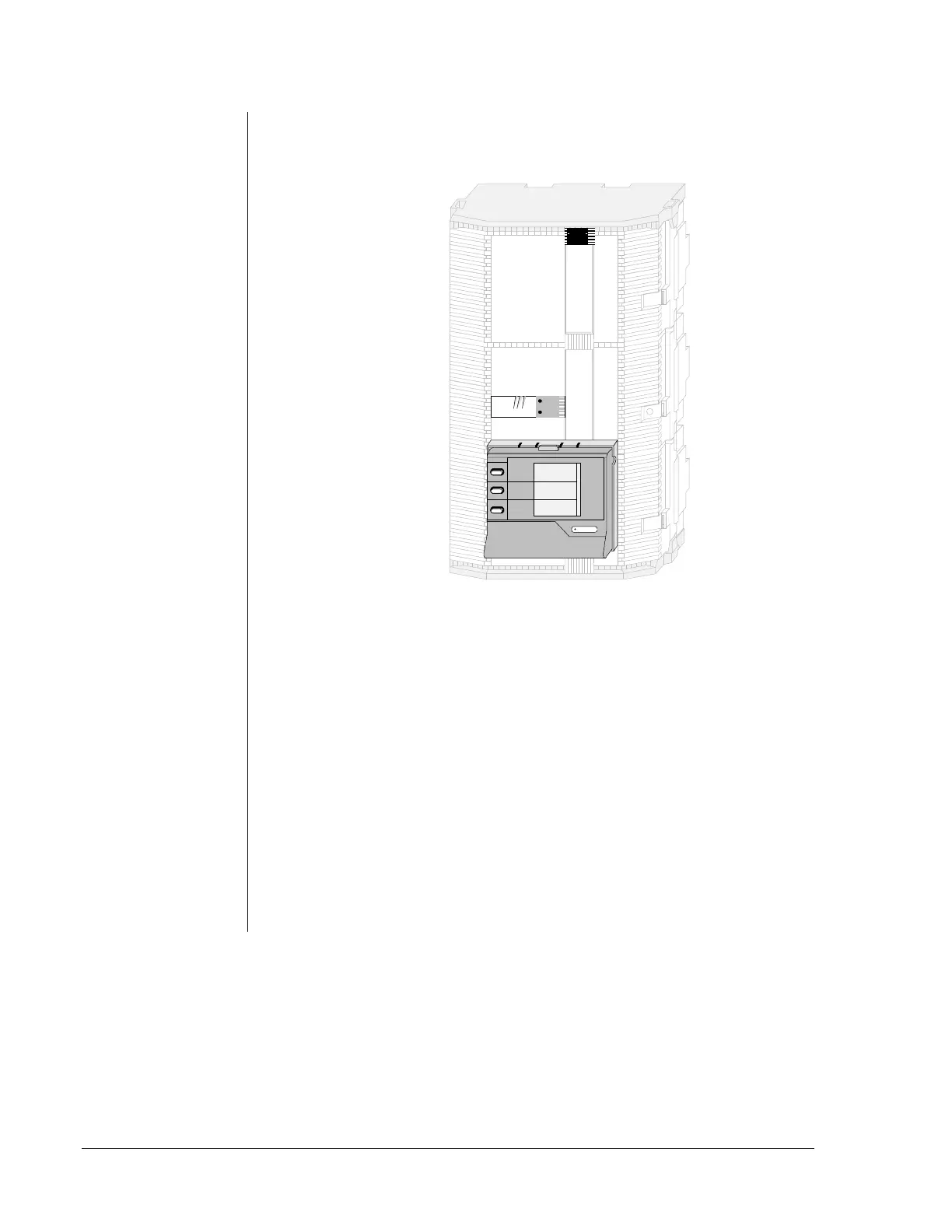

Figure 9: Mounting the Zone Terminal on a UPM
1. Position the Zone Terminal Wall Mounting Base flush on the cover at
eye level (approximately 65 inches from the floor to top of ZT).
2. Mark mounting holes.
3. Mark cable hole.
4. Drill three size 3/32 inch pilot holes for mounting the base.
5. Drill 5/8 to 1 inch hole for cable.
6. Mount the base to the UPM cover using three No. 6 thread forming or
sheet metal screws. Use a No. 6 x 3/4 inch screw for the top hole and
two No. 6 x 1/2 inch screws for the bottom screws.
Mounting the ZTU
Externally on the
UPM

Johnson Controls METASYS Series Specifications

General

Product Series	METASYS Series
Category	Touch Terminals
Operating System	Embedded Linux
Memory	1GB RAM
Connectivity	Ethernet, USB
Mounting	Wall or panel mount
Operating Temperature	0°C to 50°C
