Zone Terminal Installation Sheet 9
For office or other types of remote connections, attach the Wall Mount to
a flat surface or wall. Use three screws and plastic anchors (not
provided). For easy reading, mount the ZT at least 65 inches from the
floor to the top of the ZT.
1. Position the Zone Terminal Wall Mounting Base on the wall.
2. Mark the three mounting hole locations and remove the base.
3. Drill three holes for No. 6 anchors (not included) and install the
anchors for mounting the base.
4. Thread the ZTU cable through the access hole in the back of the base.
5. Secure the Wall Mounting Base to the wall with three No. 6 screws.
6. Plug the ZTU cable in the back of the ZTU, and snap the ZTU into
the base.
WALMTZT

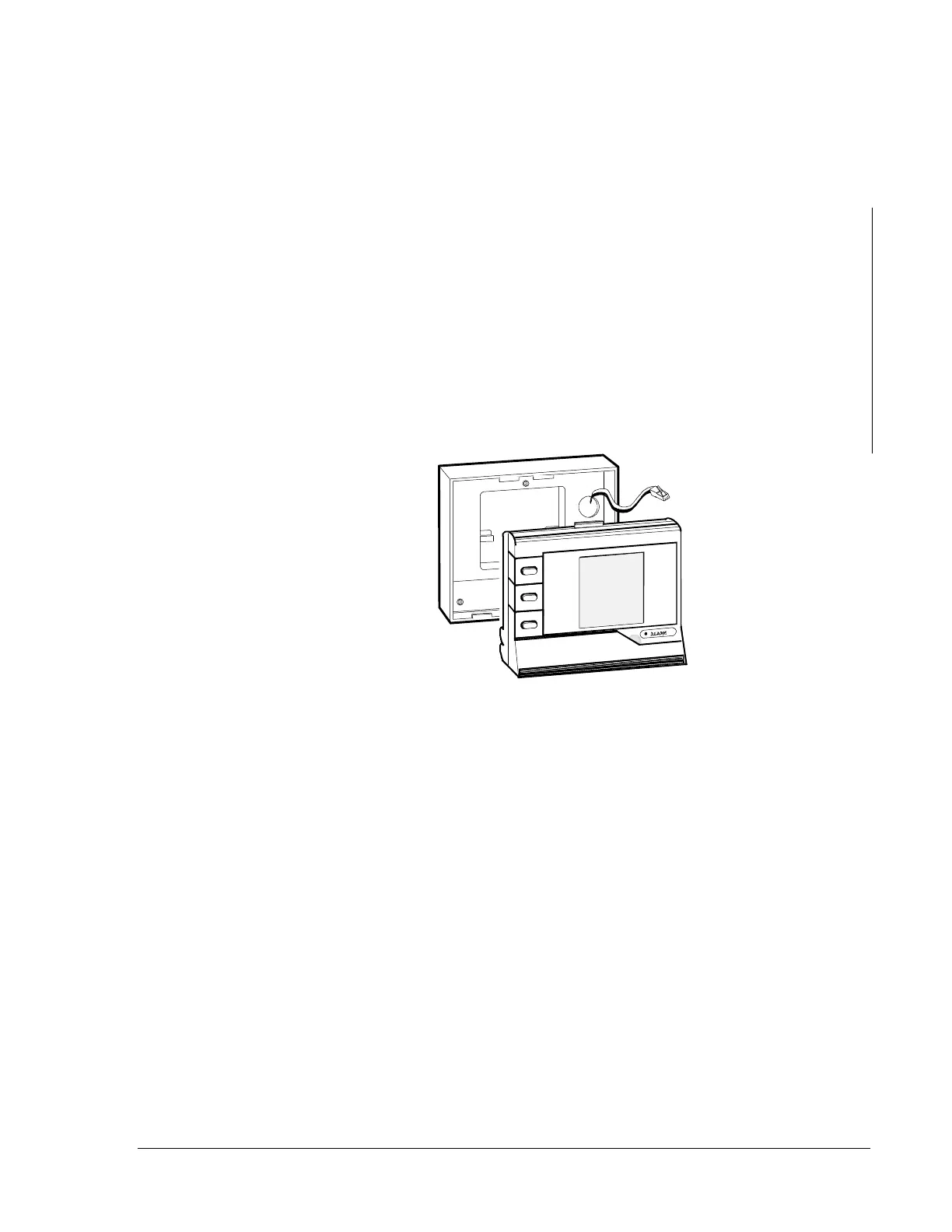

Figure 8: Attaching ZT and Wall Mount
Wall Mount
Installation

Johnson Controls METASYS Series Specifications

General

Product Series	METASYS Series
Category	Touch Terminals
Operating System	Embedded Linux
Memory	1GB RAM
Connectivity	Ethernet, USB
Mounting	Wall or panel mount
Operating Temperature	0°C to 50°C
