12 Zone Terminal Installation Sheet

Use a large flat-head screwdriver and insert it in the bottom where the ZT

and mounting base come together. Gently pry the ZT out of the mounting

base. As you push the screwdriver in, the ZT slides up and then out.

REMOVAL

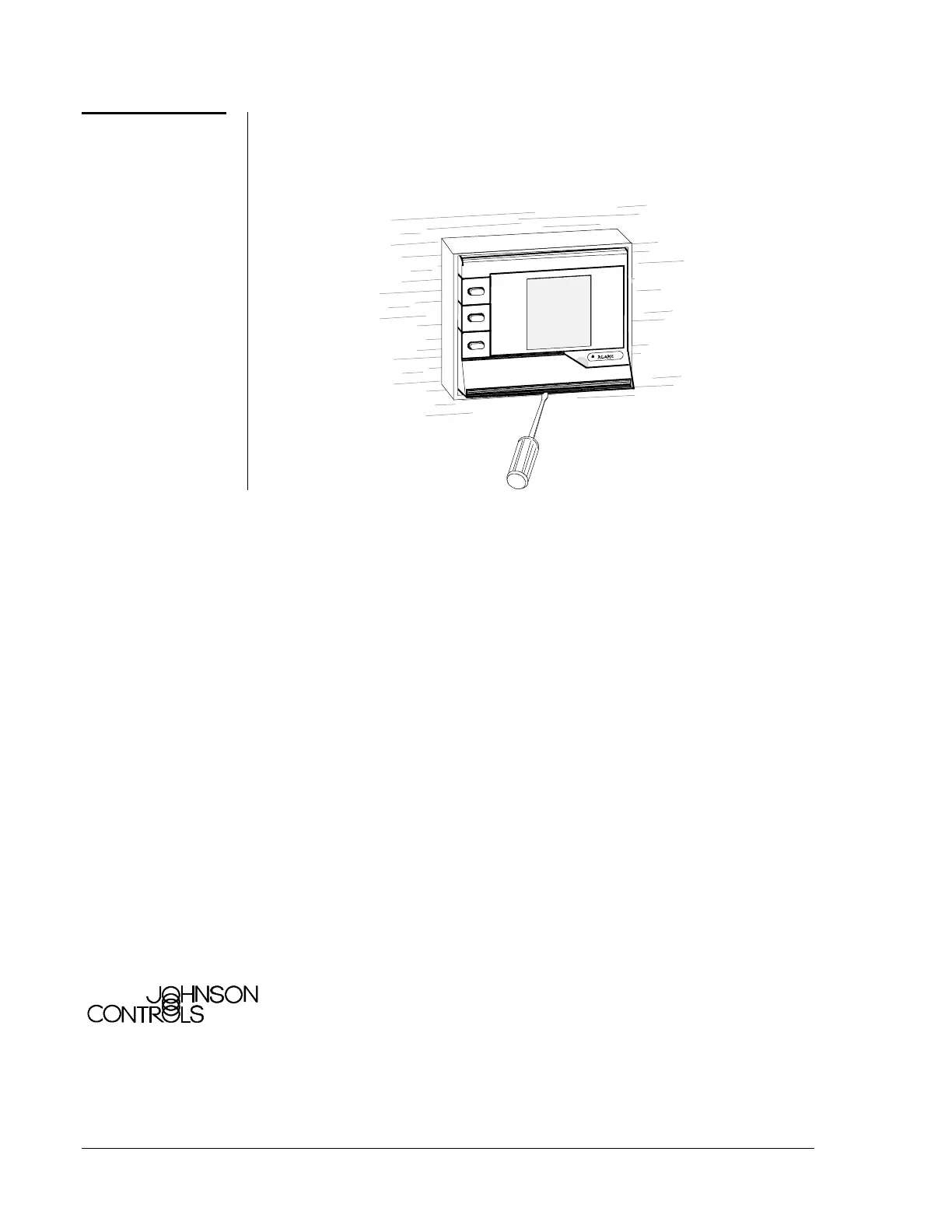

Figure 11: Removing Mounted ZT

Removing a

Mounted ZT

Controls Group

507 E. Michigan Street

P.O. Box 423 Issue Date 0495

Milwaukee, WI 53201 Printed in U.S.A
