Johnson Controls METASYS Series User Manual

Zone Terminal Installation Sheet 5
The Zone Terminal can be connected directly to a VAV/UNT through a
Zone Sensor without the use of the CBLCON-0 (Figure 4). This is a
portable application.
BINARY INANALOG INPUTS BINARY OUTPU TS ANA OUT
BINARY IN
ANALOG INPUTS
1 2 3 4 5 6 1 2 3 4
ANALOG INPUTS
COMMON
BINARY COM
+15VDC
C OM
PWR
IN
24V
AC
BINARY OUTPUT
24VAC TO LOADS
1 2 3 4 5 6 1 2
0-10VDC
ANALOG
OUTPUT
ANALOG
OUTPUT
COMMON
OFF
AS-UNT101-0
TE-6400
Zone Terminal
VAV/UNT
CONCT3J

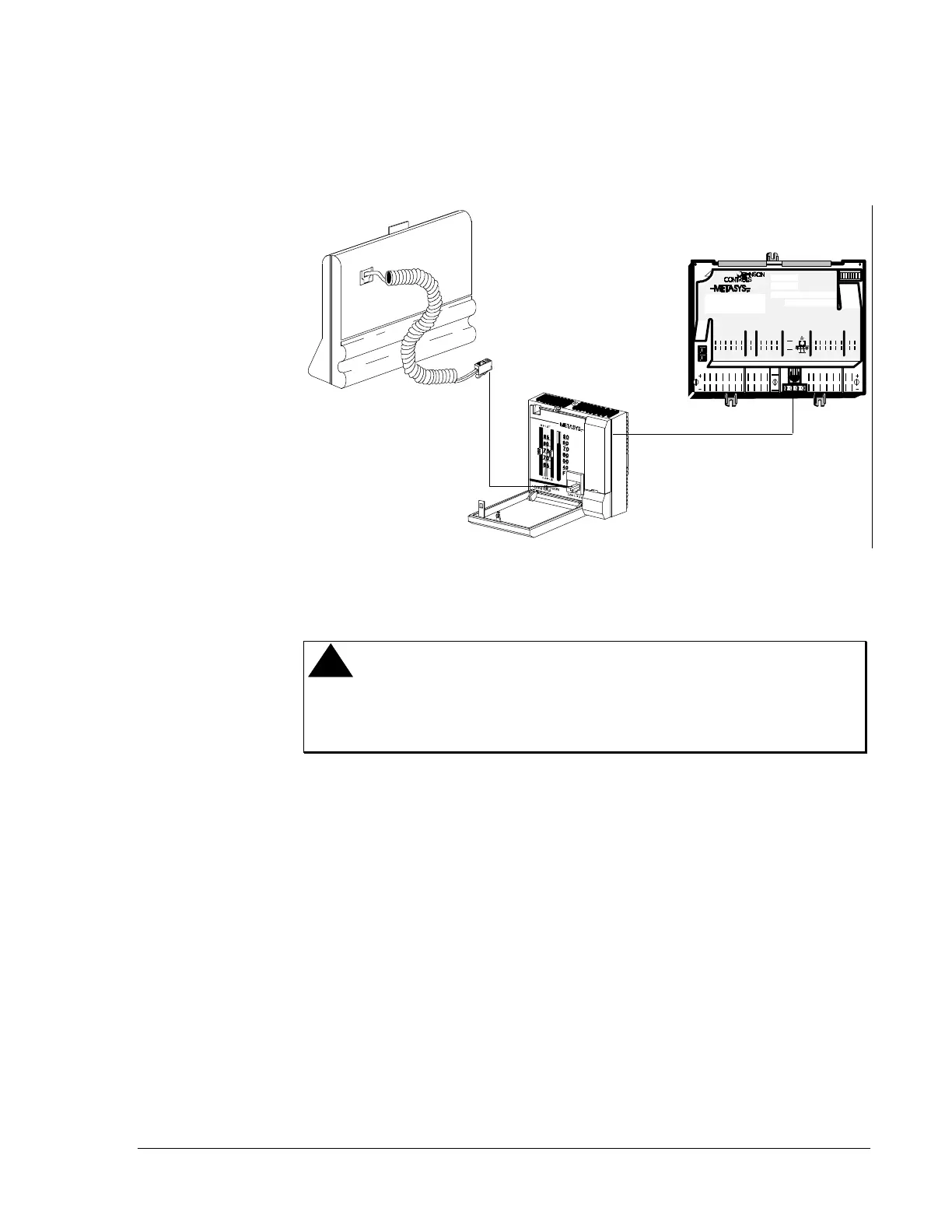

Figure 4: Remote Connect ZT to VAV/UNT through the
Zone Sensor
!
CAUTION: The ZT must be plugged into a 6-pin telephone-type
jack. Plugging the ZT into an 8-pin jack destroys the
8-pin receptacle and prevents the ZT from powering
up.
