Zone Terminal Installation Sheet 7
Attach the Enclosure Kit (ENC100-0) to a flat surface or wall for direct
connection of the ZT to an application specific controller. Pull wire
through before attaching standoffs and screws for the plastic base.
MT&BASE

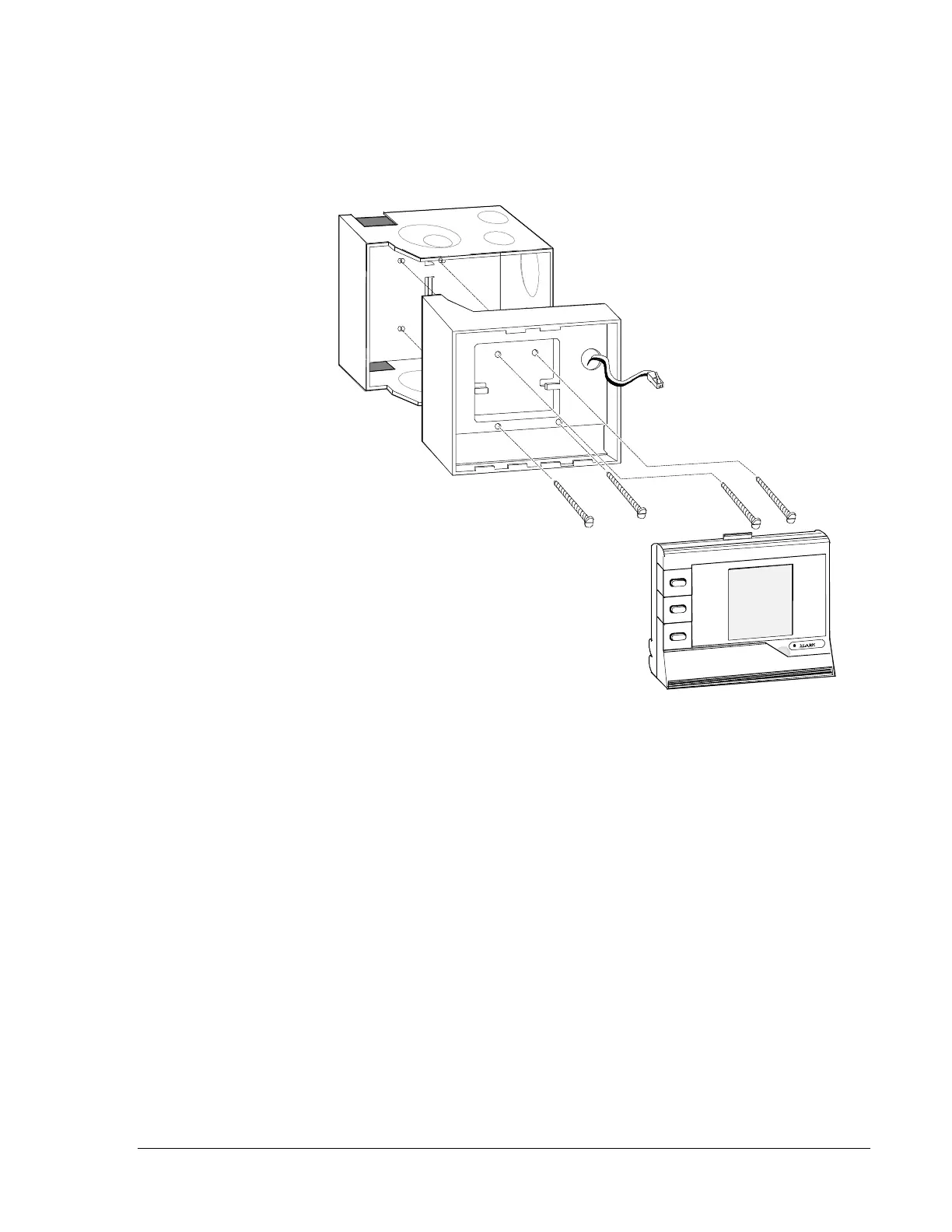

Figure 6: Attaching the Enclosure Kit and Utility Mounting Base
